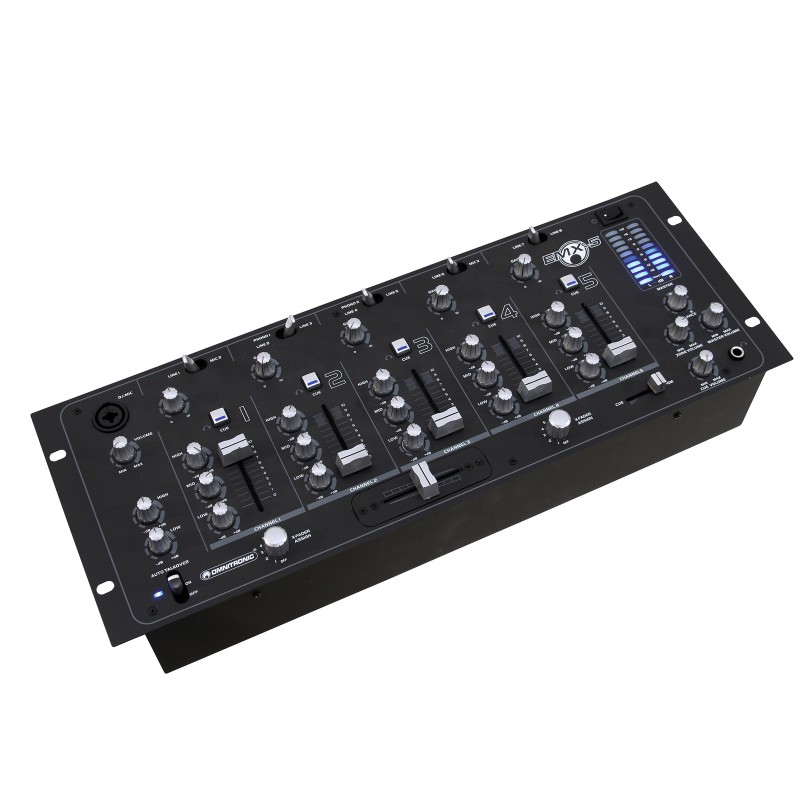

OMNITRONIC EMX-5 5-Channel Club Mixer

Codice: 10006770        codice Ean: 4026397340976        MARCA:  OMNITRONIC

Reliable mixer at a low priceThis 5 channel club mixer meets the expectations of a straightforward and reliable mixer. But in comparison to many competitors, it offers a clear price advantage with almost identical equipment and the same quality. The mixer's features are convincing: the 5 input channels are equipped with a gain, 3-band equalizer, a cue button and high-quality, smooth-running faders. In addition there is a microphone channel with talkover switch, volume control and 2-band equalizer. The mixer has a replaceable crossfader and a 10-digit LED level meter for the master output.

Low-price 5-channel club mixer

• 5 channels with gain control, 3-band equalizer, cue button and super-smooth channel faders
• 1 DJ microphone channel with talkover selector, level control and 2-band equalizer
• Pre-fader listening to all stereo input channels and the master output via adjustable stereo headphones output
• Replaceable crossfader for crossfading between input channels with assignment switches
• 10-digit stereo LED level meter, master level control, and balance level control
• Adjustable zone output, and record output, independent of the master
• Inputs: 6 x line (stereo RCA), 2 x phono/line (stereo RCA), switchable; 2 x microphone (6.3 mm jack), 1 x microphone (XLR/6.3 mm jack) and headphones (6.3 mm jack)
• Outputs: master (3-pin XLR, stereo RCA), zone and record (both stereo RCA)
• Operation via supplied power unit
• Rack installation, 4 U
• (19") 48.3 cm rack installation 4 U

Power supply:	100-240 V AC, 50/60 Hz 9 V DC 1 A
Power consumption:	30.00 W
Frequency range:	20 - 20000 Hz
S/N ratio:	>80 dB
THD:	<0.02 % at 1 kHz
Power connection:	Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
Impedance:	Input Microphone: 1 kOhm Input line: 27 kOhm Input phono: 47 kOhm
Gain:	Input: variable
Control elements:	Power switch, source selector, Crossfader, Crossfader selector switch, Talk over
Status LED:	Master level meter, CUE, Talk over
Connections:	Input: 1 x Microphone via 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: 2 x Microphone via 6.3 mm jack socket (mono) mounting version Input: 6 x line via stereo RCA Input: 2 x line/phono via stereo RCA Output: 2 x master via 3-pin XLR Output: 1 x master via stereo RCA Output: 1 x rec. via stereo RCA Output: 1 x zones via stereo RCA Output: 1 x headphones via 6.3 mm jack socket (stereo) mounting version
Chanals:	Microphon chanal: 1 x mono via 3-pin XLR/6.35mm jack (F) combination socket (mounting version), channel control via Rotary knob, 2-band tone control EQ, gain control, Talk over switch, Input chanel: 2 x mono + stereo with Mic-line switch via RCA or jack plug, channel control via fader, 3-band tone control EQ, gain control, CUE switch, Input chanel: 2 x stereo with Line-Line/Phono switch via RCA, channel control via fader, 3-band tone control EQ, gain control, CUE switch, Input chanel: 1 x stereo with Line-line switch via RCA, channel control via fader, 3-band tone control EQ, gain control, CUE switch, Master output: 1 x stereo via XLR or RCA, channel control via Rotary knob, balancecontrol, Zone output: 1 x stereo via RCA, channel control via Rotary knob, Cue-mix-function, Headphones output: 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary knob
Housing design:	(19") 48.3 cm rack installation 4 U
Dimension:	Width: 48.3 cm Depth: 17.9 cm Height: 8.9 cm
Weight:	3.70 kg

Audio - Audiomixer - Tabletop Mixer
Peso: 4.7
