ALUTRUSS SINGLELOCK POWER PSP-3000 QUICK-LOCK Pipe

Codice: 6021019A        codice Ean: 4026397489729        MARCA:  ALUTRUSS

SINGLELOCK PSP 1-point truss systemSINGLELOCK PSP is a 1-point truss system made of aluminum. The individual elements are connected via one cone, pivots and pins.The advantage of the conical connection system is that the cone completely fits into the main chord so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled.The main chord is made of 50 mm aluminum tube with 3 mm wall thickness and offers a good relation between strength and weight.SINGLELOCK PSP is a stable truss system for higher loads and extended durability. This system is mainly designed for intense use in stage installations, fair installations, event installations but also for permanent installations in discotheques and theatres.With SINGLELOCK SP, decorative frames with advertising signs, transmission canvas etc. can be realized.Please note: this truss system must never be combined with other systems!

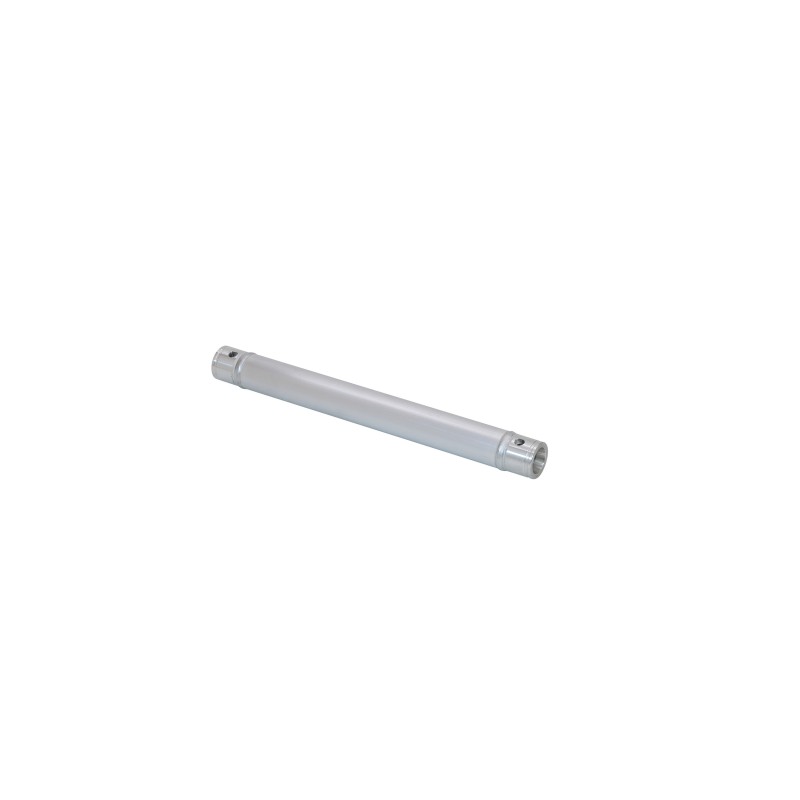

Single tube with quick-lock

• High-quality aluminum-tubes with 50 mm in diameter
• Easy installation
• Low weight
• For decoration or frame construction for projection foils
• 1 x Connection set included
• Trusspipe: 50 mm
• Made in Europe

Trusspipe:	50 mm x 3 mm
Welding technique:	TIG-welding
Welding material:	AlMg 5
Alloy:	AlMgSi 0.5
Color:	Alu colored
Dimension:	Length: 3000 mm
Weight:	3.95 kg

Hardware - Traversen - 1-Punkt-Systeme
Peso: 4.05
