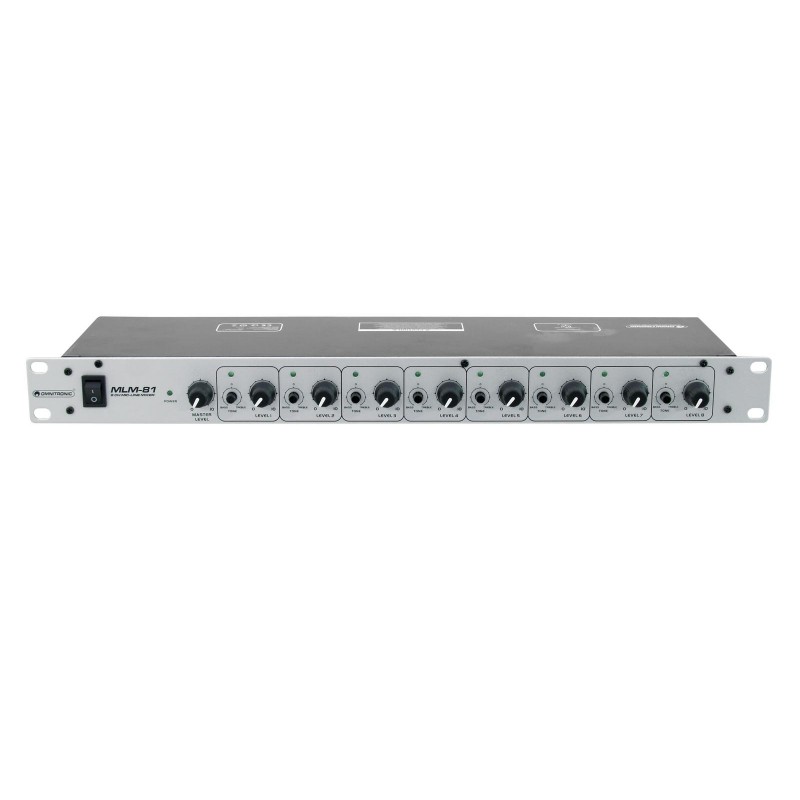

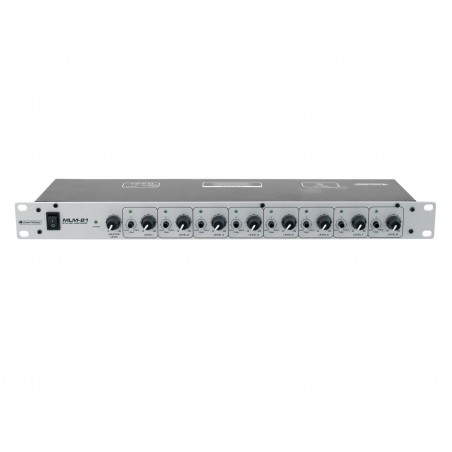

OMNITRONIC MLM-81 Microphone/Line Mixer

Codice: 10304150        codice Ean: 4026397295085        MARCA:  OMNITRONIC

OMNITRONIC MLM-81 mixes up to 8 mono input signals to one output. Via individual level and tone controls, the different sources can be controlled and perfectly dovetailed. The MLM-81 is not only suited for panel discussions or symposiums but for press conferences as well and - due to its compact design - occupies almost no space.

Microphone line mixer, 8 channels

• For mixing up to 8 mono input signals to 1 mono output
• 8 mic/line channels with separate level and tone controls and signal LEDs
• Each channel with balanced XLR mic input and unbalanced 6.3 mm jack (1/4") input
• Each mic input with optional 12 V phantom power via DIP switches
• Master level control; master out via balanced 6.3 mm jack (1/4")
• Feed-through output (independent of master control) for connecting a further MLM-81
• Each 6.3 mm line input can be separately converted to a line output via internal jumpers
• (19") 48.3 cm rack installation 1 U

Power supply:	230 V AC, 50 Hz
Power consumption:	10.00 W
Protection class:	Class I
S/N ratio:	>106 dB
THD:	<0.003 % at 1 kHz
Phantom power:	12 V DC
Power connection:	Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Impedance:	Input Microphone: 600 Ohm Input line: 18 kOhm Input AUX: 10 kOhm Output 51 Ohm
Gain:	Input: Microphone 69 dB Input: line 26 dB
Housing color:	Silver
Status LED:	Power, signal
Connections:	Input: 8 x Microphone via 3-pin XLR Input: 8 x line via 6.3 mm jack socket (mono) mounting version Input: 1 x AUX via RCA (f) mounting version Output: 1 x line via 6.3 mm jack socket (mono) mounting version Output: 1 x AUX via RCA (f) mounting version
Chanals:	Input chanel: 8 x mono via XLR or jack, channel control via Rotary knob, Tone control EQ Master output: 1 x mono via Plug 6,3mm/3,5mm (Jack), channel control via Rotary knob
Max. level:	Input: Microphone -23 dBV Input: line +22 dBV Output: +17 dBV
Housing design:	(19") 48.3 cm rack installation 1 U
Dimension:	Width: 48.3 cm Depth: 15.2 cm Height: 4.45 cm
Weight:	2.30 kg
