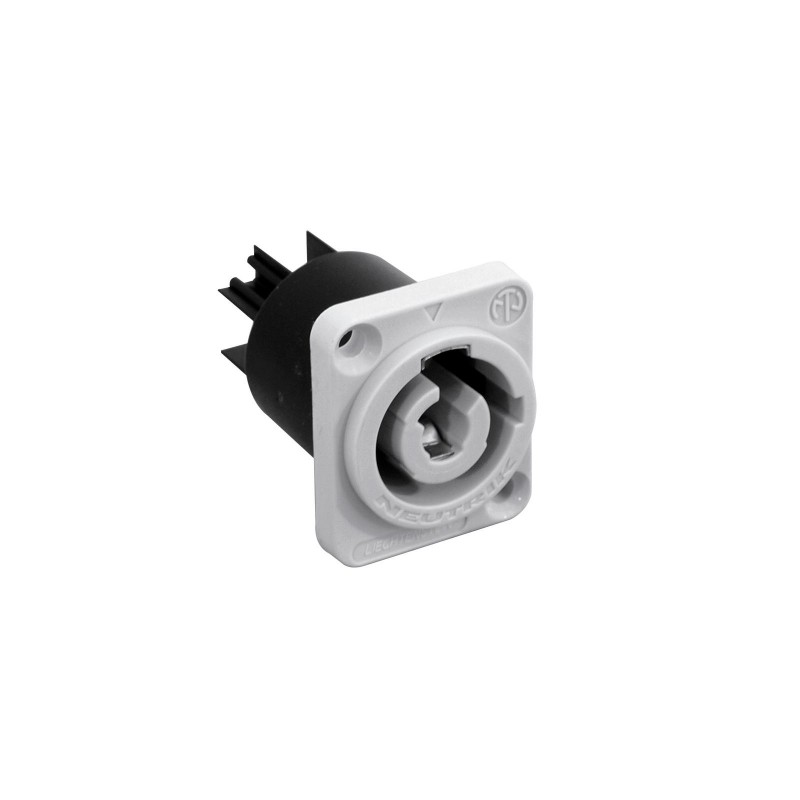

NEUTRIK PowerCon Mounting Connector gy NAC3MPB-1

Codice: 30208544        codice Ean: 4026397539653        MARCA:  NEUTRIK

Industrial plug / PowerCon3 conductor equipment AC connector with a fast and easy twist lock latching system and a current carrying capacity of up to 20A. Extremely robust and reliable, the PowerCon complies with all safety standards such as UL, VDE and SEV. The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live.

NEUTRIK chassis connector

• Premating safety ground
• Quicklock with securing lever
• Cable O.D. range: 5 - 15 mm
• With the two non-interchangeable types of connectors (A-type, B-type) it is impossible to produce a short circuit
• Appropriate plugs are identified by mechanical keyways and by color
• Made in Europe

IP classification:	IP20
Connector type:	PowerCON (gray)
Shape:	Mounting version
Connections:	Via solder tail
Use of brands:	Built with NEUTRIK connector
Weight:	0.01 kg

Hardware - Strom - Steckverbindungen
Peso: 0.01
