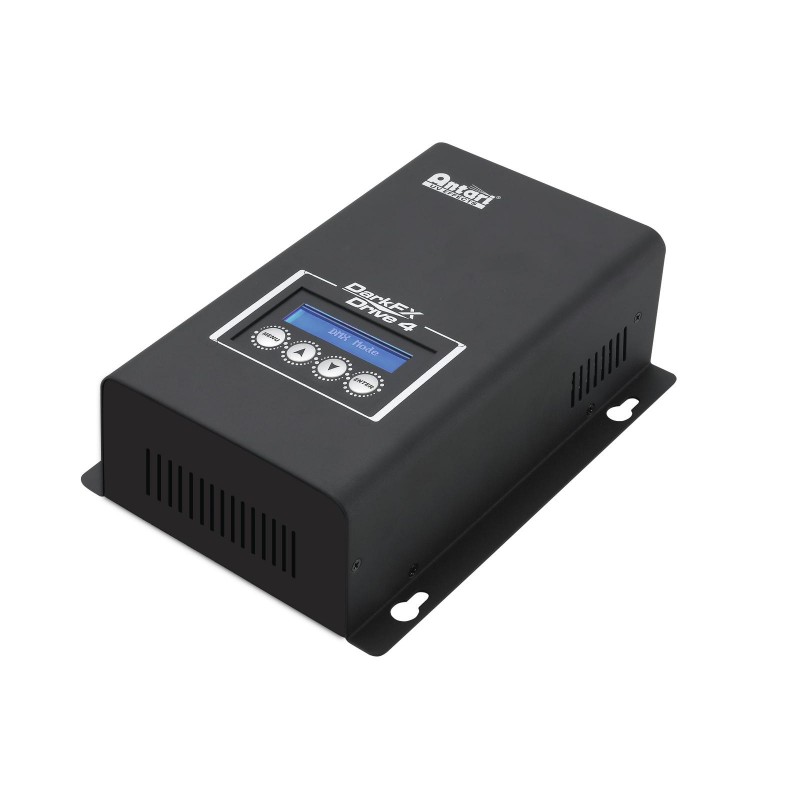

ANTARI DarkFX Drive 4

Codice: 51100818        codice Ean: 4719850658052        MARCA:  ANTARI

The Antari DarkFX Drive 4 is a compact driver exclusively designed for the Antari DarkFX high-power UV fixtures. Equipped with 4 bare wire terminal blocks for up to 4 fixtures, it can be used to adjust dimmer brightness and strobe speed.The DarkFX Drive 4 is operated in one of two modes: Either in DMX mode with 2 channels via the 5-pin XLR connectors or in stand-alone mode via the LCD display and the 4 operating buttons. Use the powerCON input to connect it to the mains.

DMX control for a total of 4 Antari DarkFX Strips or DarkFX Spots

• For DarkFX Strip 510 and DarkFX Spot 510 IP
• 0-20 Hz strobe effect
• Variable dimming curve modes
• Terminal blocks support four fixtures
• Addressing and setting via control panel with LCD
• PowerCon input and output
• Can be operated in 2 CH mode
• The device is cooled by passive cooling by convection
• Controlling by Stand-alone; DMX

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	75 W
IP classification:	IP20
Power output:	1 x PowerCON (gray)
DMX channels:	2
DMX input:	1 x 5-pin XLR (M) mounting version
DMX output:	1 x 5-pin XLR (F) mounting version
Power connection:	Mains input PowerCON (blue), mounting version Power supply cord with safety plug (provided)
Cooling:	Passive cooling by convection
Control:	Stand-alone; DMX
Housing color:	Black
Material:	Metal
Dimension:	Width: 13.5 cm Depth: 21.6 cm Height: 7.2 cm
Weight:	1.81 kg
