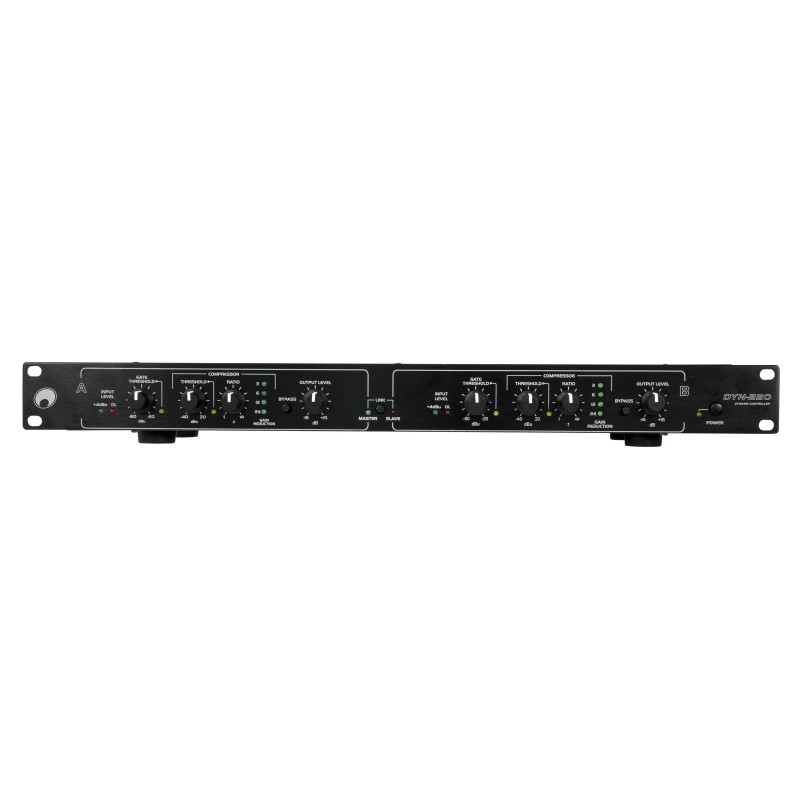

OMNITRONIC DYN-220 Compressor/Limiter
Codice: 10355591        codice Ean: 4026397522846        MARCA:  OMNITRONIC



2-channel compressor/limiter with noise gate

  • Threshold, ratio and output level control per channel
  • Variable gate with threshold control per channel
  • Bypass switch allows instant comparison of original sound with processed sound
  • Precise 4-digit LED gain reduction meters
  • +4 dB/-10 dB selector switch for internal level adjustment
  • Inputs and outputs via balanced XLR connectors and 6.3 mm jacks
  • Rack installation, 1 U
  • (19") 48.3 cm rack installation 1 U


Power supply:230 V AC, 50 Hz
Power consumption:20 W
Frequency range:20 - 20000 Hz
S/N ratio:>90 dB
THD:<0.05 % at 1 kHz
Power connection:Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Impedance:Input 20 kOhm , bal.
Input 10 kOhm , unbal.
Output 300 Ohm , unbal.
Output 150 Ohm , bal.
Parameter:Gate threshold: -80 to +20 dBu, arbitrary
Compressor threshold: -40 to +20 dBu, arbitrary
Compressor ratio: to 1:1 bis ?:1, arbitrary
Crosstalk:>80 dB
Status LED:Gain-reduction-VU-meter
Connections:Input: 2 x line via 3-pin XLR
Input: 2 x line via 6.3 mm jack socket (mono) mounting version
Output: 2 x line via 3-pin XLR
Output: 2 x line via 6.3 mm jack socket (mono) mounting version
Housing design:(19") 48.3 cm rack installation 1 U
Dimension:Width: 48.3 cm
Depth: 15.4 cm
Height: 4.45 cm
Weight:1.91 kg
