OMNITRONIC RRM-502 5-channel rotary mixer

533,99 €

Tasse escluse

Sconti sul volume

Quantità	Prezzo unitario	Salva
3	533,99 €	96,12 €

Quantità

Disponibile

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Descrizione
Dettagli del prodotto

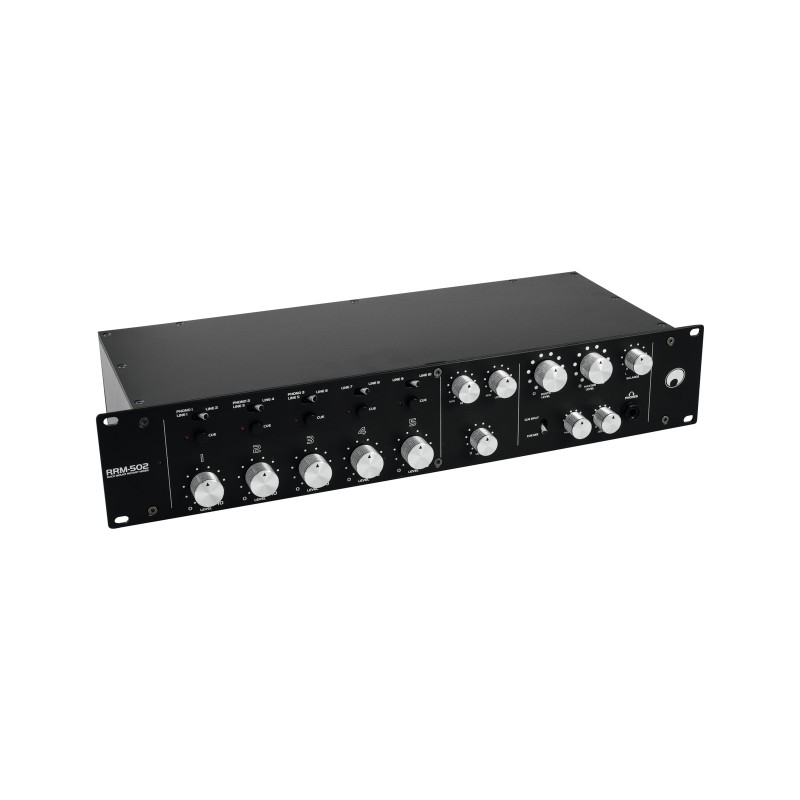

OMNITRONIC RRM-502 5-channel rotary mixer

Codice: 10355925 codice Ean: 4026397566017 MARCA: OMNITRONIC

5-channel rotary mixer for DJs

Classic rotary mixer with 5 input channels for DJs
Vintage ALPS potentiometers (Blue Velvet RK27)
High-grade components ensure long life and excellent sound quality
Gain control, cue button and source selector per channel
10 line inputs, 3 of which switchable phono/line
DJ microphone channel with separate level control and 2-band EQ
Prefader listening to input channels and the master output via adjustable headphones output, with cue mix/split function
Master, booth and balance control
Record output, switchable pre/post
FX send/return for external FX unit
Rack installation, 2 U
(19") 48.3 cm rack installation 2 U

Power supply:	230 V AC, 50 Hz
Power consumption:	15 W
Protection class:	Class I
Fuse:	Device fuse 5 x 20 mm, T 0.5 A Fuse replaceable
Frequency range:	Microphone 20 - 20000 Hz Line 20 - 20000 Hz Phono 40 - 18000 Hz
S/N ratio:	>78 dB phono >80.5 dB Microphone >89 dB line
THD:	Line <0.02 % at 1 kHz Phono <0.1 % at 1 kHz
Power connection:	Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Gain:	Input: line 20 dB Input: phono 75 dB Input: Microphone 44 dB
Control elements:	Cue mix split function, Crossfader
Status LED:	Power, CUE
Connections:	Input: 7 x line via stereo RCA Input: 3 x line/phono via stereo RCA Input: 1 x Microphone via 6.3 mm jack socket (mono) mounting version Insert: 2 x master via stereo RCA Output: 2 x master via 3-pin XLR Output: 1 x master via stereo RCA Output: 2 x booth via 3-pin XLR Output: 1 x booth via stereo RCA Output: 1 x rec. via stereo RCA Link: 1 x line via stereo RCA
Chanals:	Input chanel: 3 x stereo with Line-Line/Phono switch via RCA, channel control via Rotary knob, 2-band tone control EQ, gain control, CUE switch, Input chanel: 2 x stereo with Line-line switch via RCA, channel control via Rotary knob, CUE switch, Microphon chanal: 1 x mono via Plug 6,3mm/3,5mm (Jack), channel control via Rotary knob, balancecontrol, Master output: 1 x stereo via XLR or RCA, channel control via Rotary knob, balancecontrol, Booth output: 1 x stereo via XLR or RCA, channel control via Rotary knob, Cue mix split function, Headphones output: 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary knob, pre-post switch, Rec. output: 1 x stereo via RCA
Max. level:	Output: +22 dBu
Housing design:	(19") 48.3 cm rack installation 2 U
Dimension:	Width: 48.3 cm Depth: 20 cm Height: 8.9 cm
Weight:	4.73 kg
