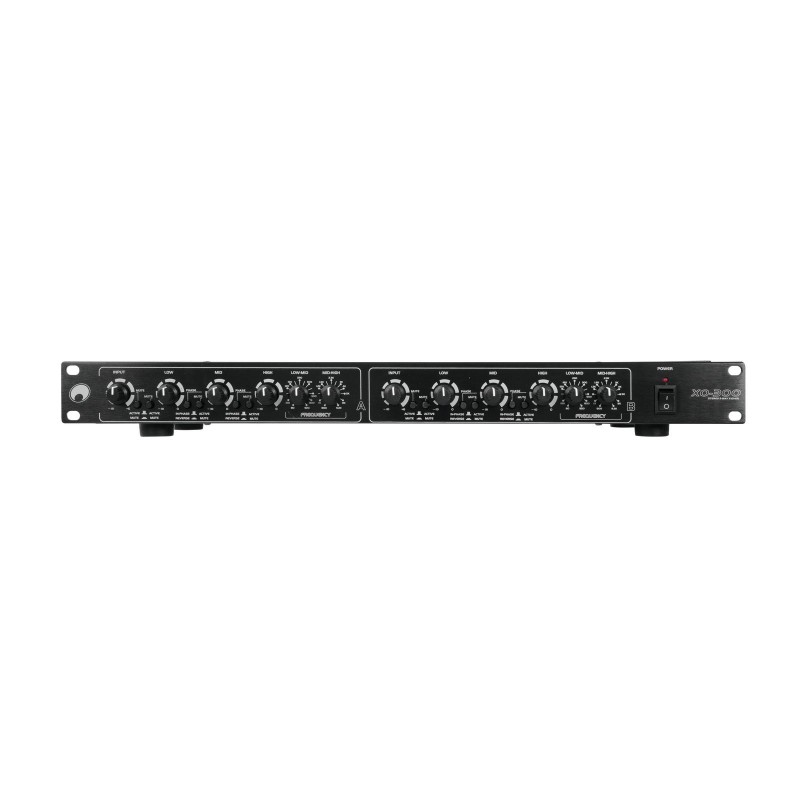

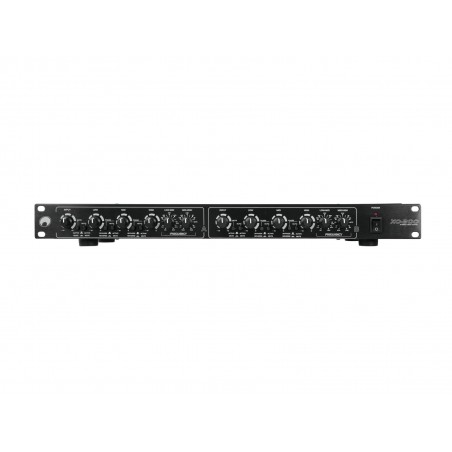

OMNITRONIC XO-300 Active Crossover
Codice: 10355636        codice Ean: 4026397522839        MARCA:  OMNITRONIC



Active crossover, stereo 3-way operation

  • 3-way stereo operation
  • Variable 24 dB per octave Linkwitz-Riley filters
  • Individual output level controls for each frequency range
  • Continuously adjustable crossover frequencies low/mid and mid/high
  • Individual muting for input signal and each frequency range
  • CD horn EQ for smoother treble selectable
  • Switchable low and mid phase
  • Input level adjustable
  • Balanced XLR inputs and outputs
  • (19") 48.3 cm rack installation 1 U


Power supply:230 V AC, 50 Hz
Power consumption:14 W
S/N ratio:>100 dB
THD:<0.05 % at 1 kHz
Power connection:Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Crossover frequency:Mid/high 800-9200 Hz, 24db/oct , Linkwitz-Riley
Low/mid 80-920 Hz, 24db/oct , Linkwitz-Riley
Impedance:Input 50 kOhm , bal.
Input 25 kOhm , unbal.
Output 200 Ohm , bal.
Output 100 Ohm , unbal.
Gain:Input: - ? to + 6 dB
Output: - ? to + 0 dB
Phase invert:Mid/high output, switchable
Operation modes:3-way stereo
Crosstalk:>80 dB
Connections:Input: 2 x line via 3-pin XLR
Output: 6 x line via 3-pin XLR
Max. level:Input: +22 dBu
Output: +22 dBu
Housing design:(19") 48.3 cm rack installation 1 U
Dimension:Width: 48.3 cm
Depth: 18.7 cm
Height: 4.45 cm
Weight:2.37 kg
