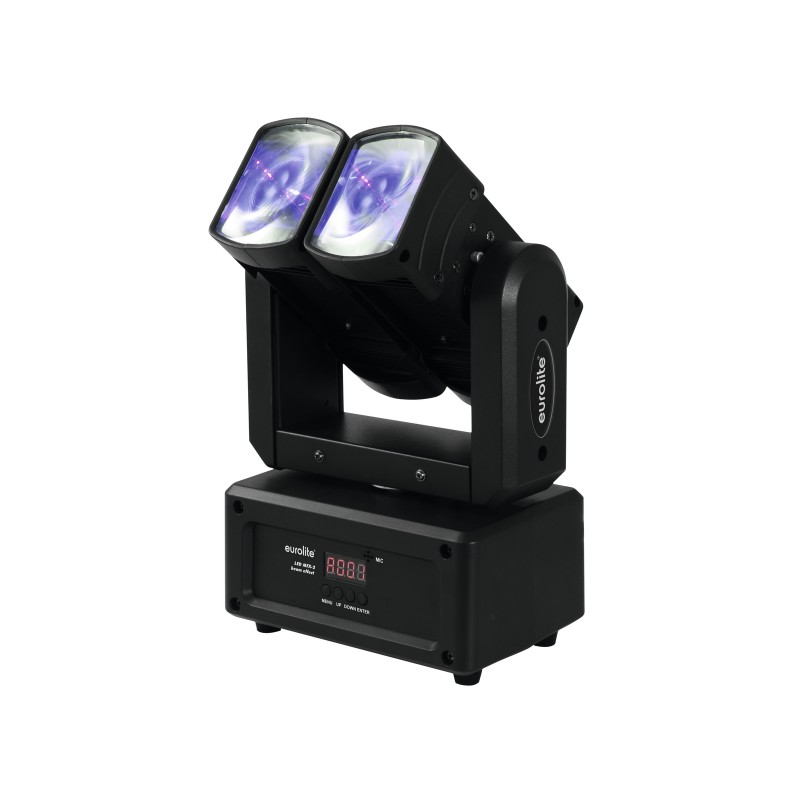

EUROLITE LED MFX-2 Beam Effect

Codice: 50944302        codice Ean: 4026397571486        MARCA:  EUROLITE

High LED power with unlimited rotationThe LED MFX-2 Beam Effect by Eurolite is a compact RGBW beam effect with 2 ultra-fast moving heads with unlimited pan and tilt rotation and precise 16-bit resolution for a thrilling light show. Both heads are individually controllable and fitted with powerful 10-watt LEDs that will bring you brilliant, razor sharp beams of light with a narrow 2° beam angle. The 4in1 quad-color technology (red, green blue and white) enables particularly homogeneous color mixtures.The LED MFX-2 can be controlled in one of two DMX modes or via external sound sources, offers 4 automated programs, dimming and strobe effects and can be operated as stand-alone, master or slave device. The LED display with four operating buttons makes for easy configuration.The MFX-2 is cooled by a particularly silent fan and features 3-pin DMX connectors and an IEC connector for power supply. It can be operated with voltages between 100 and 240 volts and weighs only around 3 kg.

Small Moving Effect with 2 LED heads and 4 beams with unlimited PAN/TILT

• With Infinity function for unlimited PAN and TILT movement
• TILT movement for each LED head separately and steplessly adjustable
• Equipped with four 10 W quadcolor LEDs with RGBW colors
• Narrow beam angle
• Compact lightweight
• Functions: Colored beams in R, G, B and W, auto mode, color presets, Master/Slave function, built-in programs
• Stepless RGBW color mixture
• Dimmer
• Strobe effect with adjustable speed
• Random strobe effect
• Exact positioning via 16 bit PAN/TILT movement resolution
• DMX-controlled operation or stand-alone operation with Master/Slave function
• Addressing via control panel with 4-digit LED display
• Switch-mode power supply for operation between 100 and 240 volts
• Feed-through output allows to power up to 8 devices
• Ready for connection with power cord and safety plug
• LED: 4 x high-power 10 W 4in1 QCL RGBW
• Can be operated in 21; 28 CH mode
• The device is cooled by cooling fan
• Controlling by Stand-alone; DMX; Sound to light via Microphone
• Is in EUROLITE LED PC-Control 512 software already preprogrammed
• Flicker-free projection
• Effect: Multi beam effect

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	55 W
IP classification:	IP20
Power output:	1 x IEC connector (F) mounting version
Lamp type:	LED lamp
LED:	4 x high-power 10 W 4in1 QCL RGBW
Max. TILT movement:	Exact positioning (16 bit resolution) plus infinity
Max. PAN movement:	Exact positioning (16 bit resolution) plus infinity
Flash rate:	0 - 18 Hz
DMX channels:	21; 28
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Power connection:	Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Cooling:	Cooling fan
Control:	Stand-alone; DMX; Sound to light via Microphone; EUROLITE LED PC-Control 512 software
Beam angle:	2°
Beam angle (1/2 peak):	2°
Illuminance in Lux (lx):	R red 3m: 913 lx, 6m: 182 lx G green 3m: 915 lx, 6m: 228 lx B blue 3m: 252 lx, 6m: 63 lx CW 3m: 936 lx, 6m: 232 lx
Housing color:	Black
Dimension:	Width: 12 cm Depth: 19.6 cm Height: 35 cm
Weight:	3.10 kg
Legal specifications
Ecodesign regulation:	Yes
Special product:	Not designed for household room illumination
Purpose:	Show effect lighting

Licht - Lichteffekte - Strahleneffekte
Peso: 3.6
