EUROLITE LED Strip RGBW 4-Channel DMX Controller

39,99 €

Tasse escluse

Sconti sul volume

Quantità	Prezzo unitario	Salva
3	39,99 €	7,20 €

Quantità

Disponibile

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

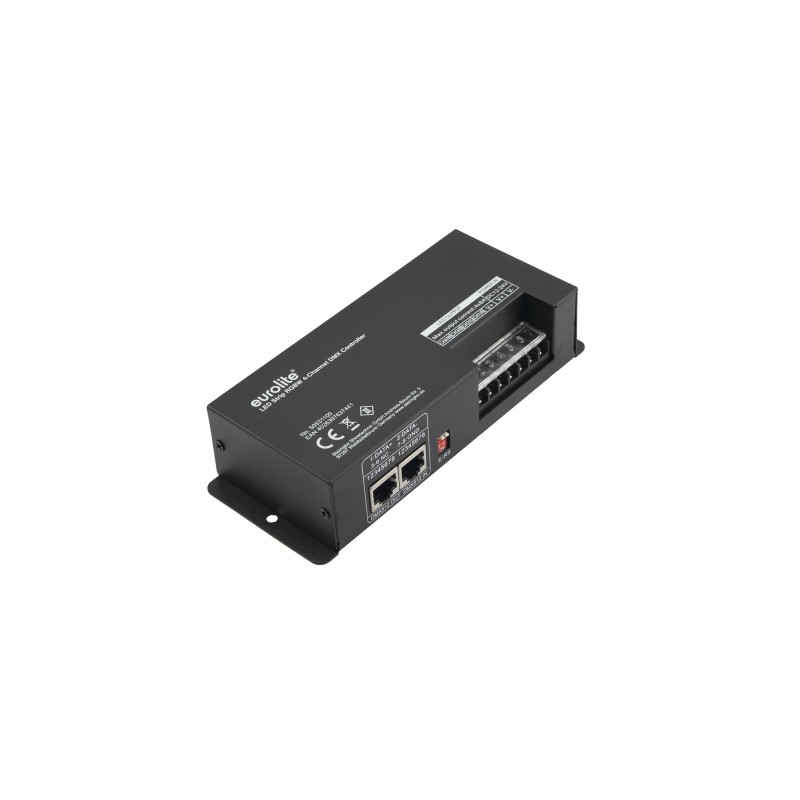

EUROLITE LED Strip RGBW 4-Channel DMX Controller

Codice: 50531100 codice Ean: 4026397637441 MARCA: EUROLITE

4-channel LED controller with DMX interface for RGB LEDs 12-24 V

Compact LED controller for controlling RGB LEDs (12-24 V) via DMX
Converts standard DMX512 signals to PWM signals e.g. for driving LED strips
4 separate control channels for individual color mixing of red, green, blue and white LEDs
Built-in programs enable stand-alone operation (individual color selection, color change, color fade, running speed)
DMX addressing and settings via DIP switches
Switchable termination resistor
Plug-in screw terminals for connecting the LEDs and the power supply
RJ45 jacks for serial connection
Rugged black metal housing
Can be operated in 4 CH mode

Power supply:	12/24V DC
Power consumption:	Max. 384 W 12 V DC Max. 768 W 24 V DC Max. 96 W 12 V DC per channal Max. 192 W 24 V DC per channal
Output current:	Max. 4 x 8 A per channal
Power output:	Screw terminal
DMX channels:	4
DMX input:	Screw terminal 1 x RJ45 (F) mounting version
Power connection:	Screw terminal
Dimension:	Length: 16.4 cm Width: 6.6 cm Height: 3.8 cm
Weight:	0.30 kg
Legal specifications
Ecodesign regulation:	Yes
