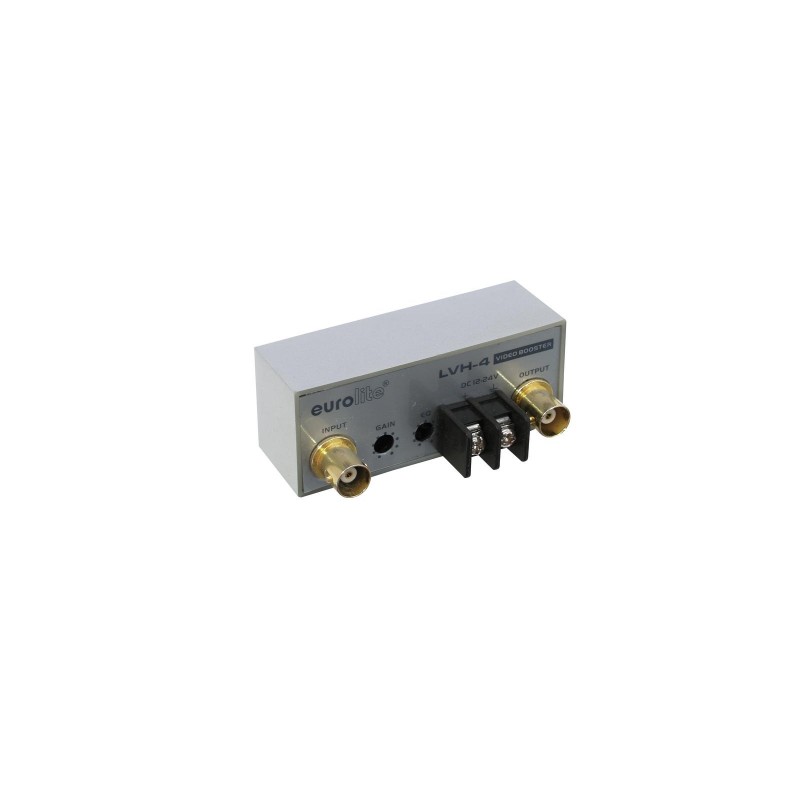

EUROLITE LVH-4 Video booster

Codice: 81013204        codice Ean: 4026397324815        MARCA:  EUROLITE

The Video Booster amplifies your signal to keep the quality high even over long distances of up to 600 meters. Of course, it can also be used to amplify a naturally weak signal to reach the desired quality standard. All this comes in an extremely compact design.

Video line amplifier with equalizer

• Equalizes and compensates for signal losses inherent in long cable runs (max. 600 m)
• 75 ohms input and outputs via BNC plugs
• Separate controls for amplification and equalization
• 12-24 V AC/DC power supply via signal source or external source (not included)
• Ultra compact

Power supply:	12-24 V DC 30 mA 12-24 V AC 30 mA
S/N ratio:	>70 dB
Dimension:	Width: 7.6 cm Depth: 4.1 cm Height: 3.1 cm
Weight:	0.07 kg
1 x video input:	1 Vpp/ 75 ohms, BNC
1 x video output:	1 Vpp/ 75 ohms, BNC
Gain:	adjustable to +5 dB
Bandwidth:	10 MHz
Equalization adjustment:	0 dB to +4 dB/ 3.58 MHz
	0 dB to +7 dB/ 5 MHz

Hardware - Videoprojektion - Video-Steuerungen
Peso: 0.09
