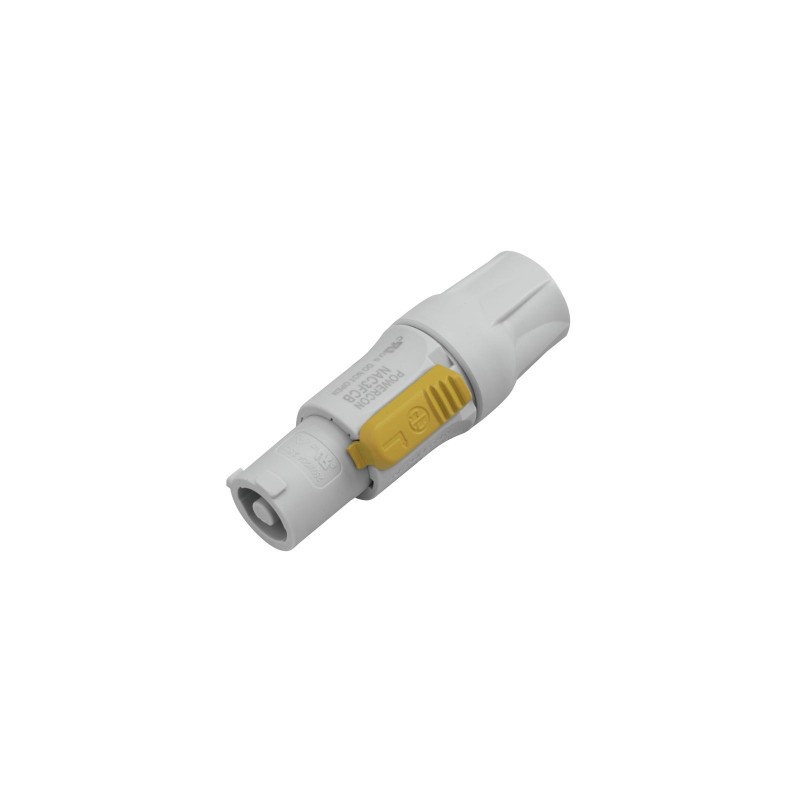

NEUTRIK PowerCon Cable Plug gy NAC3FCB

Codice: 30208541        codice Ean: 7613187002328        MARCA:  NEUTRIK

Industrial plug / PowerCon3 conductor equipment AC connector with a fast and easy twist lock latching system and a current carrying capacity of up to 20A. Extremely robust and reliable, the PowerCon complies with all safety standards such as UL, VDE and SEV. The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live.

Cable plug

• Premating safety ground
• Quicklock with securing lever
• Cable O.D. range: 5 - 15 mm
• With the two non-interchangeable types of connectors (A-type, B-type) it is impossible to produce a short circuit
• Appropriate plugs are identified by mechanical keyways and by color

IP classification:	IP20
Connector type:	PowerCON (gray)
Shape:	Plug for cable
Connections:	Via screw terminal
Use of brands:	Built with NEUTRIK connector
Weight:	0.04 kg

Hardware - Strom - Steckverbindungen
Peso: 0.04
