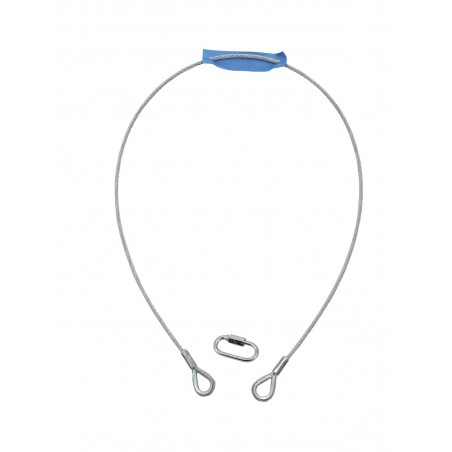

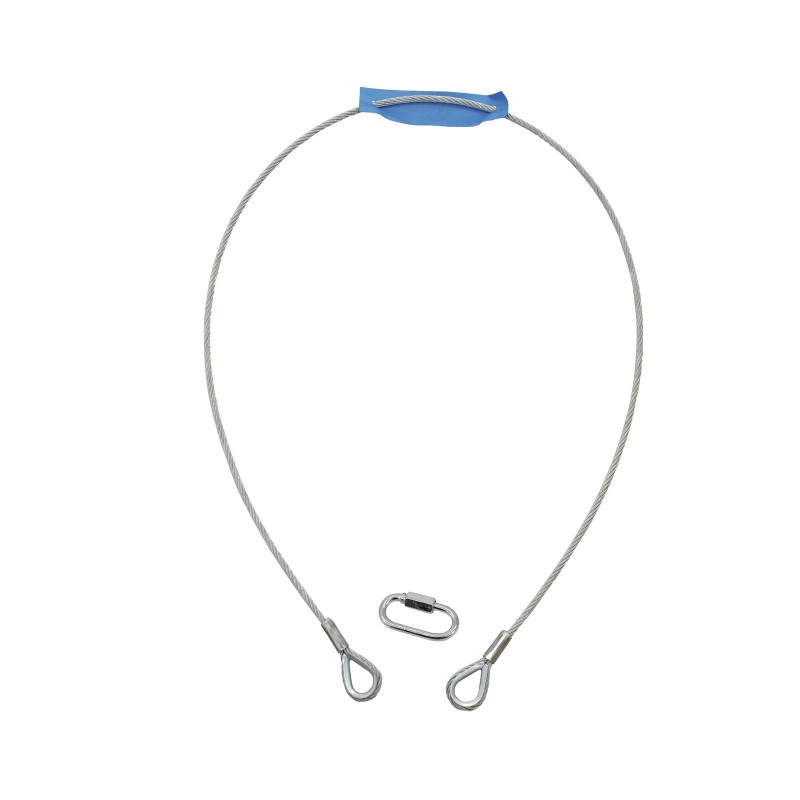

58010320 / EUROLITE Safety Bond A 4x1000mm up to 15kg silver

Codice: 58010320        codice Ean:         MARCA:  EUROLITE

EUROLITE Safety bondsThe EUROLITE safety bonds comply with the current regulation of the German professional insurance association as summed up in BGI 810-3:2007-03 Loads above persons. The safety bonds are constructed in accordance with the European standards DIN EN 12385-4:2008-06 and DIN 56927:2009-03.The safety bonds are tested by the LGA, an independent and accredited testing institute. The breaking load testified by the LGA is documented in the test report according to DIN EN 10204 required by the German professional insurance association.Clearly, every user can secure loads above persons with these safety bonds in all areas where the BGV C1 is required.

Approved safety rope

• Rope with thimble and connector

5801048G EUROLITE Steel Rope 1000x4mm silver with Thimble

Installation rope, safety bond, safety

• Round strand rope 6 x 19 with fibre core
• With two thimbles
• Suitable for installing and securing loads above persons
• 4 x 1000 mm
• WLL 175 kg
• Test report according to DIN EN 10204 as download
• Rope with thimble

50301644 EUROLITE Quick Link Type A-90

Quick link

• Form A (short)
• Galvanized
• Identification number: 90
• Stamp: DIN 56927 A 90
• Test report according to DIN EN 10204 as download

Secured weight (BGV C1):	Max. 15 kg
Temperature range:	-40 °C - +100 °C
Weight:	0.09 kg
5801048G EUROLITE Steel Rope 1000x4mm silver with Thimble
Maximum load WLL (5-fold):	175 kg
Design of the core:	6 x 19 FC
Strength classification:	1960
Standard:	DIN EN 12385-4:2008-06, DIN 56927:2009-03
Nominal tensile strenght of rope:	1770 N/mm²
Wire surface:	Zinc-plated
Color:	Silver
Temperature range:	-40 °C - +100 °C
Dimension:	Length: 100 cm
Dimension:	Diameter: Ø 4 mm
Weight:	0.08 kg
Length weigth:	0.0554 kg/m
50301644 EUROLITE Quick Link Type A-90
Maximum load WLL (5-fold):	180 kg
Standard:	DIN 56927:2009-03,
Shape:	A - small opening
Opening:	0-5.5 mm
Dimension:	Length: 31 mm Width: 41 mm Depth: 22 mm Diameter: Ø 4 mm
Weight:	0.01 kg
