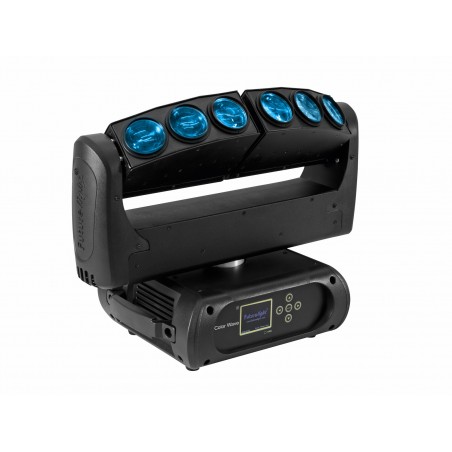

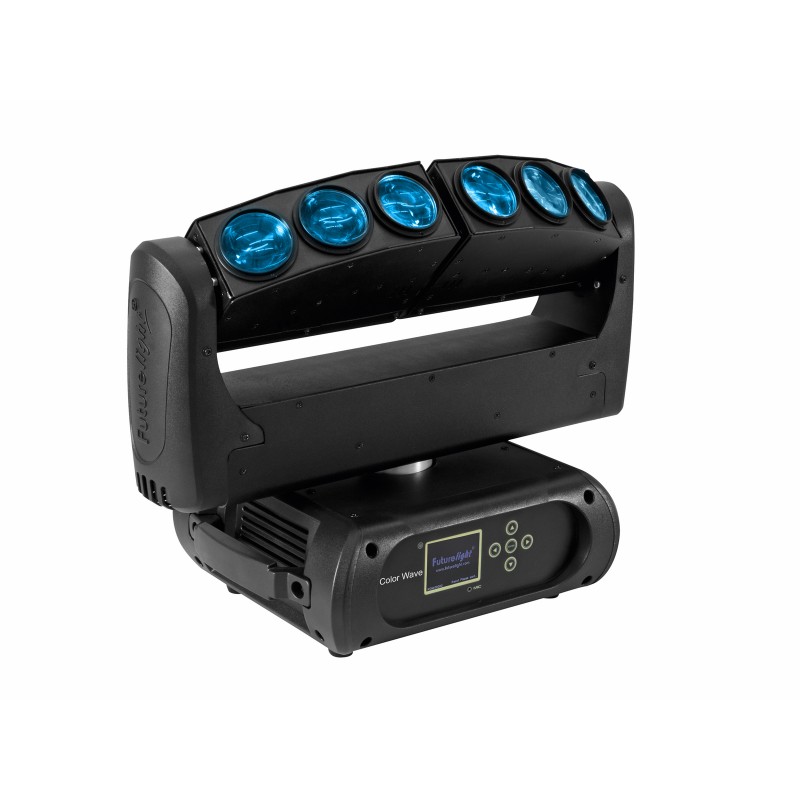

Moving Head with two tiltable LED bars and colorful beams
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 120 W |
| IP classification: | IP20 |
| Power output: | 1 x PowerCON (gray), mounting version |
| Lamp type: | LED lamp |
| LED: | 6 x high-power 10 W 4in1 QCL RGBW |
| Max. TILT movement: | Exact positioning (16 bit resolution) 240° Auto position correction (feedback) |
| Max. PAN movement: | Exact positioning (16 bit resolution) 540° Positioning switchable to 630° Auto position correction (feedback) |
| Flash rate: | 0 - 20 Hz |
| DMX channels: | 18; 17 |
| DMX input: | 1 x 3-pin XLR (M) mounting version 1 x 5-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version 1 x 5-pin XLR (F) mounting version |
| Power connection: | Mains input PowerCON (blue), mounting version Power supply cord with safety plug (provided) |
| Cooling: | Temperature-controlled fan |
| Control: | RDM; DMX; Stand-alone; W-DMX by wireless solution built-in; Sound to light via Microphone; EUROLITE LED PC-Control 512 software |
| Beam angle: | 2.5° |
| Beam angle (1/2 peak): | 2.5° |
| Illuminance in Lux (lx): | R red 3m: 1713 lx, 6m: 655 lx G green 3m: 2074 lx, 6m: 868 lx B blue 3m: 861 lx, 6m: 217 lx CW 3m: 4037 lx, 6m: 452 lx |
| Housing color: | Black |
| Dimension: | Width: 46.8 cm Depth: 25 cm Height: 32.5 cm |
| Weight: | 10.30 kg |
| Legal specifications | |
| Ecodesign regulation: | Yes |
| Special product: | Not designed for household room illumination |
| Purpose: | Show effect lighting |
