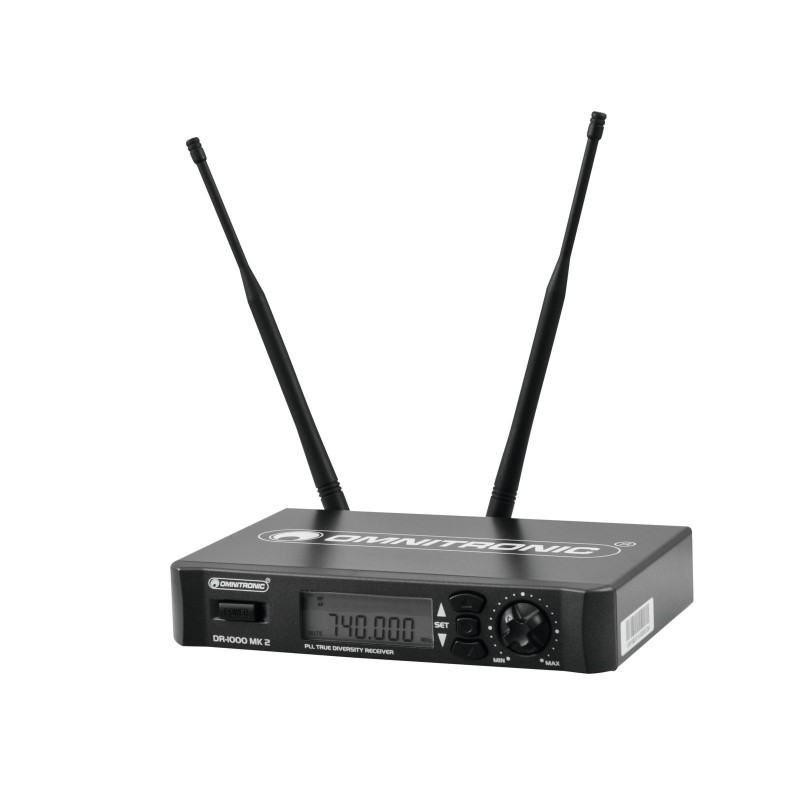

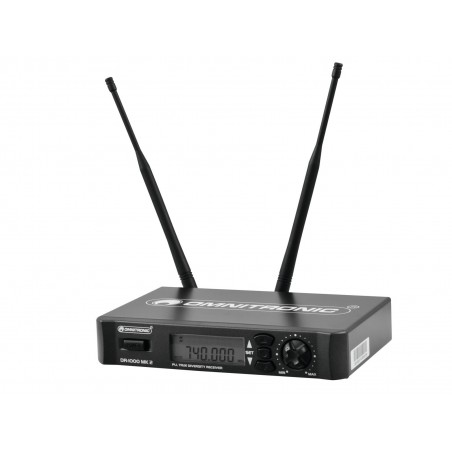

OMNITRONIC DR-1000 MK2 Wireless Receiver

Codice: 13061092        codice Ean: 4026397415339        MARCA:  OMNITRONIC

A variety of options with multi-frequency wireless systemsWith the new 1000 series, OMNITRONIC offers future proof microphones in the frequency range UHF 740-764 MHz. Due to the high number of switchable frequencies (192), up to 16 intermodulation free wireless systems can be operated at once. This enables a variety of combinations between several receivers, hand-held microphones, bodypacks with singer headset or moderator headset or lavalier microphone.

Multifrequency wireless receiver, True Diversity

• Multifrequency wireless receiver with UHF pilot tone technology (PLL)
• High-quality true diversity reception
• Two removable antennas (BNC connection)
• Operation in the low-interference UHF band (740-764 MHz)
• 192 carrier frequencies switchable in 125 kHz steps (40 frequencies per MHz)
• System expandable to up to 16 receivers with 16 microphones
• LCD for battery status of the transmitter, antenna A/B, RF reception level, AF audio level and frequency
• Automatic frequency scan
• Output level control
• Lock function avoids undesired changes by users, also accidental shutdown
• Mute mode when signal is absent or too weak
• 6.3 mm and XLR output
• Operation via supplied power unit
• Rugged metal housing
• Optional mounting frame for rack installation available
• Optional antenna boosters and antenna distributor for easy setup of several receivers
• Optional hand-held microphone, pocket transmitter, lavalier microphone and headset available
• License required in Germany
• Use a operating range up to 100m with line of sight
• Desktop console housing; (19") 48.3 cm rack installation (provided)

Type:	Receiver
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	6.00 W
Number of channels:	1
Frequency range:	40 - 18000 Hz
S/N ratio:	>105 dB
THD:	<0.6 % at 1 kHz
Power connection:	Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
Connections:	Output: 1 x Microphone via 3-pin XLR Output: 1 x Microphone via 6.3 mm jack socket (stereo) mounting version
Frequency band:	UHF 740 - 764 MHz
Frequency selection:	192 Switchable frequencys
Modulation:	FM
Frequency stability:	± 0.0005 %
Range:	100 m with line of sight
Switching bandwidth:	24 MHz
Switch:	On/off switch
Diversity:	True diversity
Housing design:	Desktop console housing (19") 48.3 cm rack installation (provided)
Dimension:	Width: 21.3 cm Depth: 15 cm Height: 4 cm
Weight:	1.33 kg

Audio - Mikrofone - Drahtlose Mikrofonanlagen
Peso: 1.65
