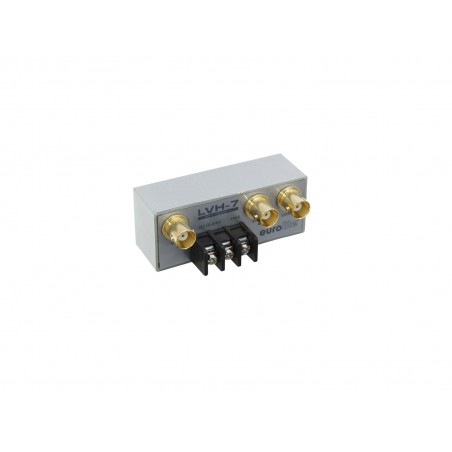

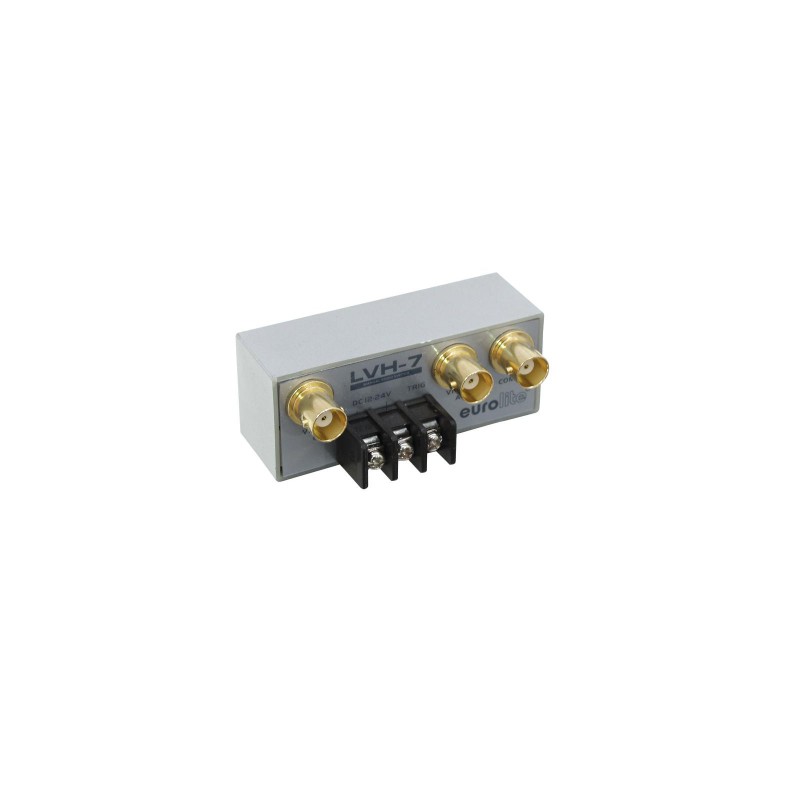

EUROLITE LVH-7 Manual video switch

Codice: 81013207        codice Ean: 4026397324839        MARCA:  EUROLITE

MANUAL VIDEO SWITCH 2:1The LVH-7 is the ideal choice in installations where either a manual switch or an open-collector must switch video signals. The LVH-7 utilizes a high quality RF relay to switch one of two video sources to one output or two video sources to a single video destination. To control the LVH-7 you need the LVH-8 with open collector output or relay contacts on any other equipment. The unit is compatible with NTSC and PAL systems.

Manual video switch 2:1

• Manual switching of video
• Controllable with LVH-8 or relay contacts of other units
• Switches one of two video signals to one output
• Routes one video signal between two outputs
• Remote controlled video switching
• NTSC and PAL compatible
• 12-24 V DC power supply via block terminals (PSU not included in the delivery)
• Ultra compact

Power supply:	12-24 V DC 30 mA
Power connection:	Screw terminal
Connections:	Input: 2 x video via BNC (F) Output: 1 x video via BNC (F)
Dimension:	Width: 7.6 cm Depth: 4.1 cm Height: 3.1 cm
Weight:	0.07 kg
TRIG input current:	2 mA
TRIG input threshold:	2 V DC
