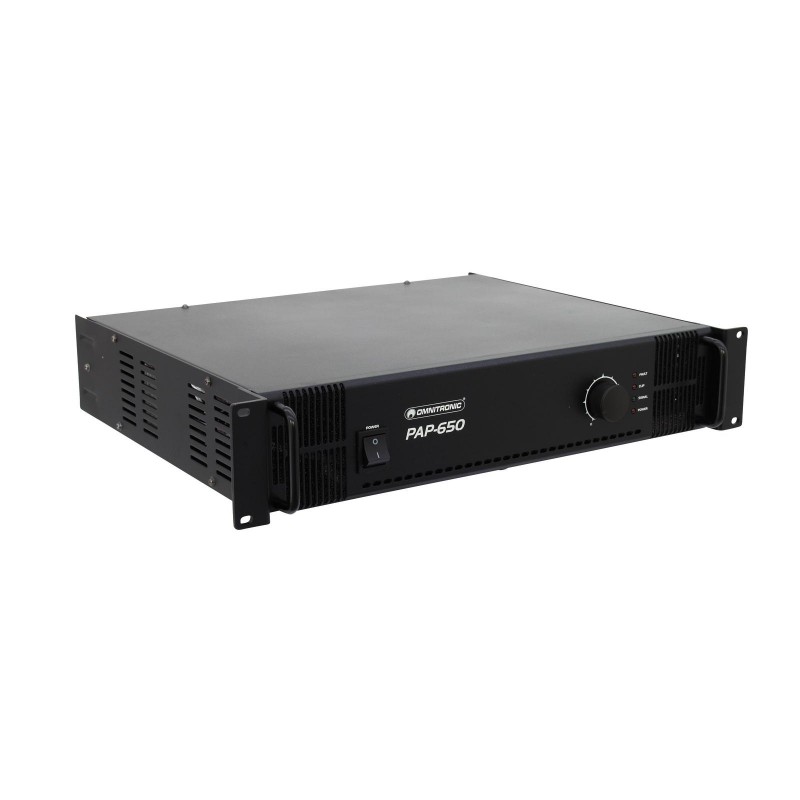

OMNITRONIC PAP-650 PA Amplifier

516,99 €

Tasse escluse

Sconti sul volume

Quantità	Prezzo unitario	Salva
3	516,99 €	93,06 €

Quantità

Disponibile

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

OMNITRONIC PAP-650 PA Amplifier

Codice: 80709820 codice Ean: 4026397220902 MARCA: OMNITRONIC

PA power amplifier, 650 watts

1 line input (optionally XLR or 6.3 mm jack)
1 feed-through output (optionally XLR or 6.3 mm jack)
70 V, 100 V or 4-16 ohms operation
Master control
LED indicators for power, signal, clip and fault
Protective circuits: over load, short circuit, turn-on delay, over heating, DC offset protection
Load detection and power control
Rack installation
(19") 48.3 cm rack installation 2 U

Power supply:	230 V AC, 50 Hz
Output power:	Max. 650 W 650 W RMS
Frequency range:	80 - 16000 Hz
S/N ratio:	>90 dB line
THD:	<0.5 % at 1 kHz
Power connection:	Fixed Power supply cord with safety plug
Impedance:	100 V ELA; 4-16 Ohm
Circuitry:	Class AB
Controls:	Softstart; overheat; overload; short-circuit; DC voltage
Status LED:	Signal, power, fault, clip
Connections:	Input: 1 x line via 6.3 mm jack socket (mono) mounting version Input: 1 x line via 3-pin XLR 0.3 V Output: 1 x line via 6.3 mm jack socket (mono) mounting version Output: 1 x line via 3-pin XLR
Housing design:	(19") 48.3 cm rack installation 2 U
Dimension:	Width: 48.3 cm Depth: 38.5 cm Height: 8.9 cm
Weight:	15.95 kg
