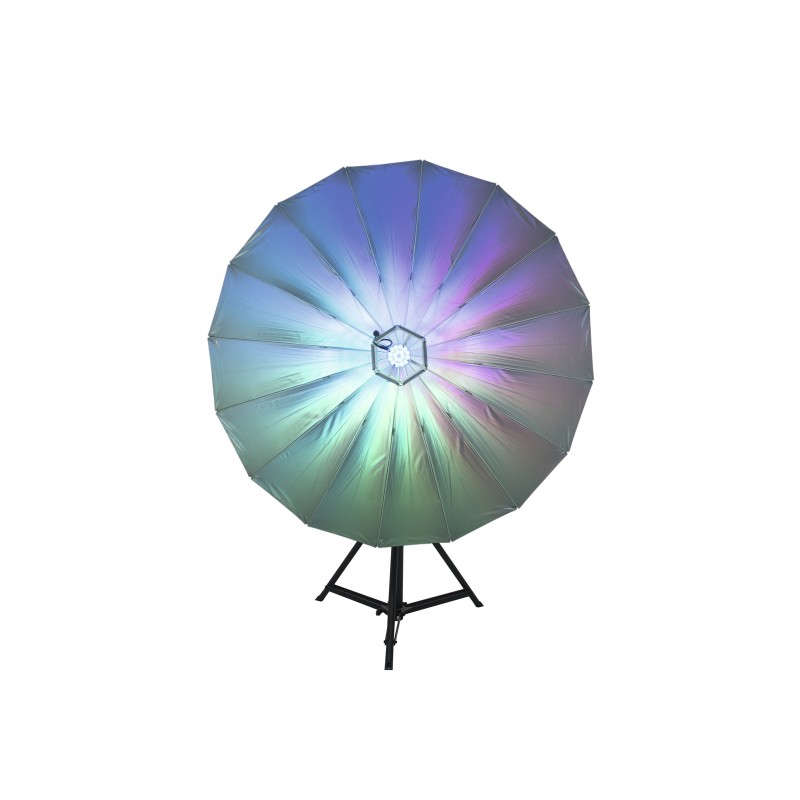

DMX-controllable lighting effect umbrella with 114 SMD RGB LEDs, distributed in 7 segments
Segments can be controlled individually via DMX
6 segments make the surface of the umbrella shine, one segment in the middle shines directly at the audience
Perfect as stage background and eye-catcher for decorative purposes in shops, display windows, fair stands, hotels, bars and clubs
Can be mounted to a lighting stand or trussing - the umbrella's angle can be adjusted
Easy transport (can be folded), setup and installation
Covers a large area with a diameter of 140 cm
Built-in auto and music show programs
Supports QuickDMX - the wireless DMX-system from Eurolite
Built-in phantom-powered USB port for QuickDMX receivers (accessories)
Stepless RGB color mixture, dimmer and strobe effect
Addressing via control panel with 4-digit LED display
Appropriate control unit included in the delivery
Power connection via P-Con jack and included power cable with safety plug
LED: 114 x SMD 3in1 TCL RGB (homogenous color mix)
Can be operated in 6; 24 CH mode
The device is cooled by passive cooling by convection
Controlling by Stand-alone; DMX; Sound to light via Microphone; QuickDMX via USB (optional); Master/slave function
Is in Light J Software; EUROLITE LED PC-Control 512 software already preprogrammed
Flicker-free projection
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
20 W
IP classification:
IP20
LED:
114 x SMD 3in1 TCL RGB (homogenous color mix)
DMX channels:
6; 24
DMX input:
1 x 3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
Power connection:
Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided)
Cooling:
Passive cooling by convection
Control:
Stand-alone; DMX; Sound to light via Microphone; QuickDMX via USB (optional); Master/slave function; Light J Software; EUROLITE LED PC-Control 512 software
