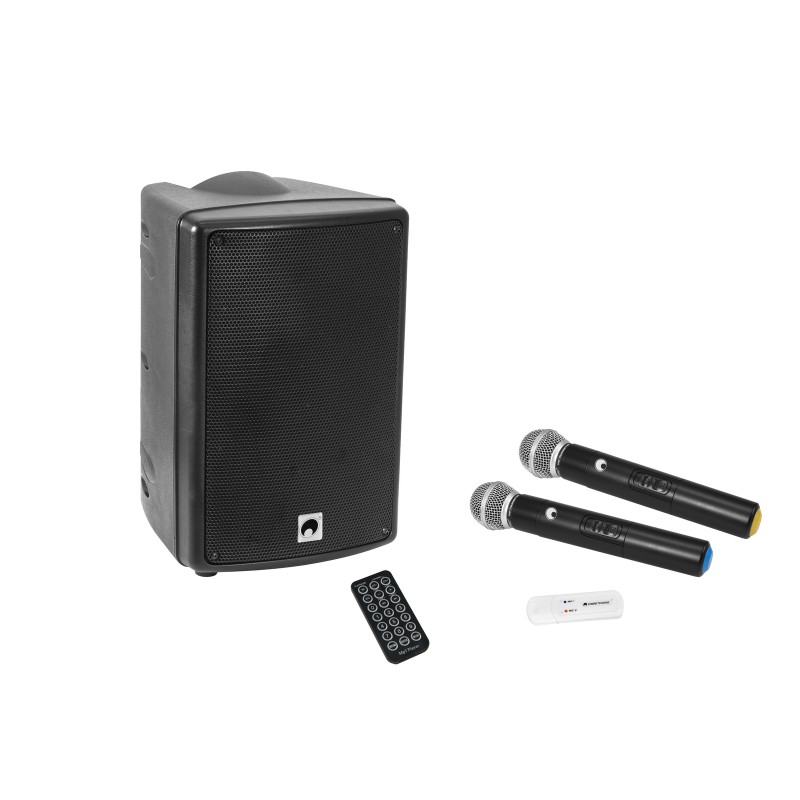

13107006 OMNITRONIC WAMS-08BT MK2 Wireless PA System
Mobile 8" PA system with battery operation, audio player, Bluetooth and wireless microphones (optional)
Audio player
Remote control
13072332 OMNITRONIC UWM-2HH USB Wireless Mic Set with two Handheld Microphones
Accessory kit for compatible Omnitronic products
| Weight: | 8.07 kg |
| 13107006 OMNITRONIC WAMS-08BT MK2 Wireless PA System | |
| Power supply: | 100-240 V AC, 50/60 Hz Or 12 V DC |
| Power consumption: | 65 W |
| Rated power: | 40 W RMS |
| Program power: | 60 W |
| Sensitivity: | 90 dB (1W/1m) |
| Max. SPL: | 106 dB |
| Power connection: | Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) Battery/battery pack built-in |
| Control elements: | "ECHO" effect control, Audio player |
| Status LED: | Power, peak, Microphone, Battery level indicator, pairing |
| Connections: | Input: 1 x line via 3.5 mm jack (stereo) mounting version Input: 1 x line via stereo RCA Input: 2 x Mic/Hi.Z. via 3-pin XLR/6.35mm jack (F) combination socket (mounting version) |
| Input channels: | 1 x stereo via RCA or jack plug or player, channel control via Rotary knob 2 x mono with Mic-Hi.Z. switch via 3-pin XLR/6.35mm jack (F) combination socket (mounting version), channel control via Rotary knob |
| Chanals: | Master output: 1 x stereo, channel control via Rotary knob, 2-band tone control EQ |
| Available storage media: | USB devices/SD cards max. 32GB (FAT 32) |
| Speakers: | 1 x woofer (8") approx 20 cm 1 x tweeter |
| USB port: | Typ A |
| Type of speaker: | Compact cabinet speaker; Wireless PA system |
| Color: | Black |
| Dimension: | Width: 27 cm Depth: 29 cm Height: 42 cm |
| Weight: | 7.75 kg |
| Battery pack | |
| Battery pack type: | 1 x lithium ion 11.1 V, 4000 mAh, 44.4 Wh |
| Battery pack: | Battery operation up to 4h depending on program used Recharging time 4h |
| Audio player | |
| Control: | IR remote control included; Bluetooth built-in |
| Audio player: | USB + SD + Bluetooth |
| Format: | MP3, WMA; WAV |
| Frequency band: | 2.4 GHz |
| Range: | 10 m Bluetooth |
| Remote control | |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Range: | 10 m |
| 13072332 OMNITRONIC UWM-2HH USB Wireless Mic Set with two Handheld Microphones | |
| Type: | Wireless set |
| Frequency band: | UHF 863 - 865 MHz |
| Frequency selection: | Fixed frequencys |
| RF power output: | 10 mW |
| Frequency stability: | ± 0.01 % |
| Range: | 30 m |
| Weight: | 0.32 kg |
| Receiver | |
| Power supply: | 5 V DC 500 mA |
| Power connection: | Mains input USB, type A |
| Microphone | |
| Power supply: | 3 V DC |
| Capsule type: | Dynamic |
| Battery: | 2 x Mignon (AA) (not included) |
| Power connection: | Battery/battery pack |
| Carrier frequency: | 863.3 MHz; 865 MHz |
| Switch: | On/off switch |
| Dimension: | Length: 25 cm Diameter: Ø 5 cm |
