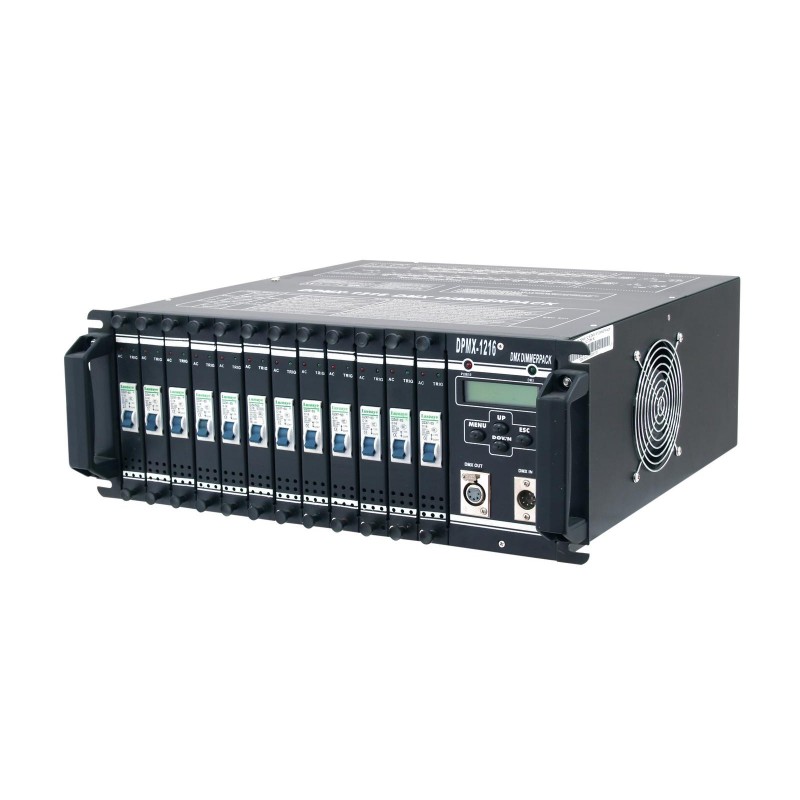

EUROLITE DPMX-1216 DMX Dimmer Pack

Codice: 70064180        codice Ean: 4026397521757        MARCA:  EUROLITE

Reliability is always important. Especially at professional events the breakdown of any part of the equipment cannot be accepted. The DPMX-1216 dimmer pack series is the right answer here because it plays it safe: this universal output stage has an automatic circuit breaker on every channel, so single failures can be corrected without causing a complete blackout. Another benefit are the different outputs. Pole connector, safety plug, CEE or multipin: the DPMX-1216 19" serves really any kind.

12 x 16A dimmer, service friendly modules, connection via terminal block

• 12-channel dimmer pack with up to 16 A output per channel
• Modular design of the individual dimmer modules for quick and easy change
• 3-phase or 1-phase power supply
• DMX512 control or analog control
• Adjustable lamp preheat (0-50%) and limiter function to prolong bulb life
• Curve function for selection of different fade modes
• Dim or switch option assignable to each channel
• DMX Fail function: automatic digital input check to detect DMX signal errors
• 12 built-in programs with adjustable speed
• Manual mode for dimming capability without an external lighting controller
• All modes are displayed via LCD
• Synchronization of several devices possible via DMX
• Automatic circuit breaker per channel (type C)
• Channel outputs on the rear panel via pole connectors
• Rack installation with 4 U
• Only for professional use
• Preprogrammed 12 chasers
• Can be operated in 12 CH mode
• Controlling by Analog 0-10 V; Stand-alone; DMX
• (19") 48.3 cm rack installation 4 U

Power supply:	230/380 V AC, 50 Hz
Protection class:	Class I
Output power:	Max. 43470 W Max. 3680 W per channal
Output current:	Max. 189 A
Power output:	Screw terminal
Fuse:	Power output fuse per channel C 16 A Fuse resettable
Programs:	Preprogrammed 12 Chasers
DMX channels:	12
DMX input:	1 x 3-pin XLR (M) mounting version 1 x 5-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version 1 x 5-pin XLR (F) mounting version
Power connection:	Mains input screw terminal
Control:	Analog 0-10 V; Stand-alone; DMX
Control channels:	12
Display type:	LCD display
Color:	Black
Housing design:	(19") 48.3 cm rack installation 4 U
Dimension:	Width: 48.3 cm Depth: 48.5 cm Height: 17.8 cm
Weight:	18.80 kg
