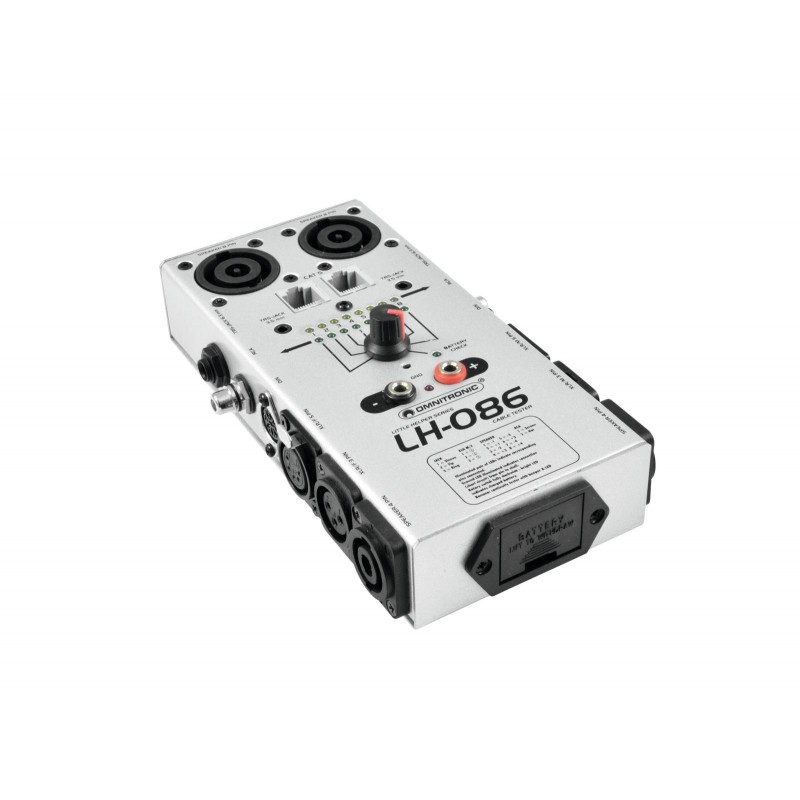

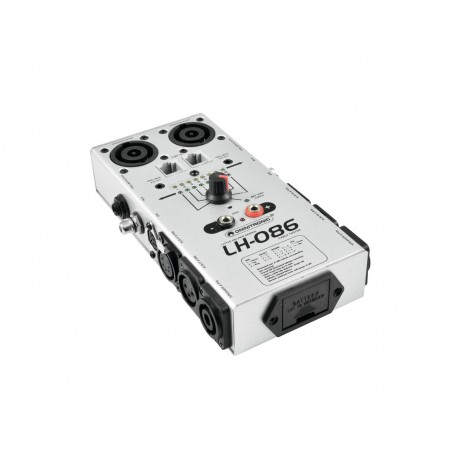

OMNITRONIC LH-086 Cable Tester

Codice: 10355086        codice Ean: 4026397361957        MARCA:  OMNITRONIC

The OMNITRONIC LH-086 controls the function of 3 and 5-pin XLR-, 3.5/6.3 mm jack (also stereo), CAT5, DIN, RCA and 4 and 8-pin speaker cables and connections. A polarity and short-circuit display enables an easy control. Testing the continuity via two banana sockets is possible as well.

Cable tester for XLR, jack, CAT5, DIN, Cinch, Speaker

• Ideal cable test for all cable connections in the studio and for live applications
• Tests 3+5-pin XLR, 3.5/6.3 mm jack (also stereo), CAT5, DIN, RCA and 4+8-pin Speaker cables and connections
• Polarity and short-circuit display
• Comfortable selection via rotary switch
• Continuity tester via two banana sockets for connecting the measuring pins. LED and beeper indicate continuity
• A must for musicians and technicians
• Operation with 9 V battery

Battery:	1 x 9.0 V E block 6LR61 alkaline manganese (provided)
Power connection:	Battery/battery pack
Connections:	Via RJ45 (F) mounting version Via 3.5 mm jack (stereo) mounting version Via RCA (f) mounting version Via 3-pin XLR Via 5-pin XLR Via speaker built-in socket (f) Via 6.3 mm jack socket (stereo) mounting version Via 5-pin DIN (F) mounting version
Dimension:	Width: 11.2 cm Depth: 19 cm Height: 6 cm
Weight:	0.90 kg
