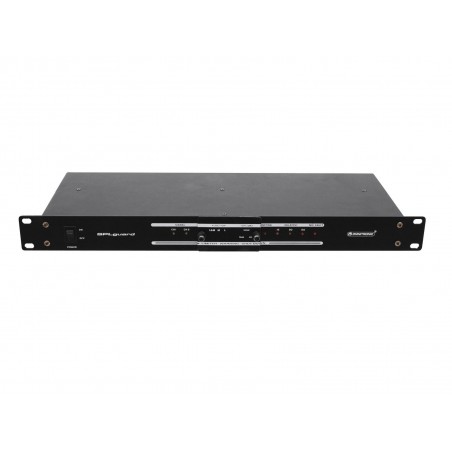

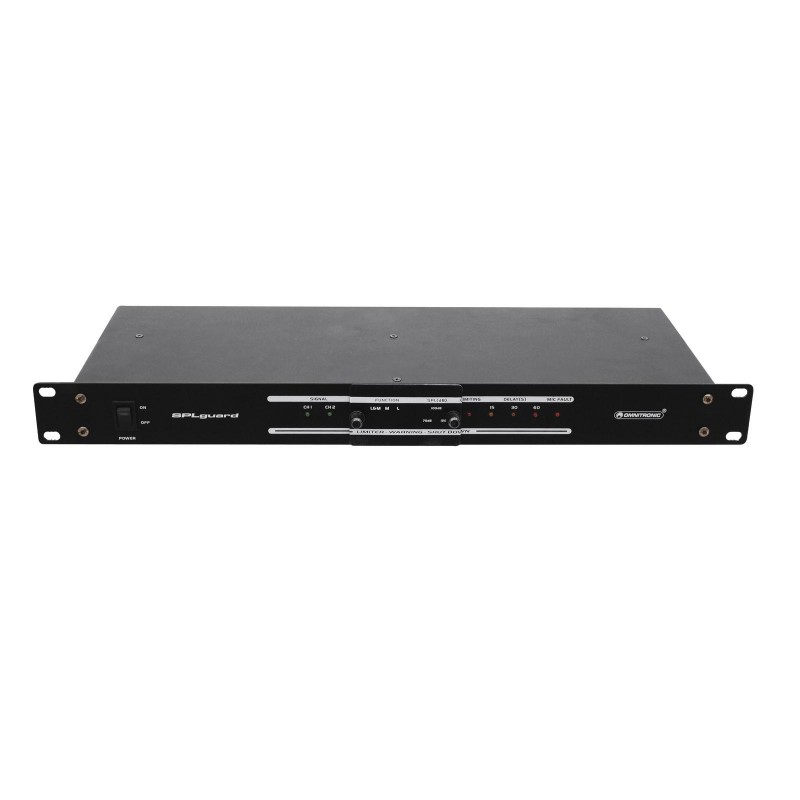

OMNITRONIC SPL-1 SPL Guard + Measure Mic

Codice: 10356250 codice Ean: 4026397395174 MARCA: OMNITRONIC

Guard system for limiting the sound pressure level

Tamper-proof 2-channel sound level limiter with measurement microphone to meet legal noise regulations e.g. in discotheques
For insertion between mixer and PA amplifier(s)
Guards the speaker level and gradually attenuates the output signal to the preset maximum SPL, muting can be switched on
3 operating modes can be selected: limiter with muting after 60 seconds, muting after 60 seconds, limiter
Threshold control for setting the maximum admissible SPL
3-color LED indicators warn of impeding muting when level is exceeded
Connection possibility for external warning indicators (optional)
Inputs and outputs via balanced XLR connectors
Trimmer and mode selector for on-site calibration behind removable cover plate
All audio connectors and controls can be sealed
Rack installation, 1 U
(19") 48.3 cm rack installation 1 U

Microphone

Power supply:	230 V AC, 50 Hz
Power consumption:	10.00 W
S/N ratio:	>86 dB
THD:	<0.09 % at 1 kHz
Power connection:	Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Impedance:	Input 20 kOhm , bal. Input 10 kOhm , unbal. Output 300 Ohm , unbal. Output 150 Ohm , bal.
Gain:	0 dB
Mute gain reduction:	-60 dB
Parameter:	Limiter threshold: +75 to +120 dB, arbitrary
Crosstalk:	>75 dB
Connections:	2 x Indicator via RJ45 (F) mounting version Input: 2 x line via 3-pin XLR Input: 1 x Microphone via 6.3 mm plug (unbal.) Output: 2 x line via 3-pin XLR
Max. level:	Input: +20 dBu
Housing design:	(19") 48.3 cm rack installation 1 U
Dimension:	Width: 48.3 cm Depth: 18.5 cm Height: 4.45 cm
Weight:	3.22 kg
Microphone
Capsule type:	Dynamic
Polar pattern:	Cardioid
Frequency range:	20 - 20000 Hz
