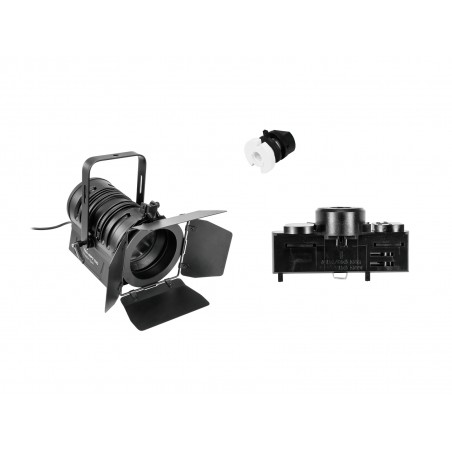

EUROLITE Set DIY LED THA-40PC TRC + Multi adapter, 3 phases, black

DIY set for connection to 3-phase track systems

41602082 EUROLITE LED THA-40PC TRC Theater-Spot bk

Fanless PC spot with 57 W white light LED, color rendering index (CRI) >90

• Perfect white light for trade fairs, exhibitions and shop lighting
• Equipped with one high-power warm white 57 W LED
• CRI of >90
• Color temperature: 3100 K
• Stepless brightness regulation direct on the device
• Dimming via external dimmer possible
• Metal housing
• Mounting bracket for installation on a stand or a crossbeam
• Locking possibility at the bracket
• Manual, stepless zoom from 12-47°
• Additional rubber feet protect the device when positioned on the floor
• Rotatable barn doors and color filter frame included in the delivery
• Ready for connection via power cord with safety-plug
• Switch-mode power supply for operation between 100 and 240 volts
• LED: 1 x COB (chip-on-board) 57 W WW
• The device is cooled by passive cooling by convection
• Controlling by Stand-alone
• Flicker-free projection

30307105 EUTRAC Multi adapter, 3 phases, black

Multi adapter with data bus option

• For 3~ circuit track
• Prepared for data bus contacts (data bus contact with SELV safety chip, part no. 99-698-0)
• Screw termination, approved for 6 A inductive / 6 A ohmic up to 250 V
• With earth contact, circuit selection by turnkey switch and optional neutral position during operation
• Due to double mechanical locking perfect track fixing even when using heavy spotlights
• Maximum load up to 5 kg, or 10 kg when using retaining collar 99-066-x
• Suitable for various other 3~ circuit tracks
• Made in Germany

30307115 EUTRAC Retaining collar for multi adapter, black

Retaining collar

• For mounting bracket with outside thread M13 x 1, bracket holes Ø13.5 or 16.5 mm incl. strain relief
• Made in Germany
