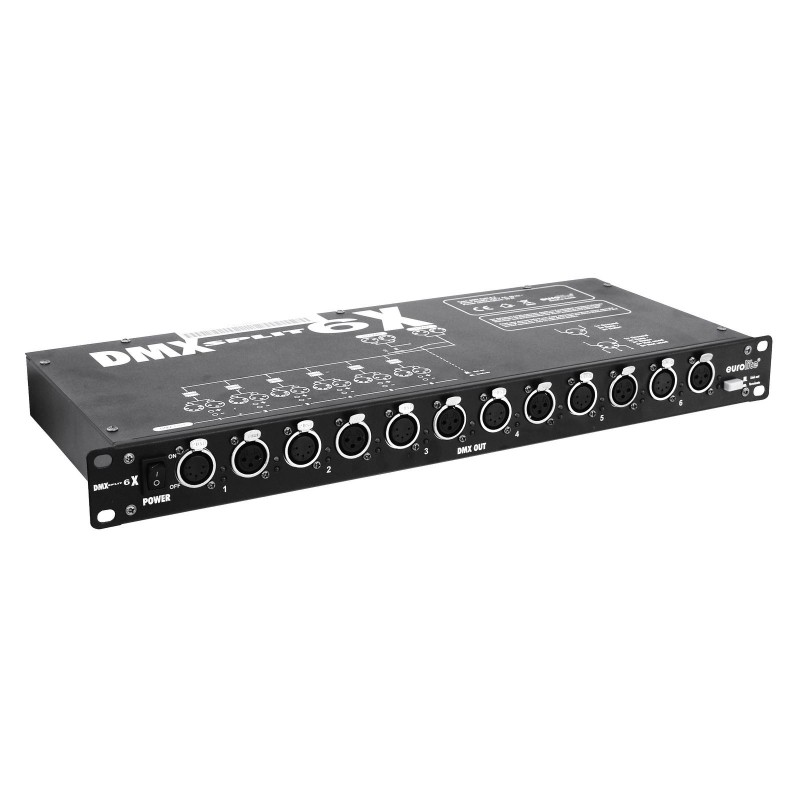

EUROLITE Split 6X DMX Splitter

Codice: 70064820        codice Ean: 4026397605136        MARCA:  EUROLITE

One DMX-line is partitioned into six lines with this splitter. Due to the fact, that all outputs are seperated galvanically, one broken line will not cause a blackout. When a lighting performance without any disturbance is aspired, then this DMX Split is a must-have.

Splitter with 6 galvanized isolated outputs, 3-pin & 5-pin XLR sockets

• DMX splitter for splitting one DMX input signal to 6 DMX outputs
• Input and outputs galvanically isolated
• Connections XLR 3-pin and 5-pin
• Every DMX output with independent driver and data indicator
• Input and outputs with a set of respective power supply and internal fuse
• Rack mounting

Power supply:	230 V AC, 50 Hz
Power consumption:	15 W
DMX input:	1 x 3-pin XLR (M) mounting version 1 x 5-pin XLR (M) mounting version
DMX output:	6 x 3-pin XLR (F) mounting version Separate (galvanic) 6 x 5-pin XLR (F) mounting version Separate (galvanic) 1 x 5-pin XLR (F) mounting version Bypass 1 x 3-pin XLR (F) mounting version Bypass
Power connection:	Fixed Power supply cord with safety plug
Control elements:	Bypass/terminating resistor Schalter, power switch
Dimension:	Width: 48.3 cm Depth: 20 cm Height: 4.45 cm
Weight:	3.23 kg

Licht - Lichtsteuerung - DMX-Tools
Peso: 3.65
