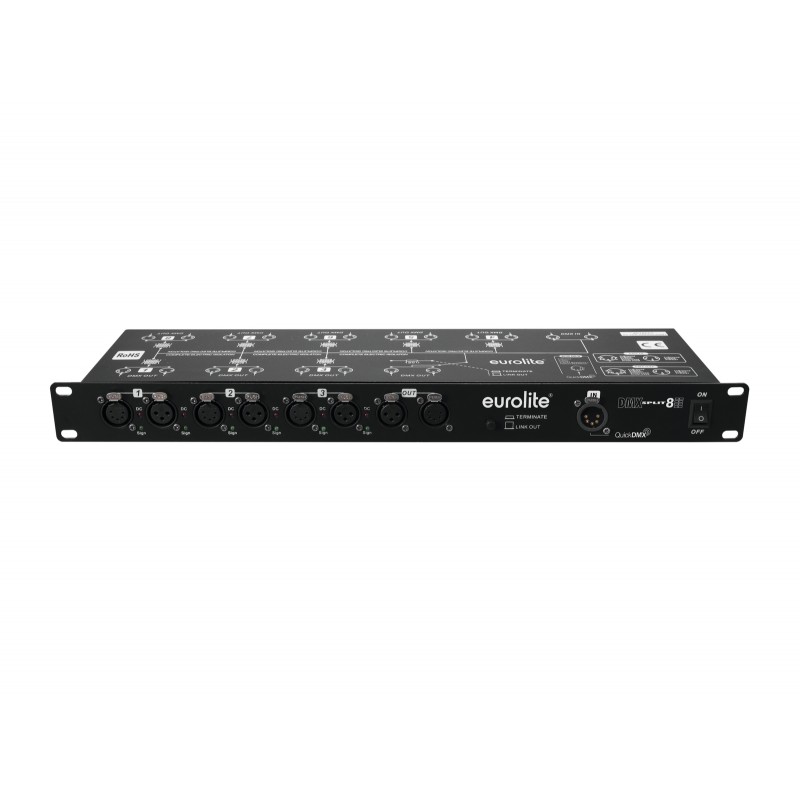

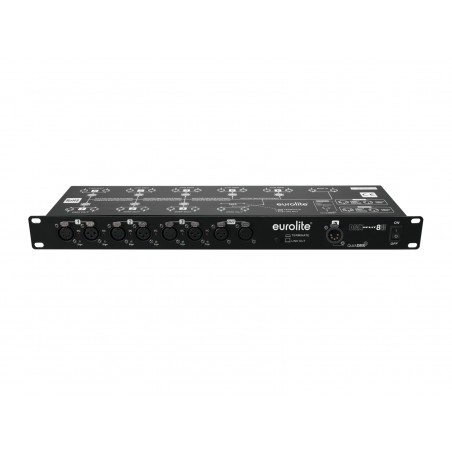

EUROLITE DMX Split 8X Splitter
Codice: 70064825        codice Ean: 4026397528008        MARCA:  EUROLITE



Splitter with 8 galvanized isolated outputs, 3/5-pin & QuickDMX XLR sockets

  • DMX splitter for splitting one DMX input signal to 8 DMX outputs
  • Connections: 1 x DMX input, 1 x DMX feed-through output, 8 x DMX output
  • Additional QuickDMX input for wireless reception of DMX signals
  • Input and outputs XLR 3-pin and 5-pin each
  • Input and outputs galvanically isolated
  • Each DMX output with independent driver and status indicators
  • Input and outputs with a set of respective power supply and internal fuse
  • Switchable termination resistor
  • Rack mounting
  • Controlling by QuickDMX via 5-pin XLR (M) mounting version (optional)


Power supply:100-240 V AC, 50/60 Hz
Power consumption:5 W
DMX input:1 x 3-pin XLR (M) mounting version
1 x 5-pin XLR (M) mounting version
DMX output:8 x 3-pin XLR (F) mounting version Separate (galvanic)
8 x 5-pin XLR (F) mounting version Separate (galvanic)
1 x 5-pin XLR (F) mounting version Bypass
1 x 3-pin XLR (F) mounting version Bypass
Power connection:Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Control:QuickDMX via 5-pin XLR (M) mounting version (optional)
Control elements:Bypass/terminating resistor Schalter, power switch
Dimension:Width: 48.3 cm
Depth: 14.5 cm
Height: 4.45 cm
Weight:2.22 kg


Licht - Lichtsteuerung - DMX-Tools
Peso: 2.57
