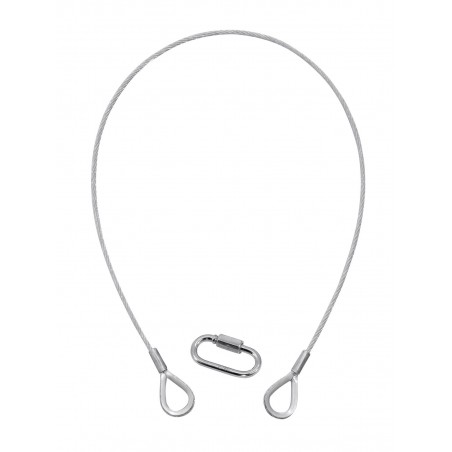

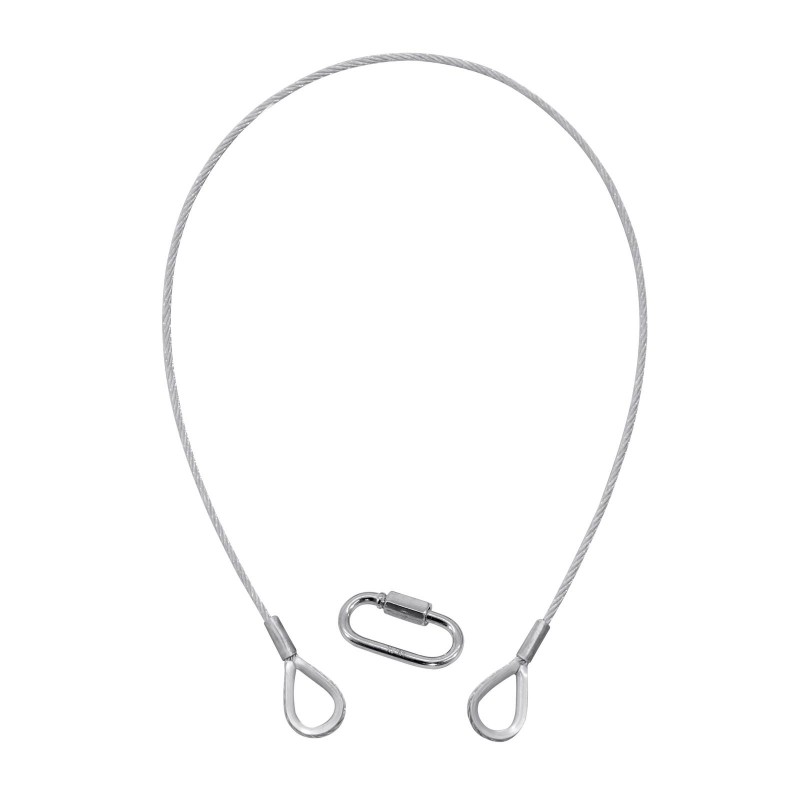

EUROLITE Safety Bond A 3x600mm up to 5kg, silver

Codice: 58010310        codice Ean:         MARCA:  EUROLITE

EUROLITE Safety bondsThe EUROLITE safety bonds comply with the current regulation of the German professional insurance association as summed up in BGI 810-3:2007-03 Loads above persons. The safety bonds are constructed in accordance with the European standards DIN EN 12385-4:2008-06 and DIN 56927:2009-03.The safety bonds are tested by the LGA, an independent and accredited testing institute. The breaking load testified by the LGA is documented in the test report according to DIN EN 10204 required by the German professional insurance association.Clearly, every user can secure loads above persons with these safety bonds in all areas where the BGV C1 is required.

Approved safety rope

• Rope with thimble and connector

5801048F EUROLITE Steel Rope 600x3mm silver with Thimbles

Installation rope, safety bond, safety

• Round strand rope 6 x 19 with fibre core
• With two thimbles
• Suitable for installing and securing loads above persons
• 3 x 600 mm
• WLL 100 kg
• Test report according to DIN EN 10204 as download
• Rope with thimble

50301642 EUROLITE Quick Link Type A-50

Quick link

• Form A (short)
• Galvanized
• Identification number: 50
• Stamp: DIN 56927 A 50
• Test report according to DIN EN 10204 as download

Secured weight (BGV C1):	Max. 5 kg
Strength classification:	1770
Temperature range:	-40 °C - +100 °C
Weight:	0.04 kg
5801048F EUROLITE Steel Rope 600x3mm silver with Thimbles
Maximum load WLL (5-fold):	100 kg
Design of the core:	6 x 19 FC
Strength classification:	1960
Standard:	DIN EN 12385-4:2008-06, DIN 56927:2009-03
Nominal tensile strenght of rope:	1770 N/mm²
Wire surface:	Zinc-plated
Color:	Silver
Temperature range:	-40 °C - +100 °C
Dimension:	Length: 60 cm
Dimension:	Diameter: Ø 3 mm
Weight:	0.03 kg
Length weigth:	0.0311 kg/m
50301642 EUROLITE Quick Link Type A-50
Maximum load WLL (5-fold):	100 kg
Standard:	DIN 56927:2009-03,
Shape:	A - small opening
Opening:	0-5 mm
Dimension:	Length: 29 mm Width: 35 mm Depth: 19 mm Diameter: Ø 3.5 mm
Weight:	0.01 kg
