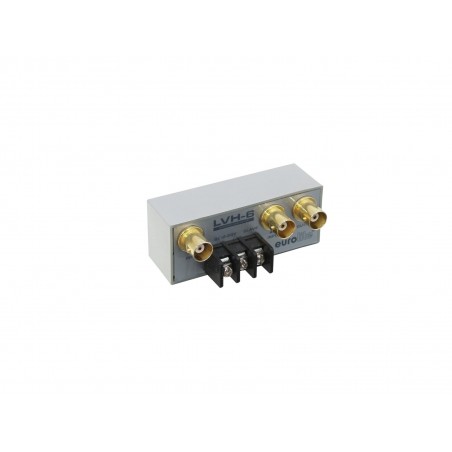

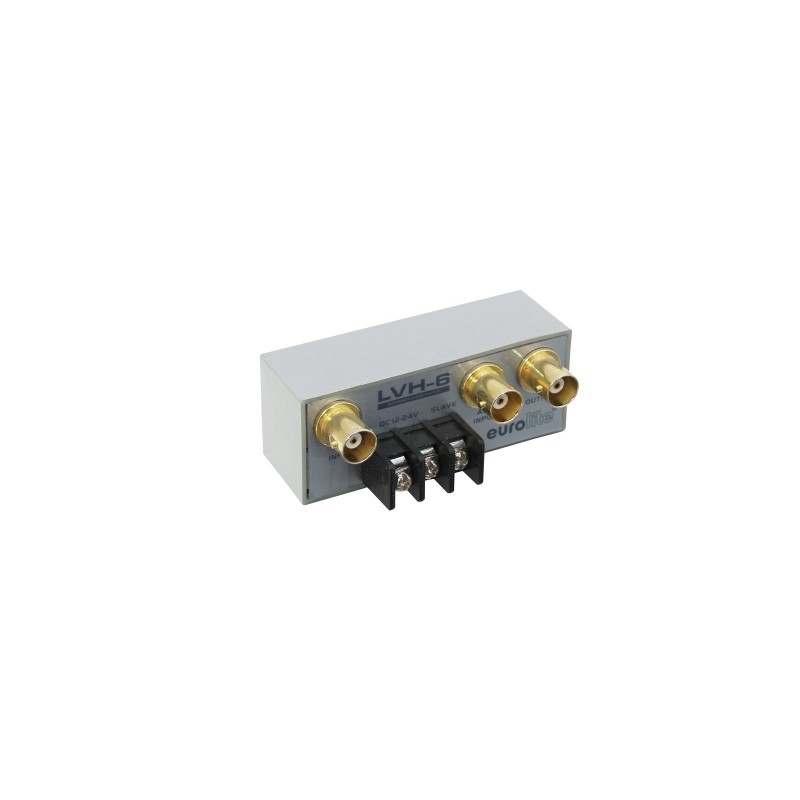

EUROLITE LVH-6 Automatic video switch

Codice: 81013206        codice Ean: 4026397324822        MARCA:  EUROLITE

AUTOMATIC VIDEO SWITCH 2:1The LVH-6 was designed to switch video signals from two sources to one output. The unit utilizes a high quality RF relay to automatically switch to an alternate source when the primary signal is lost. The slave output allows for controlling other units. Power connections are made using block terminals. The unit responds to NTSC and PAL signals.

Automatic video switch 2:1

• 2 inputs and 1 output via BNC plugs
• Automatic switching to alternate signal source in case of signal loss
• Detection of NTSC and PAL signals
• Slave output for controlling other units
• 12-24 V DC power supply via block terminals (PSU not included in the delivery)
• Ultra compact

Power supply:	12-24 V DC 30 mA
Connections:	Output: via screw terminal Output: 1 x video via BNC (F)
Dimension:	Width: 7.6 cm Depth: 4.1 cm Height: 3.1 cm
Weight:	0.07 kg
2 x video inputs:	0.5-1 Vpp/75 ohms BNC, ground referenced

Hardware - Videoprojektion - Video-Steuerungen
Peso: 0.09
