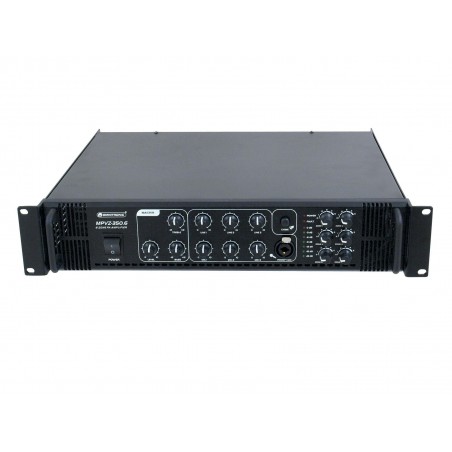

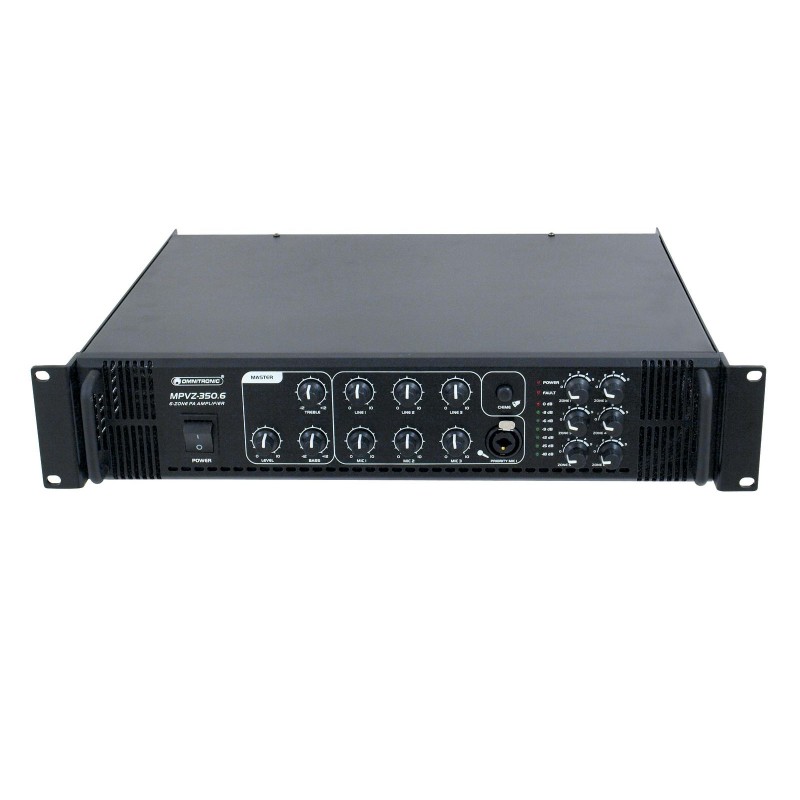

OMNITRONIC MPVZ-350.6 PA mixing Amplifier

Codice: 80709791 codice Ean: 4026397422184 MARCA: OMNITRONIC

6-zone PA mono mixing amplifier, 350 watts, adjustable zones

Comfortable control of PA speakers via 6-zone technology
6 PA zone outputs with separate 5-step level controls
Master PA output (70 V and 100 V)
Output for low-impedance speakers (4-16 ohms)
2 rear microphone inputs (6.3 mm jack, unbal.)
1 front microphone input (combination XLR/6.3 mm jack, unbal.) with adjustable priority circuit
All microphone inputs with separate level controls
3 line inputs (stereo RCA) with separate level controls
1 line output (stereo RCA)
Chime, switchable
Treble and bass control for the output signal
7-fold LED level display
Master control for the output signal
Protection circuits with LED indication: over current, short circuit, turn-on delay
The device is cooled by cooling fan
(19") 48.3 cm rack installation 2 U

Power supply:	230 V AC, 50 Hz
Power consumption:	700.00 W
Output power:	350 W RMS
Frequency range:	80 - 16000 Hz
S/N ratio:	>75 dB Microphone >85 dB line
THD:	<0.5 % at 1 kHz
Power connection:	Fixed Power supply cord with safety plug
Cooling:	Cooling fan
Impedance:	100 V ELA; 4-16 Ohm
Equalizer:	Master: 1 x 2-band tone control mono
Zone output:	6 adjustable zones
Circuitry:	Class AB
Controls:	Current limiting; short-circuit; power on/off transient
Status LED:	Power, fault, level meter
Connections:	Input: 1 x Microphone via 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: 2 x Microphone via 6.3 mm plug (unbal.) Input: 3 x line via stereo RCA 0.3 V Output: 1 x line via stereo RCA Output: speakers via screw terminal
Housing design:	(19") 48.3 cm rack installation 2 U
Dimension:	Width: 48.3 cm Depth: 38.5 cm Height: 8.9 cm
Weight:	14.10 kg
