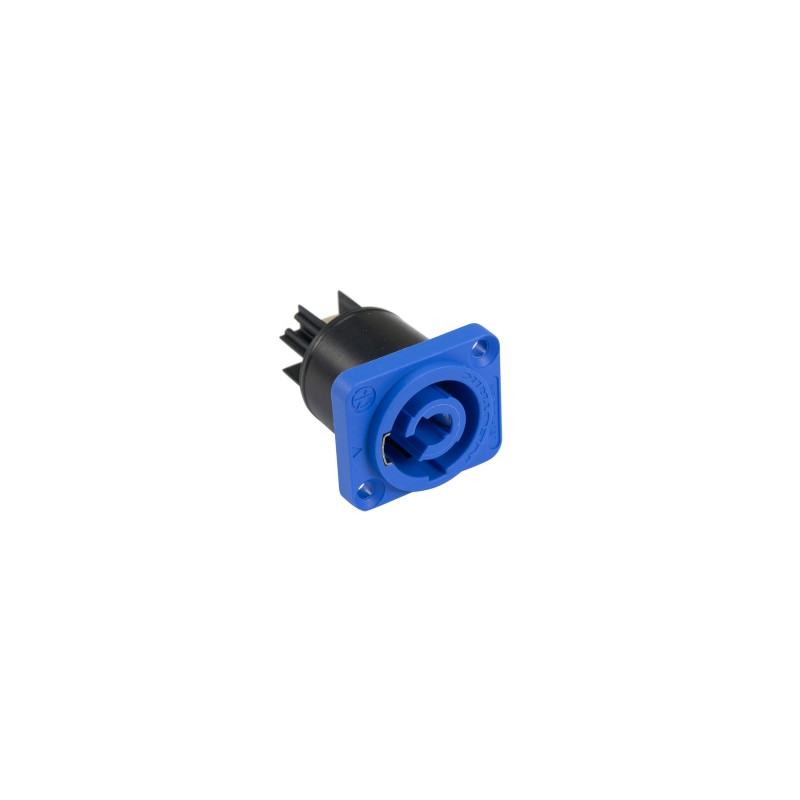

NEUTRIK PowerCon Mounting Connector bu NAC3MPA-1

Codice: 30208543        codice Ean: 4026397534313        MARCA:  NEUTRIK

Industrial Connectors / PowerConLocking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. Fast and easy locking system. High current capacity (20 A rated). Extremely robust and reliable. Meets all prevailing safety standards. UL recognized, VDE certified and SEV approved. Very good cable handling and protection. Note: The PowerCon is a connector without breaking capacity, i.e. the PowerCon should not be connected or disconnected under load or live!

Mounting connector for 5 - 15 mm cable O.D. range

• Premating safety ground
• Quicklock with securing lever
• With the two non-interchangeable types of connectors (A-type, B-type) it is impossible to produce a short circuit
• Appropriate plugs are identified by mechanical keyways and by color
• Made in Europe

IP classification:	IP20
Connector type:	PowerCON (gray)
Shape:	Mounting version
Connections:	Via solder tail
Use of brands:	Built with NEUTRIK connector
Weight:	0.01 kg

Hardware - Strom - Steckverbindungen
Peso: 0.01
