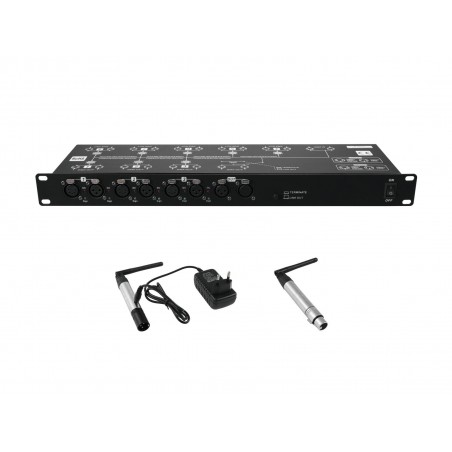

EUROLITE Set DMX Split 8X Splitter + transmitter + receiver

70064825 EUROLITE DMX Split 8X Splitter

Splitter with 8 galvanized isolated outputs, 3/5-pin & QuickDMX XLR sockets

• DMX splitter for splitting one DMX input signal to 8 DMX outputs
• Connections: 1 x DMX input, 1 x DMX feed-through output, 8 x DMX output
• Additional QuickDMX input for wireless reception of DMX signals
• Input and outputs XLR 3-pin and 5-pin each
• Input and outputs galvanically isolated
• Each DMX output with independent driver and status indicators
• Input and outputs with a set of respective power supply and internal fuse
• Switchable termination resistor
• Rack mounting
• Controlling by QuickDMX via 5-pin XLR (M) mounting version (optional)

70064700 EUROLITE QuickDMX Wireless Transmitter

Wireless DMX transmitter 2.4 GHz

• User-friendly 3-pin XLR plug (male) with swivel antenna
• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transmitters and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
• 1 to 512 QuickDMX receivers can be controlled by each transmitter
• Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
• LED indication for functions
• Transceiver, to be used as transmitter or receiver
• Powered via included PSU
• 2.4 GHz ISM band - license-free worldwide
• Can transmit up to 512 DMX channels
• Controlling by QuickDMX built-in
• Use a operating range up to 400m

70064702 EUROLITE QuickDMX Wireless receiver phantom-power

Wireless DMX receiver 2.4 GHz, phantom powered

• User-friendly 5-pin XLR plug (female) with swivel antenna
• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX receivers and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• 1 to 512 QuickDMX receivers can be controlled by each transmitter
• Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
• LED indication for functions
• Transceiver, to be used as transmitter or receiver
• Requires 5 V phantom power for operation
• 2.4 GHz ISM band - license-free worldwide
• Can receive and process up to 512 DMX channels
• Controlling by DMX; QuickDMX built-in
• Use a operating range up to 400m
