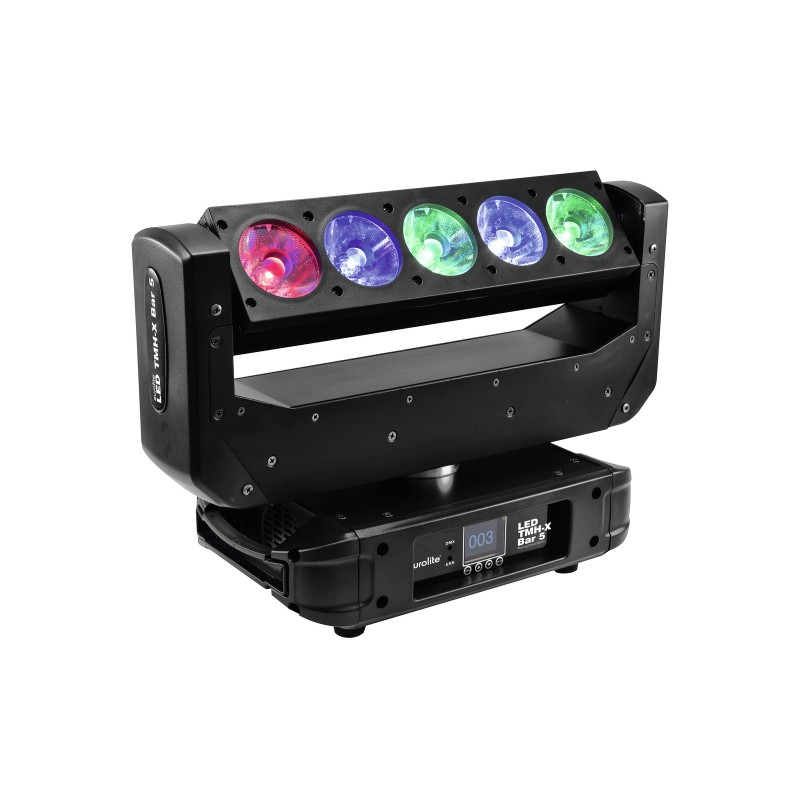

EUROLITE LED TMH-X Bar 5 Moving-Head Beam

412,99 €

Tasse escluse

Sconti sul volume

Quantità	Prezzo unitario	Salva
3	412,99 €	74,34 €

Quantità

Disponibile

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

EUROLITE LED TMH-X Bar 5 Moving-Head Beam

Codice: 51785905 codice Ean: 4026397613902 MARCA: EUROLITE

Narrow angle LED Moving Bar with 5 RGBW LEDs (15 W each) and unlimited TILT

Moving Beam bar equipped with five 15 W COB LEDs with RGBW colors
Each LED can be controlled individually
Narrow beam angle
With Infinity function for unlimited TILT movement
Positioning within 540° PAN and 360° TILT
Automatic position correction for PAN
DMX-controlled operation or stand-alone operation with Master/Slave function
Colored beams in red, green, blue and white
Stepless RGBW color mixture
Color presets
Strobe effect with variable speed
Internal programs
Exact positioning via 16 bit PAN/TILT movement resolution
Dimmer
Control board with LCD and foil-keyboard for adjusting the DMX-starting address, PAN/TILT reverse, reset
Switch-mode power supply for operation between 100 and 240 volts
P-Con terminals for power linking up to 8 units
LED: 5 x COB (chip-on-board) 15 W 4in1 QCL RGBW (homogenous color mix)
Can be operated in 16; 32 CH mode
The device is cooled by cooling fan
Controlling by DMX; Stand-alone; Sound to light via Microphone
Is in Light J Software; EUROLITE LED PC-Control 512 software already preprogrammed
Flicker-free projection
Effect: Fan effect

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	100 W
IP classification:	IP20
Power output:	1 x P-Con (gray), mounting version
Lamp type:	LED lamp
LED:	5 x COB (chip-on-board) 15 W 4in1 QCL RGBW (homogenous color mix)
Max. TILT movement:	Exact positioning (16 bit resolution) 360° plus infinity
Max. PAN movement:	Exact positioning (16 bit resolution) 540° Auto position correction (feedback)
Flash rate:	0 - 18 Hz
DMX channels:	16; 32
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Power connection:	Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided)
Cooling:	Cooling fan
Control:	DMX; Stand-alone; Sound to light via Microphone; Light J Software; EUROLITE LED PC-Control 512 software
Beam angle:	3°
Beam angle (1/2 peak):	3°
Beam angle (1/10 peak):	7°
Illuminance in Lux (lx):	R red 3m: 1646 lx, 6m: 532 lx G green 3m: 4112 lx, 6m: 1249 lx B blue 3m: 1120 lx, 6m: 345 lx CW 3m: 6739 lx, 6m: 2089 lx All 3m: 10763 lx, 6m: 3175 lx
Housing color:	Black
Display type:	Multicolor LCD display
Dimension:	Width: 43 cm Depth: 19.5 cm Height: 30 cm
Weight:	8.90 kg
Legal specifications
Ecodesign regulation:	Yes
Special product:	Not designed for household room illumination
Purpose:	Show effect lighting
