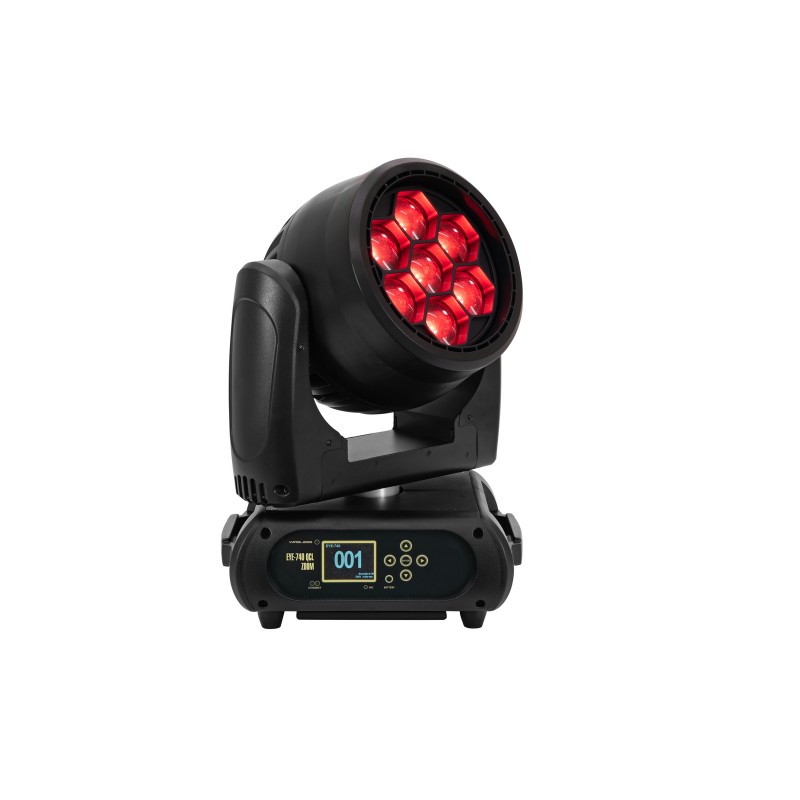

FUTURELIGHT EYE-740 QCL Zoom LED Moving-Head Wash

Codice: 51841304 codice Ean: 4026397674873 MARCA: FUTURELIGHT

PRO washlight with RGBW color mixing, zoom and Art-Net

7 high-power Osram Ostar 40 W RGBW LEDs (4in1)
Variable PWM frequency (pulse-width modulation)
Upgrade via optional wireless receiver module for WDMX operation (Wireless Solution - made in Sweden)
Quick and easy control via Art-Net
Ethernet connectors
Exact positioning via 16 bit PAN/TILT movement resolution
Master dimmer with 16 bit resolution
Motorized zoom with 1 - 32° beam angle
The brightness of each of the 7 RGBW LEDs can be controlled individually
Preset colors and color temperatures (virtual color wheel)
Built-in programs
Animated and static macros
Stepless RGBW color mixture
Strobe effect with adjustable speed
Random strobe effect
Automatic position correction
PAN angle switchable between 540° and 630°
ESDC function (Easy Service Data Check) with battery-buffered control board for operation time readouts etc. (the Li-Ion battery 3.7V, AAA, 10440 is not included)
Control board with graphic LCD and foil-keyboard for adjusting the DMX-starting address, PAN/TILT reverse, reset
Manual, sound, DMX or Art-Netcontrolled operation
The scenes can be modified via the Control Board or via an external controller and loaded into the memory
Number of scenes can be changed individually
Software upload by optional accessories via DMX link
Neutrik powerCON terminals for power linking up to 8 units
Switch-mode power supply for operation between 100 and 240 volts
LED: 7 x high-power 40 W 4in1 QCL RGBW (homogenous color mix)
Can be operated in 19; 20; 22; 23; 52 CH mode
The device is cooled by cooling fan
Controlling by W-DMX by wireless solution upgradeable; RDM; DMX; ArtNet; Sound to light via Microphone; Stand-alone; Master/slave function
Is in EUROLITE LED PC-Control 512 software already preprogrammed
Flicker-free projection

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	235 W
IP classification:	IP20
Power output:	1 x PowerCON (gray), mounting version
Fuse:	Device fuse 5 x 20 mm, T 3.15 A Fuse replaceable
Lamp type:	LED lamp
LED:	7 x high-power 40 W 4in1 QCL RGBW (homogenous color mix)
Max. TILT movement:	Exact positioning (16 bit resolution) 265° Auto position correction (feedback)
Max. PAN movement:	Exact positioning (16 bit resolution) 540° Positioning switchable to 630° Auto position correction (feedback)
Equipment:	Zoom motor-driven
DMX channels:	19; 20; 22; 23; 52
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Network connection:	Protocol: ArtNet 3 via 2x RJ45 (F) mounting version
Power connection:	Mains input PowerCON (blue), mounting version Power supply cord with safety plug (provided)
Cooling:	Cooling fan
Control:	W-DMX by wireless solution upgradeable; RDM; DMX; ArtNet; Sound to light via Microphone; Stand-alone; Master/slave function; EUROLITE LED PC-Control 512 software
Beam angle:	1 - 32°
Beam angle (1/2 peak):	1 - 16°
Beam angle (1/10 peak):	4 - 32°
Illuminance in Lux (lx):	Narrow R red 1m: 11617 lx, 3m: 5390 lx, 6m: 1311 lx Wide R red 1m: 2157 lx, 3m: 288 lx, 6m: 79 lx Narrow G green 1m: 30644 lx, 3m: 13327 lx, 6m: 3404 lx Wide G green 1m: 5570 lx, 3m: 740 lx, 6m: 194 lx Narrow B blue 1m: 3395 lx, 3m: 2204 lx, 6m: 671 lx Wide B blue 1m: 1233 lx, 3m: 167 lx, 6m: 41 lx Narrow CW 1m: 40020 lx, 3m: 16766 lx, 6m: 4169 lx Wide CW 1m: 6541 lx, 3m: 857 lx, 6m: 231 lx Narrow all 1m: 74589 lx, 3m: 34338 lx, 6m: 8925 lx Wide all 1m: 14124 lx, 3m: 1902 lx, 6m: 494 lx
Housing color:	Black
Dimension:	Width: 25.0 cm Depth: 34.3 cm Height: 45.8 cm
Weight:	14.30 kg
