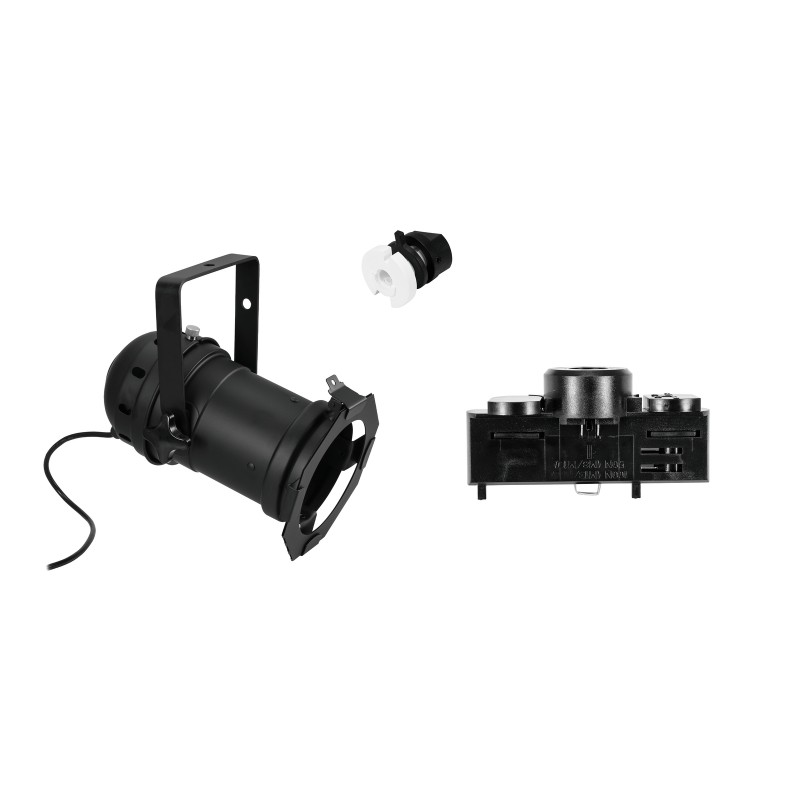

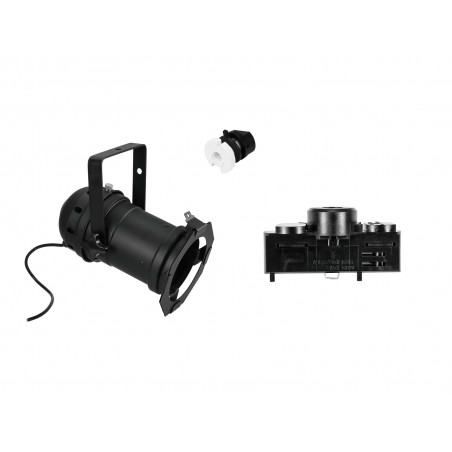

EUROLITE Set DIY PAR-46 Spot E-27 + Multi adapter, 3 phases, black

DIY set for connection to 3-phase track systems

41930200 EUROLITE PAR-46 Spot E-27 bk

PAR-46 housing with E-27 socket (with plug + cable)

• Rugged aluminum housing
• Strong aluminum mounting bracket
• Heat-resistant fixing screw for "bombproof" fixing
• 4 clip-to-hold clamps with spring locks for comfortable opening of the color filter frame
• Internally blackened tube for precise light output
• Strong extension spring for safe hold and for quick opening of the rear housing cover
• Accidental-contact protection on the rear housing cover - complies with CE-regulations
• Power cord and safety-plug included in the delivery
• Delivered with color filter frame
• With strong cable tension relief
• Via color filter frame
• Controlling by plug and play
• For PAR 46

30307105 EUTRAC Multi adapter, 3 phases, black

Multi adapter with data bus option

• For 3~ circuit track
• Prepared for data bus contacts (data bus contact with SELV safety chip, part no. 99-698-0)
• Screw termination, approved for 6 A inductive / 6 A ohmic up to 250 V
• With earth contact, circuit selection by turnkey switch and optional neutral position during operation
• Due to double mechanical locking perfect track fixing even when using heavy spotlights
• Maximum load up to 5 kg, or 10 kg when using retaining collar 99-066-x
• Suitable for various other 3~ circuit tracks
• Made in Germany

30307115 EUTRAC Retaining collar for multi adapter, black

Retaining collar

• For mounting bracket with outside thread M13 x 1, bracket holes Ø13.5 or 16.5 mm incl. strain relief
• Made in Germany
