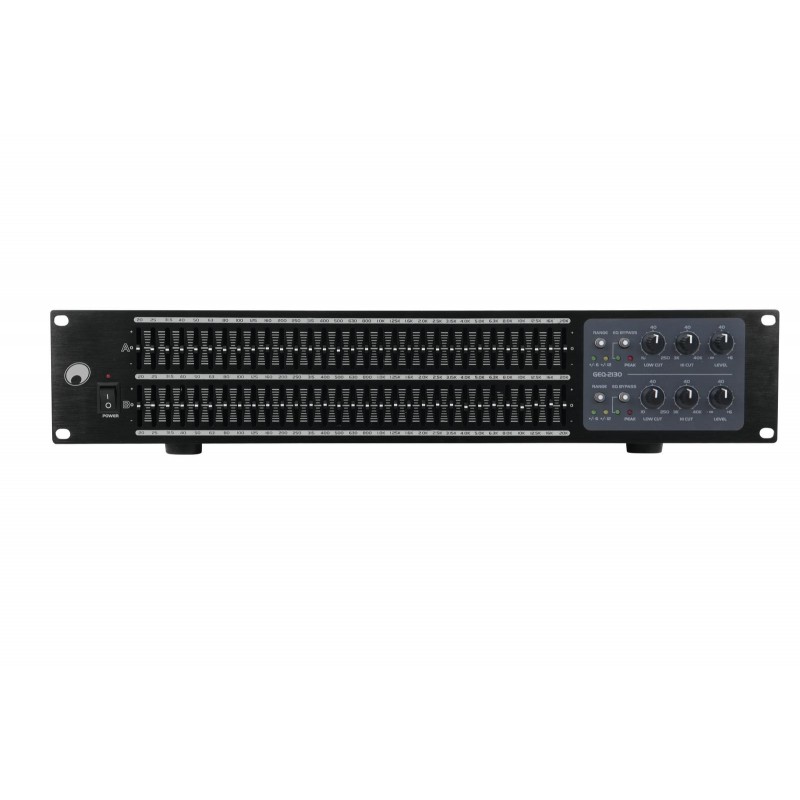

OMNITRONIC GEQ-2310 Equalizer 2x31-Band

Codice: 10355526 codice Ean: 4026397522815 MARCA: OMNITRONIC

2 x 31-band equalizer

2-channel version, 2 x 31 frequency controls with 1/3 octave steps
Long sliding frequency controls with center click
EQ gain switchable ±6 dB to ±12 dB
Hi Cut (3-40 kHz) and Low Cut (10-250 Hz), adjustable
Separate level control per channel
Bypass switch allows instant comparison of the original sound with the equalized sound
Clip indicator
Inputs and outputs via 6.3 mm jack sockets and XLR sockets
Groundlift switch
Rack installation, 2 U
(19") 48.3 cm rack installation 2 U

Power supply:	230 V AC, 50 Hz
Power consumption:	17 W
Frequency range:	20 - 20000 Hz
S/N ratio:	>96 dB
THD:	<0.05 % at 1 kHz
Power connection:	Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Impedance:	Input 20 kOhm , bal. Input 15 kOhm , unbal. Output 300 kOhm , bal. Output 150 kOhm , unbal.
Gain:	Output: - ? to + 6 dB
Filter:	Hi cut: 3000 Hz - 40000 Hz; low cut: 250 Hz - 10 Hz
Equalizer:	Master: 2 x Graphic equalizer 31-band Centre frequency: ISO standard, 1/3 octave (terzband), 20/25/31,5/40/50/63/80/100/125/160/200/250/315/400/500/ 630/800 Hz, 1/1,25/1,6/2/2,5/3,15/4/5/6,3/8/10/12,5/16/20 kHz
Control range:	±6dB, ±12dB, switchable
Connections:	Input: 2 x line via 3-pin XLR Input: 2 x line via 6.3 mm plug (unbal.) Output: 2 x line via 3-pin XLR Output: 2 x line via 6.3 mm plug (unbal.)
Max. level:	Input: +24 dBu, bal. Input: +18 dBu, unbal. Output: +24 dBu, bal. Output: +18 dBu, unbal.
Material:	Metal
Color:	Black
Housing design:	(19") 48.3 cm rack installation 2 U
Dimension:	Width: 48.3 cm Depth: 15 cm Height: 8.9 cm
Weight:	2.92 kg
