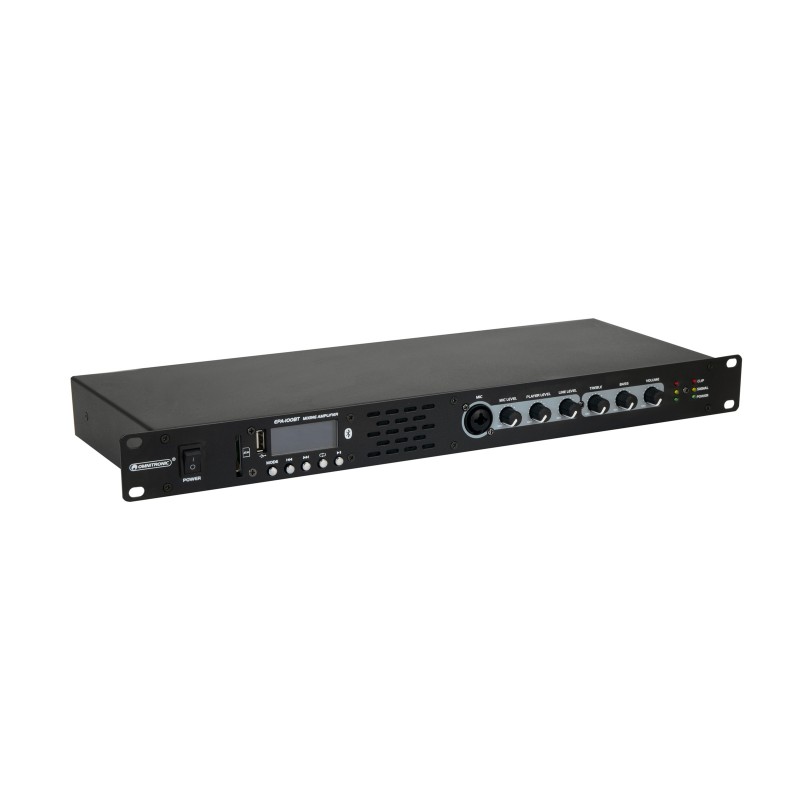

OMNITRONIC EPA-100BT Mixing Amplifier

Codice: 10007078        codice Ean: 4026397653663        MARCA:  OMNITRONIC

The 1 U flat stereo mixing amplifier EPA-100BT with efficient class D output circuitry is particularly suitable for permanent installations in restaurants, gyms and retail locations which require quick-access music playback control. It provides 2 x 50 watts at 4 ohms and lets you play and control music from multiple sources. Equipped with connections for a microphone and a line-level audio source, it also features a built-in audio player with USB port and memory card slot as well as a Bluetooth receiver for wireless audio streaming directly from your smartphone, tablet or any other Bluetooth-enabled device.

19" mixing amplifier with audio player, Bluetooth and 2 x 50 watts power

• 1 U flat stereo mixing amplifier with 2 x 50 watts power
• For quick-access music playback control in restaurants, fitness studios and retail locations
• Built-in audio player with USB port and SD card slot
• Blue backlit LCD screen
• Integrated Bluetooth audio streaming
• Adjustable stereo line input via XLR and RCA jacks
• Adjustable microphone input on the front panel
• Controls for volume, bass and treble
• Signal, clip and power indicators
• Stereo line output via XLR and RCA jacks
• Screw terminals for low-impedance speakers
• Groundlift switch against humming
• Limiter for overload protection
• Efficient class D circuitry
• Low weight and height due to integrated switch mode power supply
• Rack installation, 1 U
• The device is cooled by cooling fan
• (19") 48.3 cm rack installation (provided) 1 U

Audio player

• Bluetooth: Use a operating range up to 10m

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	100 W
Output power:	30 W RMS (8 ohms) 50 W RMS (4 ohms)
Frequency range:	20 - 20000 Hz
Power connection:	Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Cooling:	Cooling fan
Equalizer:	Master: 1 x 2-band tone control stereo
Circuitry:	Class D
Connections:	Input: 1 x Microphone via 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: 2 x line via 3-pin XLR Input: 1 x line via stereo RCA Output: 2 x line via 3-pin XLR Output: 1 x line via stereo RCA Output: speakers via screw terminal
Housing design:	(19") 48.3 cm rack installation (provided) 1 U
Dimension:	Width: 48.3 cm Depth: 21 cm Height: 4.45 cm
Weight:	2.59 kg
Audio player
Audio player:	USB + SD + Bluetooth
Format:	WMA; MP3, WAV
Carrier frequency:	2.4 GHz
Available storage media:	USB devices/SD cards max. 32GB
Range:	10 m Bluetooth
