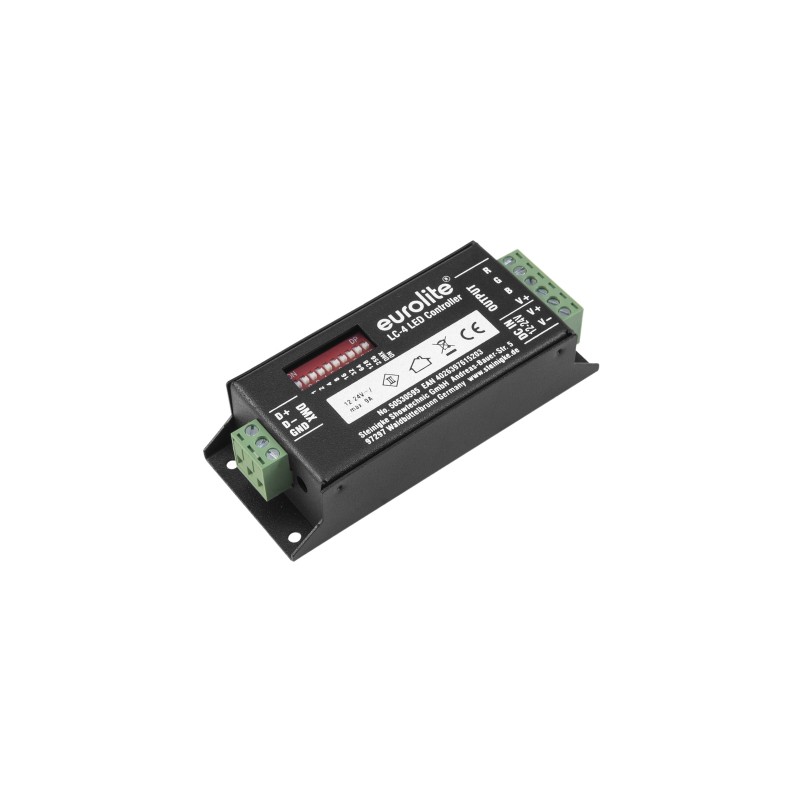

EUROLITE LC-4 LED Strip RGB DMX Controller

Codice: 50530595 codice Ean: 4026397615203 MARCA: EUROLITE

3-channel LED controller with DMX interface for RGB LEDs 12-24 V

Compact LED controller for controlling RGB LEDs (12-24 V) via DMX
Converts standard DMX512 signals to PWM signals e.g. for driving LED strips
3 separate control channels for individual color mixing of red, green and blue LEDs
Built-in programs enable stand-alone operation (individual color selection, color change, color fade, running speed)
DMX addressing and settings via DIP switches
Plug-in screw terminals for connecting the LEDs and the power supply (accessory)
Rugged black metal housing
Can be operated in 4 CH mode
The device is cooled by passive cooling by convection
Controlling by DMX; Stand-alone

Power supply:	12/24V DC
Power consumption:	Max. 144 W 12 V DC Max. 216 W 24 V DC 36 W 12 V DC per channal 72 W 24 V DC per channal
IP classification:	IP20
Output current:	Max. 3 x 3 A per channal
Power output:	Screw terminal
DMX channels:	4
DMX input:	Screw terminal
Power connection:	Screw terminal
Cooling:	Passive cooling by convection
Control:	DMX; Stand-alone
Housing color:	Black
Dimension:	Width: 4.5 cm Depth: 10.9 cm Height: 2.7 cm
Weight:	0.15 kg
