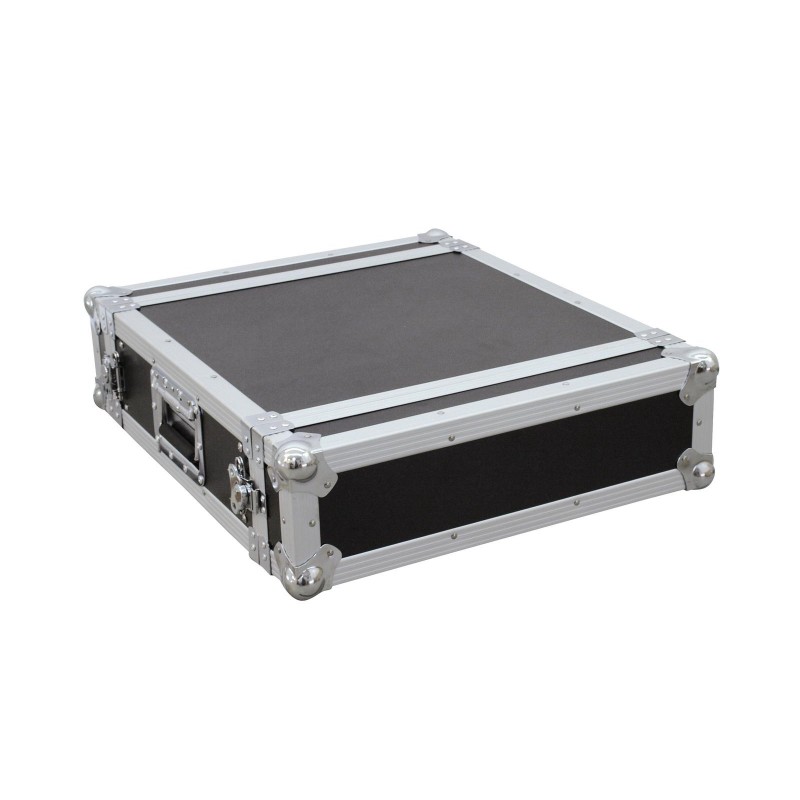

ROADINGER Amplifier Rack PR-1, 3U, 47cm deep

Codice: 3010980P        codice Ean: 4026397408706        MARCA:  ROADINGER

Flightcase for 483 mm devices (19")The ROADINGER amplifier rack PR-1 with 3 U is optimally suited for your 19" equipment such as power amplifiers and other accessories. The maximum installation depth is 420 mm plus 90 mm per cover. The case features high-quality, 7 mm thick sides made of multi-layer glued and black laminated wood. The aluminium profile frame with rounded corners and the three-legged, medium-sized steel ball corners provide additional stability. The amplifier rack is equipped with four snap locks, two chrome-plated case folding handles and two wooden sliding rails on the floor. Both lids are removable.The maximum load is 50 kg.

Flightcase for 483 mm units (19")

• Profile rails with mounting facility for 483 mm units (19"), e.g. PA amplifiers, power packs, additional equipment
• 2 removable covers (double-door version)
• Max. depth 420 mm (plus 90 mm per cover)
• High-quality workmanship with plywood multilayered glued, black laminated
• Aluminum profile frames (30 mm) with rounded edges
• Three-leg, medium-sized steel ball corners
• 4 spring locks
• 2 wooden slide rails on the bottom
• 2 chrome case handles
• Delivery includes mounting screws
• Available in different height units (1 U = 44 mm)
• 3 U

Maximum load:	50 kg
Material:	Glued plywood, 7 mm
Color:	Black, laminated
Outer dimensions/corners approx.:	64 mm
Mounting width:	483 mm (ca. 19")
Mounting height:	Approx. 136 mm (3 U)
Mounting depth:	470 mm
Housing design:	3 U
Dimension:	Width: 54.5 cm Depth: 64 cm Height: 17.5 cm
Weight:	8.60 kg

Hardware - Cases e Racks - Racks
Peso: 9.3
