OMNITRONIC MCS-1250 MK2 6-Zone PA Amplifier

1.237,99 €

Tasse escluse

Sconti sul volume

Quantità	Prezzo unitario	Salva
3	1.237,99 €	222,84 €

Quantità

Disponibile

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

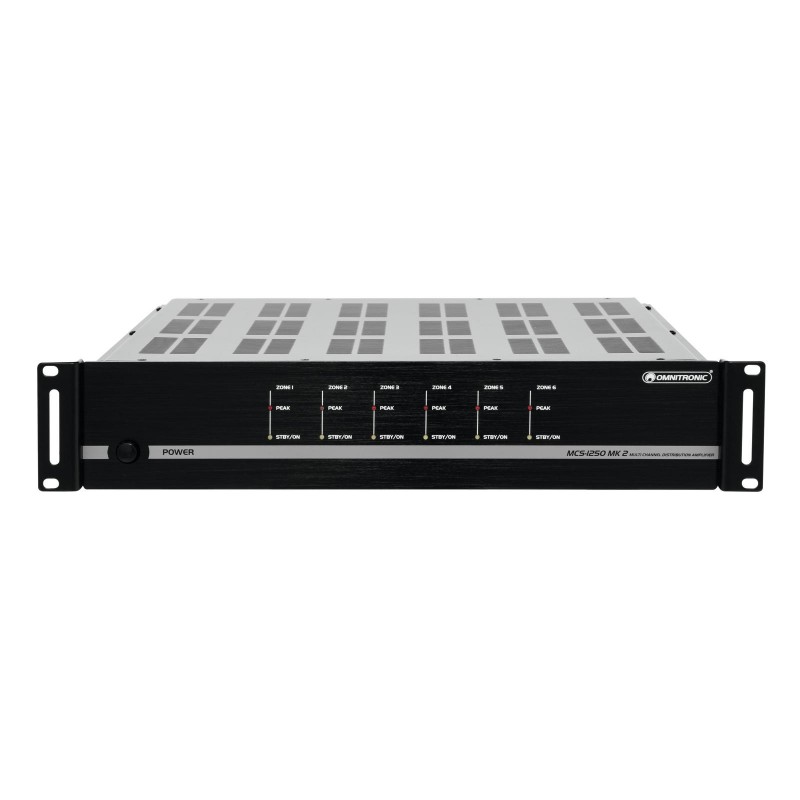

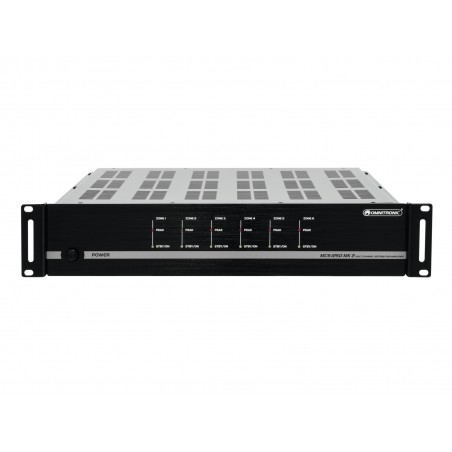

OMNITRONIC MCS-1250 MK2 6-Zone PA Amplifier

Codice: 10452480 codice Ean: 4026397550245 MARCA: OMNITRONIC

6-zone audio amplifier with matrix assignment, 2 x 50 W / 4 ohms per zone

6-zone stereo amplifier for multi-zone PA applications
Updated version with touch pad wall controller
12 x 50 W/4 ohms per zone
Bridge mode with 100 W/8 ohms individually selectable per zone
Efficient Class D technology
6 stereo inputs expandable to 18 stereo zones with further units
Matrix input assignment: input sources are freely assignable to each channel
6 pre-amp outputs to connect external power amplifiers
Convenient control via touch pad wall controller or IR remote control
Incl. 6 wall controllers with touch-sensitive surface (touch pad), LCD with blue backlight and IR receiver
Wall controller allows selecting the audio source and volume, treble, bass adjustment for each zone individually
Incl. wall hub for up to 6 wall controllers
Incl. IR remote control
Signal inputs: 4 x stereo RCA, 2 x 3.5 mm jack and 1 x Toslink for digital audio signals
Speaker connection via terminal blocks
6 zone status indicators on the front panel
Automatic gain control selectable for level matching of signal sources
Terminals for IR emitters (accessory) allow extending the IR signals from the remote controls of the signal sources
RS232 port enables two-way communication with a home automation system
Trigger input for muting
6 trigger outputs for switching external amplifiers
Controlling by IR remote control
The device can be connected via RJ45 (F) mounting version to the PC
(19") 48.3 cm rack installation 2 U

Power supply:	115/230 V AC, 50/60 Hz
Power consumption:	1250 W
Output power:	12 x 25 W RMS (8 ohms) 12 x 50 W RMS (4 ohms) 6 x 100 W RMS bridged (8 ohms)
Frequency range:	20 - 20000 Hz
S/N ratio:	>85 dB
THD:	<0.1 % at 1 kHz
Power connection:	Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Impedance:	Input 47 kOhm
Control:	IR remote control
Circuitry:	Class D
Control elements:	Mode switch (stereo/bridged), power switch
Controls:	Short-circuit; overheat; overload
Status LED:	Standby, power, peak
Connections:	Input: 4 x line via stereo RCA Input: 2 x line via 3.5 mm jack (stereo) mounting version Input: 1 x line via toslink Input: 1 x Keypad via RJ45 (F) mounting version Input: 7 x IR-Extension/receiver via 3.5 mm jack (mono) mounting version Input: 1 x Muting via 3.5 mm jack (mono) mounting version Output: 6 x Trigger via 3.5 mm jack (mono) mounting version Output: 6 x speakers via screw terminal 1 x Home automation via RS 232
Input sensitivity:	250 mV
PC connect:	Via RJ45 (F) mounting version
Housing design:	(19") 48.3 cm rack installation 2 U
Dimension:	Width: 48.3 cm Depth: 42 cm Height: 8.9 cm
Weight:	12.70 kg
Remote control
Battery:	2 x 1.5 V AAA Micro R03 zinc carbon (provided)
