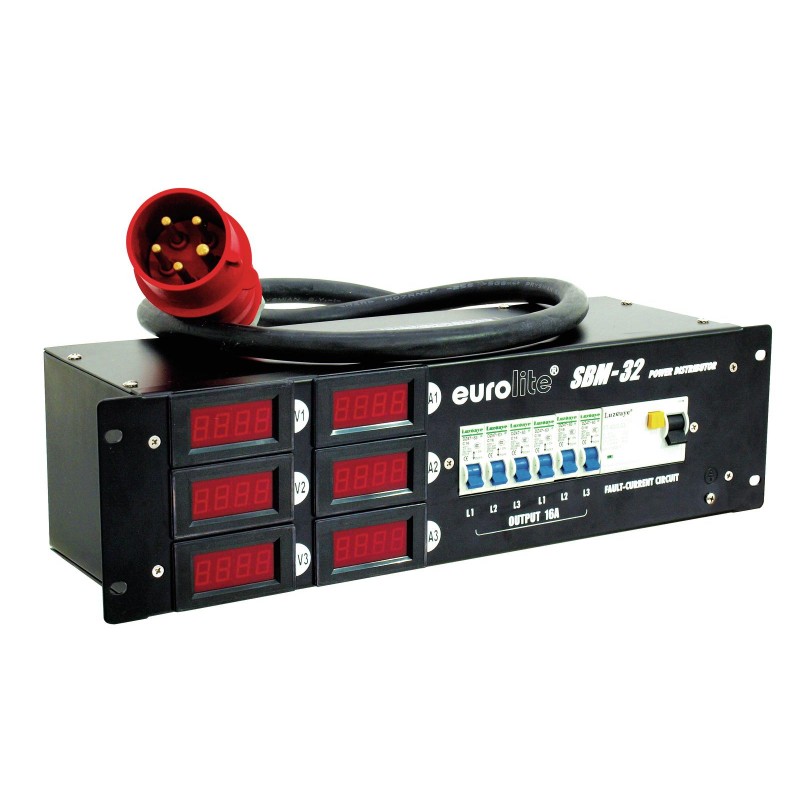

EUROLITE SBM-32 Power Distributor

451,99 €
Tasse escluse

Sconti sul volume

Quantità Prezzo unitario Salva
3 451,99 € 81,36 €
Quantità
Disponibile

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

EUROLITE SBM-32 Power Distributor
Codice: 30248400        codice Ean: 4026397529630        MARCA:  EUROLITE



Practical 32 A distributor in 483 mm housing (19")

  • Specially designed for larger distribution needs
  • 3 U necessary for installation
  • 32 A three phase current input via 5 x 6 mm² power cable and plug
  • The entire distributor is secured via 30 mA Residual Current Device (RCD)
  • Voltage and current display of every phase
  • 32 A three phase current output on the rearpanel
  • 6 safety sockets on the housing back (2 per phase)
  • Each safety socket feature fuse protection via 16 A automatic circuit breakers
  • With M6 earthing screw in order to ground a rigg if necessary
  • (19") 48.3 cm rack installation 3 U


Power supply:380-400V AC, 50Hz
Power output:1 x CEE 32A 5-pol (f) recessed mounting Bypass
6 x Safety contact (F), hinged lid mounting version fused
Protection:1 x fault-current circuit breaker (FI) 40A/0.03A 4-pol
6 x circuit breaker C 16A 1-pol
Power connection:Fixed CEE 32A 5-pin (M)
Display:Volts , amps
Housing design:(19") 48.3 cm rack installation 3 U
Dimension:Width: 48.3 cm
Depth: 23 cm
Height: 13.35 cm
Weight:6.05 kg


Hardware - Strom - Stromverteilung
Peso: 6.55
