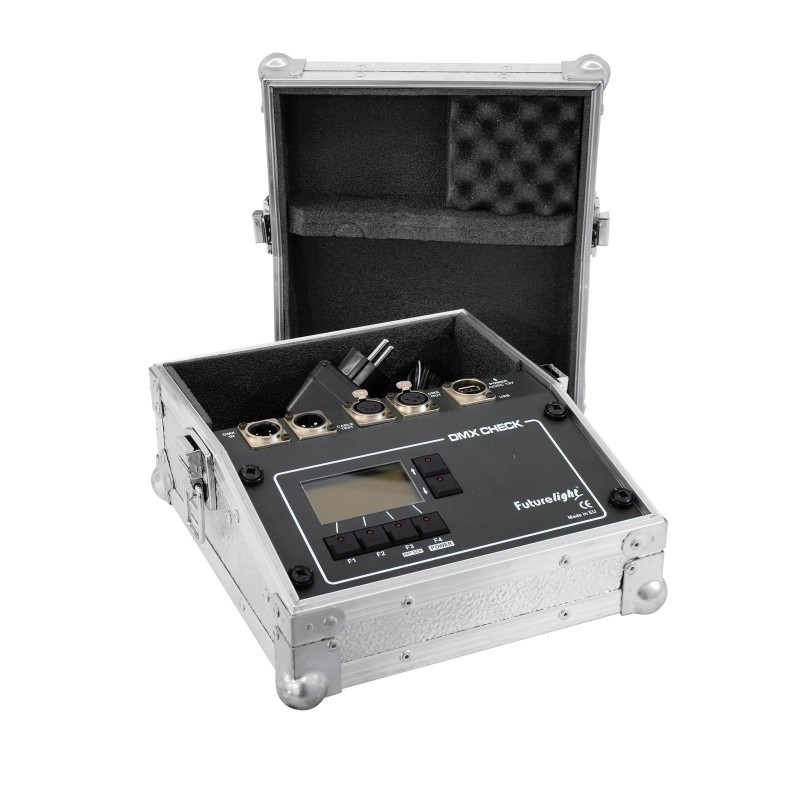

FUTURELIGHT DMX-Check, tester in case

Codice: 51834670 codice Ean: 4026397391190 MARCA: FUTURELIGHT

DMX512 Tester, Recorder, Repeater

The following can be tested: DMX input and output signal, XLR cable, pin connection
Exact data analysis and comparison with DMX standard
Output of exact error descriptions
Different DMX standards can be defined (1986, 1990, A, user defined)
USB port for memory back up, loading of DMX data and software updates (for USB pendrives up to 2 GB)
DMX recorder: DMX data can be saved on USP pendrive and played back
Operates on power unit or rechargeable battery
Built-in accumulators for mains independent operation (up to 6 hours)
The necessary power adapter is included
Delivery in a practical transport case
Can transmit up to 512 DMX channels
Made in Europe

Power supply:	230 V AC, 50 Hz
Power consumption:	20.00 W
DMX channels:	Output 512
DMX input:	1 x 3-pin XLR (M) mounting version 1 x 5-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version 1 x 5-pin XLR (F) mounting version
Available storage media:	USB devices max. 2GB
Dimension:	Width: 35 cm Depth: 25 cm Height: 13 cm
Weight:	4.20 kg
device
Battery pack type:	2 x lead 6 V, 1300 mAh,
Battery pack:	Battery operation up to 6h depending on program used
DMX connection:	5-pin and 3-pin XLR
Incoming DMX signal level:	-10 / +15V, 20mV-os sensibility
DMX digital level accuracy:	200 ns
