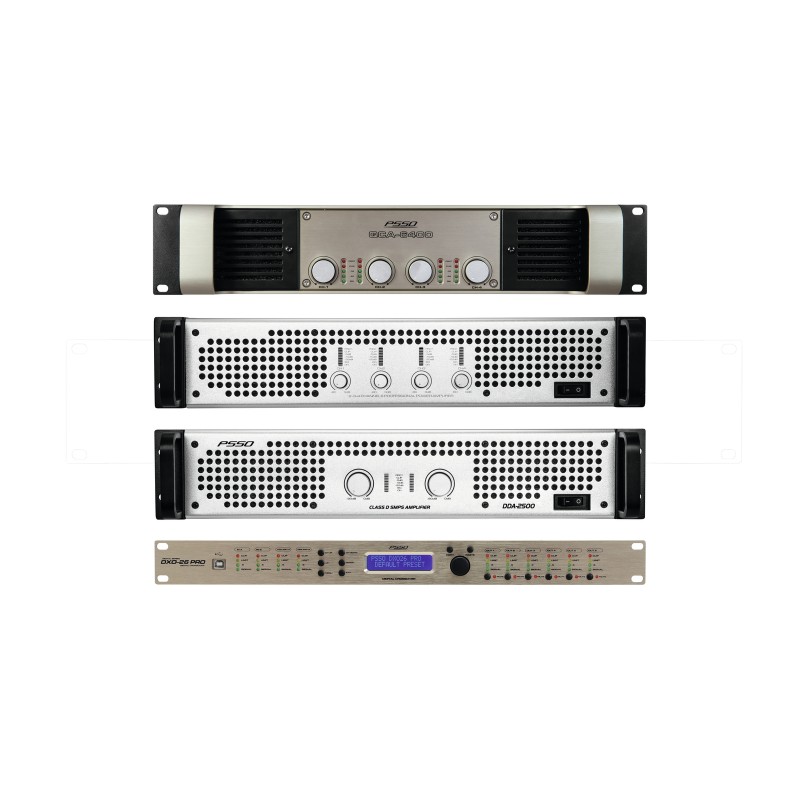

PSSO Amp Set MK2 for Line-Array M
Audio - Boxensysteme - Line Array
Peso: 0.0
Codice: 11041069 codice Ean: MARCA: PSSO
10451685 PSSO DDA-2500 Amplifier
Stereo PA amplifier with SMPS, 2 x 1250 W / 4 ohms
- Stereo PA amplifier with class D circuitry
- Low weight and height due to integrated switch mode power supply
- Reliable power amp with high impulse stability for a wide range of applications (e.g. compact PAs, multi-way PAs, concerts)
- Limiter and speaker switch-on delay
- 3 operating modes can be selected (stereo, parallel or bridged)
- 2 calibrated level controls for precise level adjustment
- Input sensitivity adjustable
- LED VU meter and LEDs for activated protective circuit (protect), overload (clip), and signal per channel
- Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
- Speaker outputs via lockable Speaker plugs and screw terminals
- Rugged steel chassis with aluminum front panel
- Air flow from front to rear
- The device is cooled by 2x temperature-controlled fan
- (19") 48.3 cm rack installation 2 U
10451695 PSSO QDA-4400 4-Channel Amplifier
PA amplifier with SMPS, 4 x 1100 W / 4 ohms, 4 x 650 W / 8 ohms
- 4-channel PA amplifier with class D circuitry
- 4 x 1100 W/4 ohms
- Low weight and height due to integrated switch mode power supply
- Reliable power amp with high impulse stability for a wide range of applications (e.g. compact PAs, multi-way PAs, international concerts)
- Speaker switch-on delay
- 3 operating modes can be selected (stereo, parallel or bridged)
- 4 level controls for precise level adjustment
- Input sensitivity adjustable
- LED VU meter and LEDs for activated protective circuit (protect), overload (clip), and signal per channel
- Complete protection set
- Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
- Speaker outputs via lockable Speaker plugs
- Rugged steel chassis with aluminum front panel
- Air flow from front to rear
- The device is cooled by 2x temperature-controlled fan
- (19") 48.3 cm rack installation 2 U
10451696 PSSO QCA-6400 4-Channel SMPS Amplifier
PA amplifier with SMPS, 4 x 1600 W / 2 ohms, 4 x 1400 W / 4 ohms
- 4-channel PA amplifier with class I circuitry
- 4 x 1400 W/4 ohms
- Low weight and height due to integrated switch mode power supply
- Reliable power amp with high impulse stability for a wide range of applications (e.g. compact PAs, multi-way PAs, international concerts)
- Speaker switch-on delay
- 3 operating modes can be selected (stereo, parallel or bridged)
- 4 level controls for precise level adjustment
- Input sensitivity adjustable
- LED VU meter and LEDs for activated protective circuit (protect), overload (clip), and signal per channel
- Complete protection set against short-circuit, overheat, clipping, overload, DC voltage and VHF signals
- Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
- Speaker outputs via lockable Speaker plugs
- Rugged steel chassis with aluminum front panel
- Rack installation with 2 units
- Neutrik Speakon outputs
- Air flow from front to rear
- The device is cooled by 2x temperature-controlled fan
- (19") 48.3 cm rack installation 2 U
10356362 PSSO DXO-26 PRO Digital Controller
Digital speaker management system with real-time network communication, 2 inputs and 6 outputs
- Digital network speaker management system with 64-bit processing
- Premium components ensure excellent sound-features
- Flexible routing configurations for all standard mono and stereo output operating modes
- 2 analog inputs and 1digital AES/EBU interface (XLR)
- 6 analog outputs (XLR)
- 10-band parametric EQ per input and output
- Parametric filters can be set as Bell, High Shelf, Low Shelf, Notch, Allpass
- Active crossover with Bessel, Butterworth and Linkwitz-Riley filter with slopes up to 24 dB/octave
- The intelligent software for PC and Mac allows convenient control with a computer
- Full configuration and real-time network communication via the built-in Ethernet interface
- Presets are easy to store, transfer and manage
- Up to 80 user presets storable in the device via software
- Control of all functions also possible via the controls at the front panel
- Alphanumeric LCD screen with 2 lines of 16 characters each
- Input sensitivity digitally adjustable
- Inputs and outputs with 4-digit VU meter
- Mute switch with LED indicator per output
- Up to 2000 ms signal delay adjustable for the inputs and outputs
- Output limiter with adjustable limits and automatic attack and release settings as overload protection for your amplifying system
- Switchable phase (180°)
- Lock function for protecting the program settings
- Rack installation, 1 U
- Windows XP, Vista, 7, 8, 10 and Mac OS X 10.5.8 and better
- Control your speaker systems more flexible than ever with the DXO Control app
- DXO Control for iPad supports all functions of the PC software and is available for free from the app store
- Digital signal processor
- The device can be connected via USB to the PC in connection with DXO Software; The device can be connected via RJ45 (F) mounting version to the PC in connection with DXO Software
The firmware can be updated via the PC connection - (19") 48.3 cm rack installation 1 U
30100150 OMNITRONIC Front Panel Z-19U-shaped, steel,black 1U
U-front panel in different sizes
- 1 mm steel, black, powder-coated
- Weight 465-1350 g (depending on the version)
- 1 U
30109192 ROADINGER Rack Profi KM 8U 55cm with wheels
PRO flightcase for 483 mm units (19")
- Profile rails with mounting facility for 483 mm units (19"), e.g. light PA amplifiers, power packs, additional equipment
- Stomped profile rails for cage nuts
- 2 removable covers (double-door version)
- High-quality workmanship with 9 mm multiplex birch wood, dark brown laminated
- Aluminum profile frames (30 mm) with rounded edges
- Three-leg, medium-sized steel ball corners
- 4 x recessed case handles with mounting dish and backing ring
- 4 butterfly lock
- 4 wheels with 2 brakes
- 4 x chrome case handles
- Available in different height units (1 U = 44 mm)
- Transport aid: With wheels
- 8 U
- Made in Europe
| Weight: | 54.90 kg |
| 10451685 PSSO DDA-2500 Amplifier | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 200 W 1/8 power |
| Output power: | 2 x 700 W RMS (8 ohms) 2 x 1250 W RMS (4 ohms) |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >100 dB |
| THD: | <0.15 % at 1 kHz |
| Power connection: | Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) |
| Cooling: | 2 x temperature-controlled fan , Air flow from front to rear |
| Impedance: | Input 10 kOhm , unbal. Input 20 kOhm , bal. |
| Gain: | 39.7 dB |
| Circuitry: | Class D |
| Slew rate: | >10 V/µs |
| Damping factor: | >500 |
| Control elements: | Power switch, level control per channel, mode switch (stereo/parallel/bridged), limiter selector, Input sensitivity switch |
| Controls: | Softstart; overheat; overload; short-circuit; limiter; VHF; DC voltage; progressive volume |
| Status LED: | Power, level meter, clip, protect |
| Connections: | Input: 2 x line via 3-pin XLR Output: 2 x line via 3-pin XLR Output: 2 x speakers via speaker built-in socket (f) |
| Input sensitivity: | 0.775 V; 1.0 V; 1.81 V , switchable; 32 dB; 37 dB; 39.3 dB , switchable |
| Housing design: | (19") 48.3 cm rack installation 2 U |
| Dimension: | Width: 48.3 cm Depth: 30.7 cm Height: 8.9 cm |
| Weight: | 6.25 kg |
| 10451695 PSSO QDA-4400 4-Channel Amplifier | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 830 W 1/8 power |
| Output power: | 4 x 650 W RMS (8 ohms) 4 x 1100 W RMS (4 ohms) 2 x 2000 W RMS bridged (8 ohms) |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >100 dB |
| THD: | <0.1 % at 1 kHz |
| Power connection: | Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) |
| Cooling: | 2 x temperature-controlled fan , Air flow from front to rear |
| Impedance: | Input 20 kOhm , bal. Input 10 kOhm , unbal. |
| Gain: | 39.9 dB |
| Circuitry: | Class D |
| Slew rate: | >10 V/µs |
| Damping factor: | >500 |
| Crosstalk: | >65 dB |
| Control elements: | Power switch, mode switch (stereo/parallel/bridged), level control per channel, Input sensitivity switch |
| Controls: | Softstart; overheat; overload; short-circuit; progressive volume; VHF; limiter |
| Status LED: | Power, level meter, clip, protect |
| Connections: | Input: 4 x line via 5-pin XLR Output: 4 x line via 5-pin XLR Output: 4 x speakers via speaker built-in socket (f) |
| Input sensitivity: | 0.775 V; 1.0 V; 1.81 V , switchable; 32 dB; 37 dB; 39.3 dB , switchable |
| Housing design: | (19") 48.3 cm rack installation 2 U |
| Dimension: | Width: 48.3 cm Depth: 46.1 cm Height: 8.9 cm |
| Weight: | 9.50 kg |
| 10451696 PSSO QCA-6400 4-Channel SMPS Amplifier | |
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 820 W 1/8 power |
| Output power: | 4 x 1600 W RMS (2 ohms) 4 x 1400 W RMS (4 ohms) 4 x 800 W RMS (8 ohms) 2 x 3200 W RMS bridged (4 ohms) 2 x 2800 W RMS bridged (8 ohms) |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >80 dB |
| THD: | <0.05 % at 1 kHz |
| Power connection: | Fixed Power supply cord with safety plug |
| Cooling: | 2 x temperature-controlled fan , Air flow from front to rear |
| Impedance: | Input 20 kOhm , bal. Input 10 kOhm , unbal. |
| Gain: | 40.3 dB/ 0.775 V 38 dB/ 1.0 V 35.1 dB/ 1.4 V |
| Circuitry: | Class I |
| Slew rate: | >10 V/µs |
| Damping factor: | >800 |
| Crosstalk: | >65 dB |
| Control elements: | Power switch, level control per channel, mode switch (stereo/parallel/bridged), Input sensitivity switch |
| Controls: | Overheat; overload; short-circuit; DC voltage; softstart; VHF |
| Status LED: | Power, level meter, clip, protect |
| Connections: | Input: 4 x line via 3-pin XLR Link: 4 x line via 3-pin XLR Output: 4 x speakers via speaker built-in socket (f) |
| Input sensitivity: | 0.775 V; 1.0 V; 1.4 V , switchable; 26 dB; 32 dB; 38 dB , switchable |
| Housing design: | (19") 48.3 cm rack installation 2 U |
| Dimension: | Width: 48.3 cm Depth: 44.5 cm Height: 8.9 cm |
| Weight: | 13.45 kg |
| 10356362 PSSO DXO-26 PRO Digital Controller | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 10.00 W |
| Frequency range: | 10 - 40000 Hz |
| THD: | <0.005 % at 1 kHz |
| Network connection: | Protocol: ethernet TCP/IP via 1x RJ45 (F) mounting version |
| DSP: | Digital signal processor |
| Power connection: | Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
| Crossover frequency: | 20-20000 Hz |
| Impedance: | Input 10 kOhm Input XLR (AES/EBU): 110 Ohm Output 50 Ohm |
| Gain: | Input: -50 dB to +12 dB Output: -50 dB to +12 dB |
| Filter: | Linkwitz-Riley; Butterworth; Bessel; 6db/oct; 12db/oct; 18db/oct; 24db/oct |
| Delay: | 0 - 2000 ms |
| Dynamic range: | Input: 118 dB Output: 114 dB |
| Sample rate: | 65 kHz |
| Connections: | Input: 2 x line via 3-pin XLR Output: 6 x line via 3-pin XLR |
| Max. level: | Input: +22 dBu Output: +12 dBu |
| USB port: | Typ B |
| PC connect: | DXO Software via USB; DXO Software via RJ45 (F) mounting version, firmware can be updated |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Dimension: | Width: 48.3 cm Depth: 22.3 cm Height: 4.45 cm |
| Weight: | 2.30 kg |
| 30100150 OMNITRONIC Front Panel Z-19U-shaped, steel,black 1U | |
| Diameter mounting holes: | 7 mm |
| Material thickness: | 1 mm |
| Mounting height: | Approx. 4.45 mm (1 U) |
| Housing design: | 1 U |
| Dimension: | Width: 48.3 cm Height: 4.45 cm |
| Weight: | 0.30 kg |
| 30109192 ROADINGER Rack Profi KM 8U 55cm with wheels | |
| Maximum load: | 100 kg |
| Material: | Birch multiplex, 9 mm |
| Color: | Black, laminated |
| Outer dimensions/corners approx.: | 65 mm |
| Mounting width: | 483 mm (ca. 19") |
| Mounting height: | Approx. 360 mm (8 U) |
| Mounting depth: | 550 mm |
| Housing design: | 8 U |
| Dimension: | Width: 53 cm Depth: 71 cm Height: 52 cm |
| Weight: | 23.10 kg |
