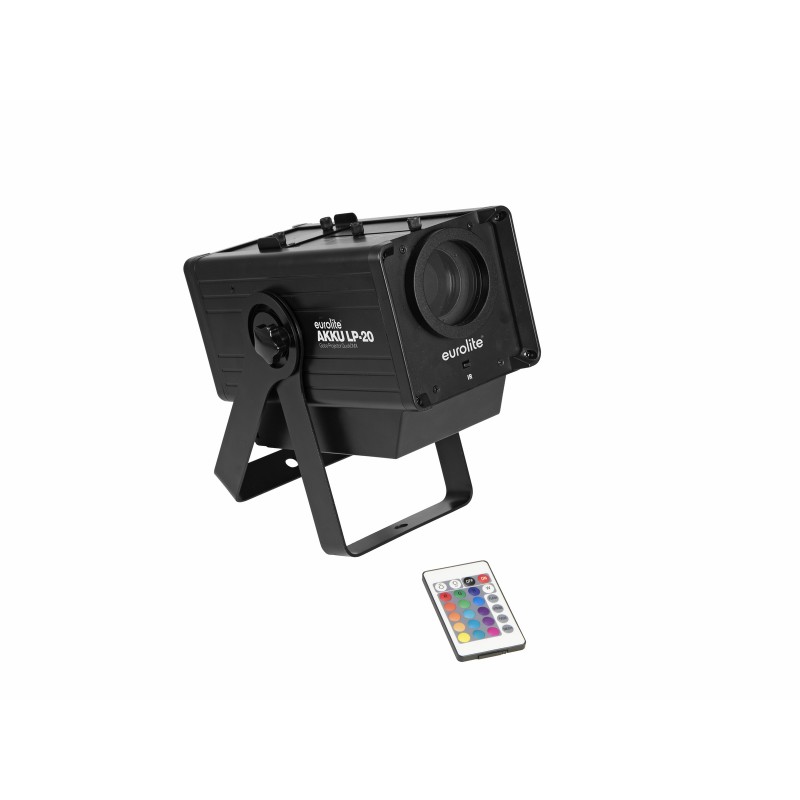

LED gobo projector with 20 W LED, QuickDMX, strobe, dimmer and gobo rotation
| Power supply: | 100-240 V AC, 50/60 Hz |
| IP classification: | IP20 |
| Battery pack type: | 1 x lithium ion 25.9 V, 7800 mAh, 202.02 Wh |
| Battery pack: | Battery operation up to 9h depending on program used Recharging time 4h |
| Lamp type: | LED lamp |
| LED: | 1 x COB (chip-on-board) 20 W CW (homogenous color mix) |
| Equipment: | Gobo wheel with rotating gobos |
| Gobos: | Outside diameter 27mm Image diameter 18mm |
| DMX channels: | 2; 3; 4 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Power connection: | Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) Battery/battery pack |
| Cooling: | Passive cooling by convection |
| Control: | QuickDMX built-in; IR remote control (provided); Light J Software |
| Beam angle: | 11 - 16° |
| Beam angle (1/2 peak): | 11 - 16° |
| Beam angle (1/10 peak): | 11 - 16° |
| Housing color: | Black |
| Carrier frequency: | 2.4 GHz |
| Theft protection: | Kensington lock |
| Dimension: | Width: 19.3 cm Depth: 25.6 cm Height: 28.7 cm |
| Weight: | 4.70 kg |
| Remote control | |
| Battery: | Button cell 3.0 V CR2032 lithium manganese built-in |
| Legal specifications | |
| Ecodesign regulation: | Yes |
| Special product: | Not designed for household room illumination |
| Purpose: | Show effect lighting |
