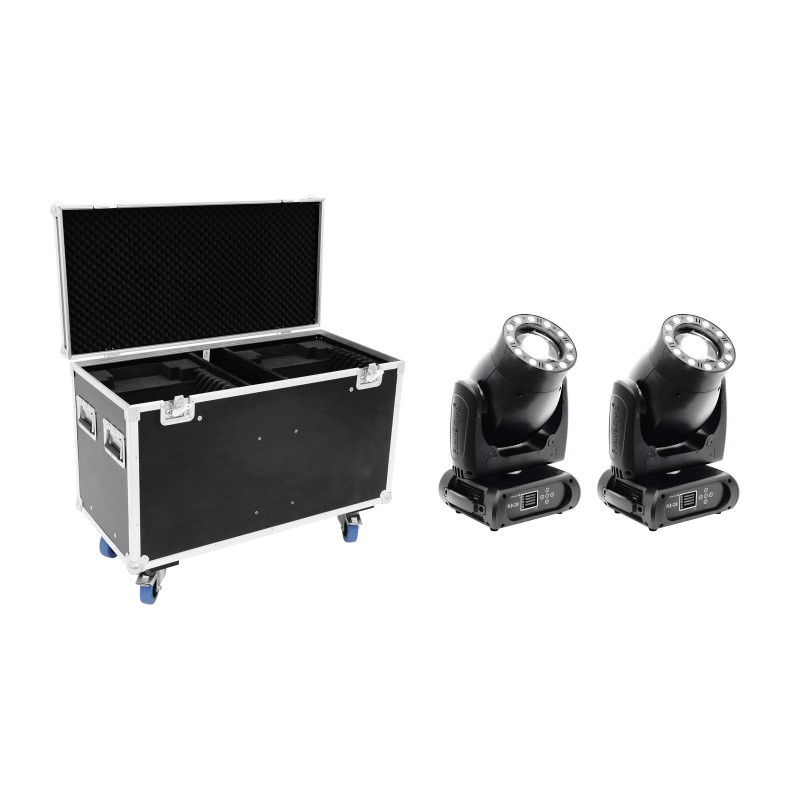

51838951 FUTURELIGHT PLB-230 Moving Head
High-Power Beam with Osram Sirius HRI 230 W lamp and LED ring with RGB color mixture
51836892 ROADINGER Flightcase 2x DMH-90/150/DMB-60/PLB-230
PRO flightcase for 2 x FUTURELIGHT DMH-90/DMH-150/DMB-60/PLB-230/EYE-15
| 51838951 FUTURELIGHT PLB-230 Moving Head | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 325.00 W |
| IP classification: | IP20 |
| Lamp type: | Discharge lamp |
| LED: | 12 x 3 W 3in1 TCL RGB |
| Max. TILT movement: | Exact positioning (16 bit resolution) 270° Auto position correction (feedback) |
| Max. PAN movement: | Exact positioning (16 bit resolution) 540° Positioning switchable to 630° Auto position correction (feedback) |
| Flash rate: | 0 - 20 Hz |
| Equipment: | Gobo wheel with rotating gobos |
| Color generation: | Color wheel 14 dichroic filters plus open |
| Gobos: | Gobo wheel with rotating gobos, 8 gobos and open Outside diameter 14mm Image diameter 6mm Shake effect Gobos changeable Slot-in gobo system for exchanging gobos without tools |
| DMX channels: | 17; 19; 21; 24 |
| DMX input: | 1 x 3-pin XLR (M) mounting version 1 x 5-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version 1 x 5-pin XLR (F) mounting version |
| Power connection: | Mains input PowerCON (blue), mounting version Power supply cord with safety plug |
| Cooling: | Temperature-controlled fan |
| Control: | RDM; DMX; Stand-alone; W-DMX by wireless solution built-in; Sound to light via Microphone; EUROLITE LED PC-Control 512 software |
| Beam angle: | 1.3° |
| Beam angle (1/2 peak): | 1.3° |
| Housing color: | Black |
| Carrier frequency: | 2.4 GHz |
| Dimension: | Width: 25 cm Depth: 42.4 cm Height: 34.3 cm |
| Weight: | 16.20 kg |
| Legal specifications | |
| Ecodesign regulation: | Yes |
| Special product: | Not designed for household room illumination |
| Purpose: | Show effect lighting |
| Lamp: | 1 x conventional with EEI C included. |
| 51836892 ROADINGER Flightcase 2x DMH-90/150/DMB-60/PLB-230 | |
| Maximum load: | 100 kg |
| Material: | Birch multiplex, 7 mm |
| Color: | Dark brown, laminated |
| Dimension: | Width: 96 cm Depth: 47 cm Height: 72 cm |
| Weight: | 25.90 kg |
