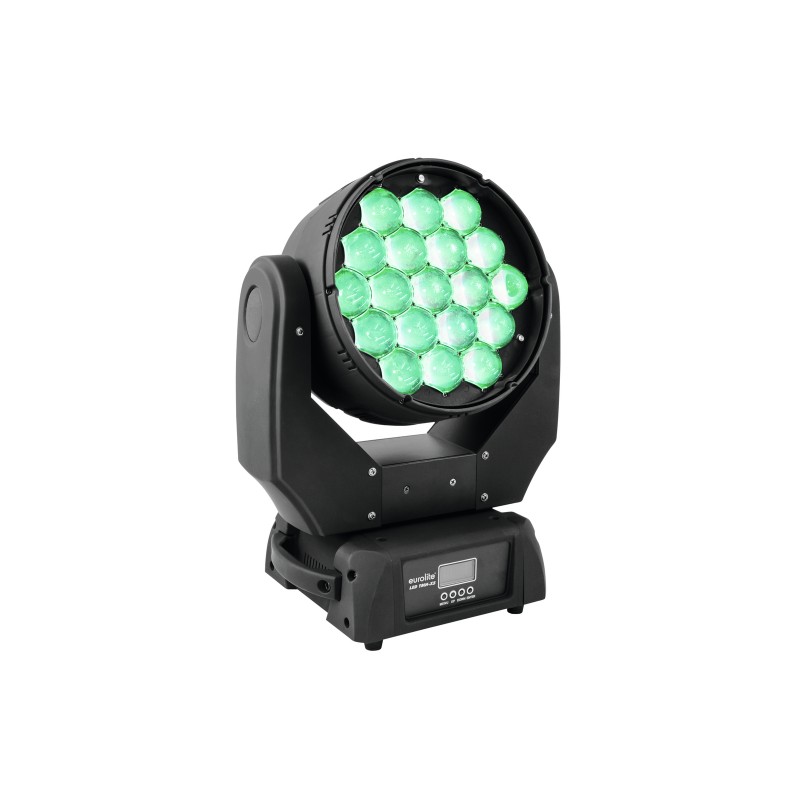

EUROLITE LED TMH-X5 Moving Head Wash Zoom

Codice: 51785990 codice Ean: 4026397550788 MARCA: EUROLITE

Washlight with 12 W COB LEDs, RGBW color mixing and large zoom range

Equipped with 19 x 12 W COB LED with RGBW colors, distributed in 3 segments
Each segment can be controlled individually via DMX
Positioning within 540° PAN and 270° TILT
Stepless RGBW color mixture
Dimmer
Dimmer speed (step response) adjustable
Motorized zoom with 1-55° beam angle
Color presets
Different patterns and movements can be selected via DMX
Strobe effect with adjustable speed
Automatic position correction
Exact positioning via 16 bit PAN/TILT movement resolution
DMX-controlled operation or stand-alone operation with Master/Slave function
Control board with LCD display for adjusting the DMX-starting address, PAN/TILT Reverse, Reset
Neutrik PowerCon terminals for power linking up to 8 units
Switch-mode power supply for operation between 100 and 240 volts
LED: 19 x high-power 12 W 4in1 QCL RGBW (homogenous color mix)
Can be operated in 20; 28 CH mode
The device is cooled by cooling fan
Controlling by DMX; Stand-alone; Sound to light via Microphone
Is in Light J Software; EUROLITE LED PC-Control 512 software already preprogrammed
Flicker-free projection

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	220 W
IP classification:	IP20
Power output:	1 x PowerCON (gray)
Lamp type:	LED lamp
LED:	19 x high-power 12 W 4in1 QCL RGBW (homogenous color mix)
Max. TILT movement:	Exact positioning (16 bit resolution) 270° Auto position correction (feedback)
Max. PAN movement:	Exact positioning (16 bit resolution) 540° Auto position correction (feedback)
Equipment:	Zoom motor-driven
DMX channels:	20; 28
DMX input:	1 x 3-pin XLR (M) mounting version 1 x 5-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version 1 x 5-pin XLR (F) mounting version
Power connection:	Mains input PowerCON (blue), mounting version Power supply cord with safety plug (provided)
Cooling:	Cooling fan
Control:	DMX; Stand-alone; Sound to light via Microphone; Light J Software; EUROLITE LED PC-Control 512 software
Beam angle:	1 - 55°
Beam angle (1/2 peak):	1 - 28°
Beam angle (1/10 peak):	6 - 55°
Illuminance in Lux (lx):	Narrow R red 3m: 2753 lx, 6m: 699 lx Narrow G green 3m: 4727 lx, 6m: 1188 lx Narrow B blue 3m: 1159 lx, 6m: 300 lx Narrow CW 3m: 6480 lx, 6m: 1678 lx Narrow all 3m: 11980 lx, 6m: 3074 lx
Housing color:	Black
Dimension:	Width: 32 cm Depth: 22 cm Height: 44 cm
Weight:	11.10 kg
Legal specifications
Ecodesign regulation:	Yes
Special product:	Not designed for household room illumination
Purpose:	Show effect lighting
