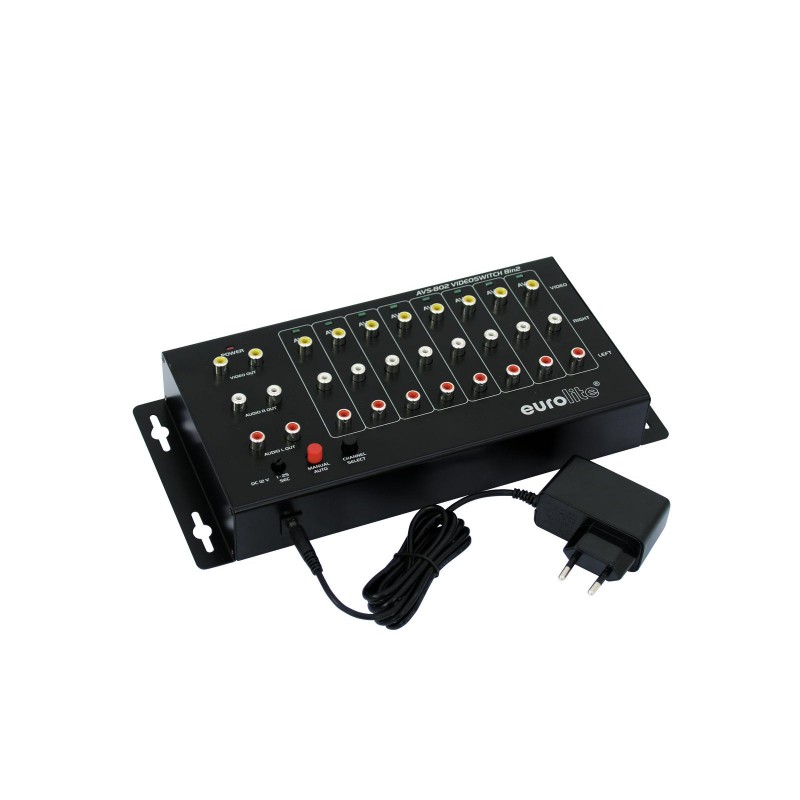

EUROLITE AVS-802 Video switch 8in2
Codice: 81013102        codice Ean: 4026397306637        MARCA:  EUROLITE



8-way AV switch

  • For switching eight AV sources (audio, composite video and s-video television signals) to up to two television monitors
  • Typical applications are security or information systems in shopping centres, schools, hotels, railway stations, airports etc.
  • 8 inputs (RCA), manually or automatically switchable
  • Automatic switching time adjustable from 1 to 25 seconds
  • 2 outputs (RCA)
  • Simultaneous recording to one or two video or DVD recorders
  • A stereo system can be connected via the second output
  • 12 V power supply via power unit included in the delivery


Power supply:100-240 V AC, 50/60 Hz
Power consumption:6.00 W
Frequency range:20 - 100 Hz
S/N ratio:>100 dB
THD:<0.05 % at 1 kHz
Dimension:Width: 28.2 cm
Depth: 12.8 cm
Height: 5 cm
Weight:0.94 kg
Video:
8 x inputs:1 Vpp/ 75 ohms, composite RCA
2 x outputs:1 Vpp/ 75 ohms, composite RCA
Gain:2 V, 1 V (terminated)/ 75 ohms
Return loss:>18 dB
Video bandwidth:>100 MHz
Audio:
8 x inputs:22 kohms, stereo RCA
2 x output:1 kohms, stereo RCA
Gain:nominal 0 dB
Channel separation:>75 dB
