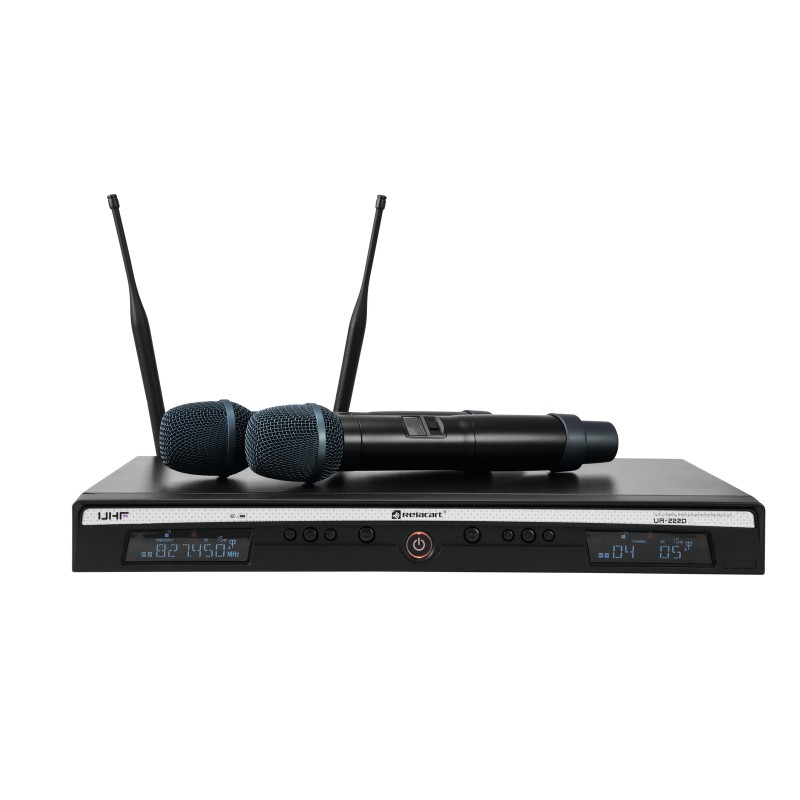

RELACART UR-222D 2-Channel UHF System
Audio - Mikrofone - Drahtlose Mikrofonanlagen
Peso: 3.6
Codice: 13055192 codice Ean: 4026397602579 MARCA: RELACART
True diversity wireless microphone system with two channels, 823-832 MHz + 863-865 MHz
13055189 RELACART UR-222D 2-Channel UHF Receiver
2-channel multifrequency wireless receiver with true diversity reception
- 2-channel multifrequency wireless receiver with high-quality true diversity reception
- 2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
- 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
- Parallel operation of up to 9 systems is possible without any interference
- Pilot tone technology (PLL) for interference-free reception
- Automatic frequency scan (AFS) finds interface-free channels
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- LCD for battery status of the microphone, antenna A/B, RF reception level, AF audio level and frequency
- XLR and 6.3 mm jack output
- 2 detachable BNC antennas allow for use with the R-14D antenna divider
- Delivery includes practical transport bag with jack cable and power unit
- Durable metal housing
- 483 mm rack installation possible with supplied mounting brackets
- Matching transmitters optionally available: hand-held microphone (UH-222D) and pocket transmitter (UT-222)
- License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
- Use a operating range up to 80m with line of sight
- Desktop console housing 1 U; (19") 48.3 cm rack installation (provided)
13055206 RELACART UH-222D Microphone
Hand-held microphone with PLL multifrequency transmitter
- Dynamic hand-held microphone with UHF pilot tone technology (PLL)
- Ergonomic aluminum alloy housing, applicable for touring
- Matches receivers UR-222S and UR-260D
- 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
- Infrared interface for easy and error-free synchronization with the receiver via infrared signal
- OLED display for battery status and frequency
- RF output power Hi/Low adjustable
- Gain level Hi/Mid/Low adjustable
- Directly compatible with Shure's SM58 capsule
- License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
- Polar pattern: Cardioid
- Use a operating range up to 80m
| Type: | Wireless set |
| Weight: | 2.74 kg |
| 13055189 RELACART UR-222D 2-Channel UHF Receiver | |
| Type: | Receiver |
| Power supply: | 100-240 V AC, 50/60 Hz 12 V DC 1 A |
| Power consumption: | 6 W |
| Number of channels: | 2 |
| Frequency range: | 45 - 18000 Hz |
| S/N ratio: | >105 dB |
| Power connection: | Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided) |
| Control elements: | Navigation keys, menü, groundlift selector |
| Connections: | Output: 2 x line via 3-pin XLR Output: 2 x line via 6.3 mm plug (unbal.) 2 x antenna via BNC (F) 8 V |
| Frequency band: | UHF 863 - 865 MHz; UHF 823 - 832 MHz |
| Frequency selection: | 90 Switchable frequencys In 10 groups with up to 10 preset frequencies each |
| Modulation: | FM |
| Frequency stability: | ± 0.0005 % |
| Range: | 80 m with line of sight |
| Switching bandwidth: | 11 MHz |
| Switch: | On/off switch |
| Diversity: | Switching diversity |
| Material: | Metal |
| Housing design: | Desktop console housing 1 U (19") 48.3 cm rack installation (provided) |
| Dimension: | Width: 41 cm Depth: 26 cm Height: 4.6 cm |
| Weight: | 2.17 kg |
| 13055206 RELACART UH-222D Microphone | |
| Type: | Transmitter |
| Power supply: | 3 V DC |
| Capsule type: | Dynamic |
| Polar pattern: | Cardioid |
| Battery: | 2 x Mignon (AA) (not included) |
| Frequency range: | 45 - 18000 Hz |
| Control elements: | Gain-switch (high-mid-low); Transmitter power switch (high-low) |
| Frequency band: | UHF 863 - 865 MHz; UHF 823 - 832 MHz |
| Frequency selection: | 90 Switchable frequencys In 10 groups with up to 10 preset frequencies each |
| Modulation: | FM |
| RF power output: | 10 mW |
| Range: | 80 m |
| Switching bandwidth: | 11 MHz |
| Switch: | On/off/mute switch |
| Material: | Aluminum |
| Dimension: | Length: 26 cm Diameter: Ø 5.4 cm |
| Weight: | 0.28 kg |
