EUROLITE Quick Link Type A-50

Codice: 50301642        codice Ean: 4026397380989        MARCA:  EUROLITE

EUROLITE quick linksThe EUROLITE quick links comply with the current regulation of the German professional insurance association as summed up in BGI 810-3:2007-03 Loads above persons. The quick links are constructed in accordance with the German standard DIN 56927:2009-03.The quick links are manufactured by a renowned German supplier and are tested by the LGA, an independent and accredited testing institute. The breaking load testified by the LGA is documented in the test report according to DIN EN 10204 required by the German professional insurance association.Clearly, every user can secure loads above persons with these quick links in all areas where the BGV C1 is required.

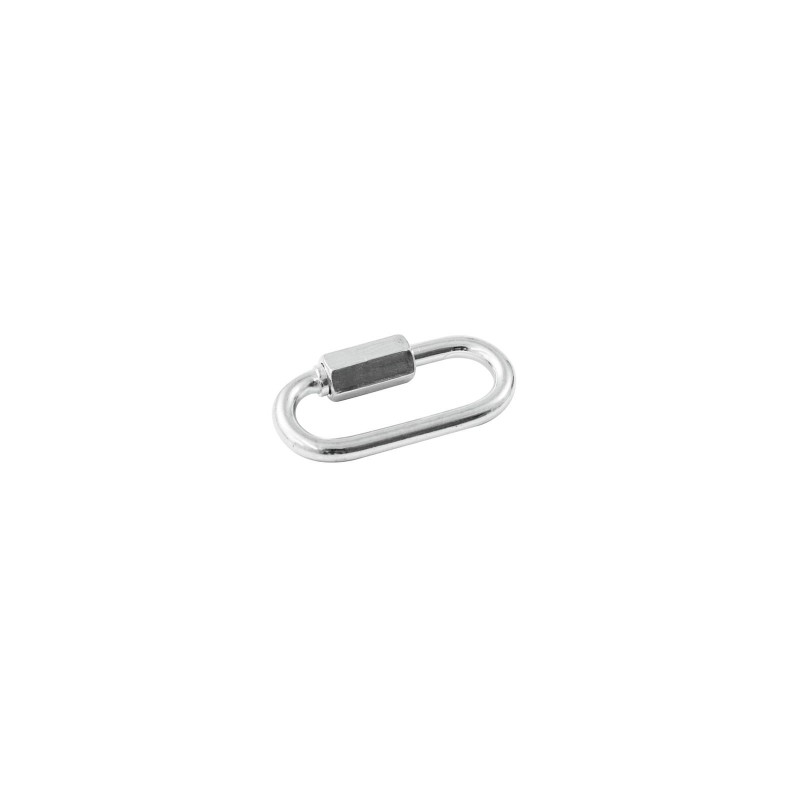

Quick link

• Form A (short)
• Galvanized
• Identification number: 50
• Stamp: DIN 56927 A 50
• Test report according to DIN EN 10204 as download

Maximum load WLL (5-fold):	100 kg
Standard:	DIN 56927:2009-03,
Shape:	A - small opening
Opening:	0-5 mm
Dimension:	Length: 29 mm Width: 35 mm Depth: 19 mm Diameter: Ø 3.5 mm
Weight:	0.01 kg

Hardware - Stative e Hardware - Anschlagmaterialien
Peso: 0.01
