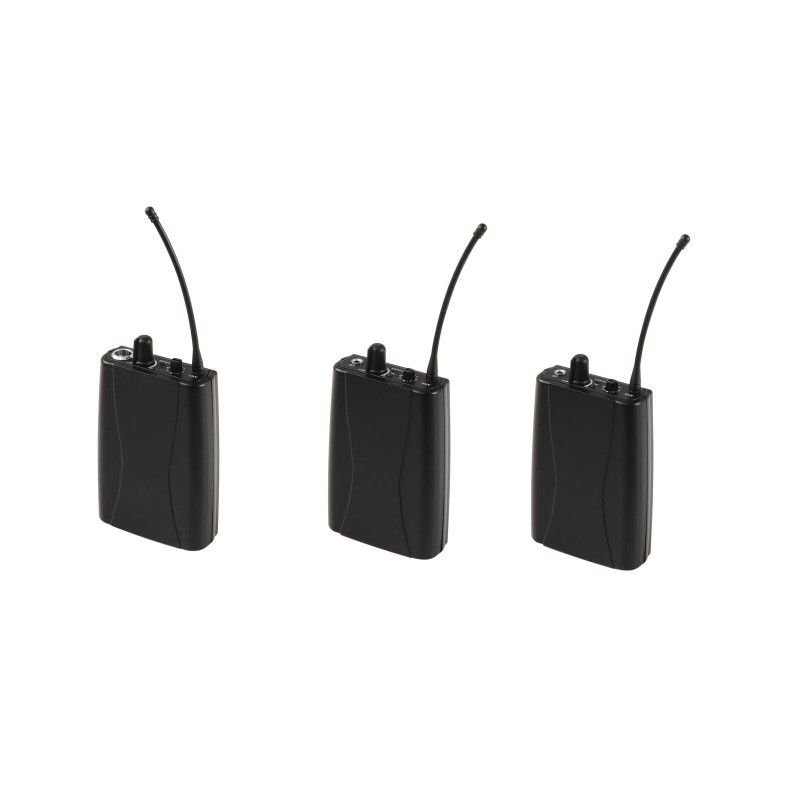

OMNITRONIC Set WMT-1M UHF Transmitter + 2x WMR-1M UHF Receiver

143,99 €

Tasse escluse

Sconti sul volume

Quantità	Prezzo unitario	Salva
3	143,99 €	25,92 €

Quantità

Disponibile

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

OMNITRONIC Set WMT-1M UHF Transmitter + 2x WMR-1M UHF Receiver

Codice: 20000171 codice Ean: MARCA: OMNITRONIC

Wireless mono audio transmission system, 823-832 MHz

13072230 OMNITRONIC WMT-1M UHF Transmitter, mono

Wireless mono audio transmission system, 823-832 MHz

Wireless audio transmission system with UHF PLL technology
For wireless transmission of audio line and microphone signals with one transmitter and one or more receivers
Duplex gap 823-832 MHz
Parallel use of up to 4 transmitters possible
Compatible with MOM-10BT4 system
16 channels selectable
Audio line input (3.5 mm jack) and microphone input (mini XLR)
Volume level control
Operation via 2 batteries or rechargeable batteries size AA
Built-in charging function via micro USB port with LED indicator
Supports operation and simultaneous charging
Robust metal fixing clip
Incl. USB charging cable and 3.5 mm audio cable
License-free and approved in large parts of the EU
Use a operating range up to 50m

13072231 OMNITRONIC WMR-1M UHF-Receiver, mono

Wireless mono audio transmission system, 823-832 MHz

Wireless audio transmission system with UHF PLL technology
For wireless transmission of audio line and microphone signals with one transmitter and one or more receivers
Duplex gap 823-832 MHz
Parallel use of up to 4 transmitters possible
Compatible with MOM-10BT4 system
16 channels selectable
Audio line output and earphone connection via 3.5 mm jack
Volume level control
Operation via 2 batteries or rechargeable batteries size AA
Built-in charging function via micro USB port with LED indicator
Supports operation and simultaneous charging
Robust metal fixing clip
Incl. USB charging cable and 3.5 mm audio cable
License-free and approved in large parts of the EU
Use a operating range up to 50m

Weight:	0.62 kg
13072230 OMNITRONIC WMT-1M UHF Transmitter, mono
Power supply:	5 V DC 3 V DC
Battery:	2 x Mignon (AA) included
S/N ratio:	>90 dB
Power connection:	Mains input Micro USB (F) mounting version included Battery/battery pack
Control elements:	Power switch, level control, frequency selector switch
Status LED:	Power
Connections:	Input: 1 x Microphone via Mini XLR (M) 3-pin mounting version 1 V Input: 1 x AUX via 3.5 mm jack (stereo) 3.5 V
Frequency band:	UHF 823 - 832 MHz
Frequency selection:	16 Switchable frequencys
Pilot frequency:	32.768 khz
Modulation:	FM
RF power output:	10 mW
Frequency stability:	± 0.01 %
Range:	50 m
Switch:	On/off switch
Material:	Plastic
Color:	Black
Dimension:	Width: 6.7 cm Depth: 3.0 cm Height: 11.2 cm
Weight:	0.20 kg
13072231 OMNITRONIC WMR-1M UHF-Receiver, mono
Power supply:	5 V DC 3 V DC
Battery:	2 x Mignon (AA) included
S/N ratio:	>80 dB
Power connection:	Mains input Micro USB (F) mounting version included Battery/battery pack
Connector type:	3.5 mm jack (mono) mounting version
Control elements:	Level control, power switch, frequency selector switch
Status LED:	Signal, power
Connections:	Output: 1 x line via 3.5 mm jack (mono) mounting version 1 V Output: 1 x headphones via 3.5 mm jack (stereo) mounting version
Frequency band:	UHF 823 - 832 MHz
Frequency selection:	16 Switchable frequencys
Pilot frequency:	32.768 khz
Modulation:	FM
Frequency stability:	± 0.01 %
Range:	50 m
Switch:	On/off switch
Material:	Plastic
Color:	Black
Dimension:	Width: 6.7 cm Depth: 3.0 cm Height: 11.2 cm
Weight:	0.21 kg
