80503260 / EUROLITE LSD-20 MK2 (H)2.56m x (W)1.28m

7.158,99 €

Tasse escluse

Sconti sul volume

Quantità	Prezzo unitario	Salva
3	7.158,99 €	1.288,62 €

Quantità

Disponibile

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

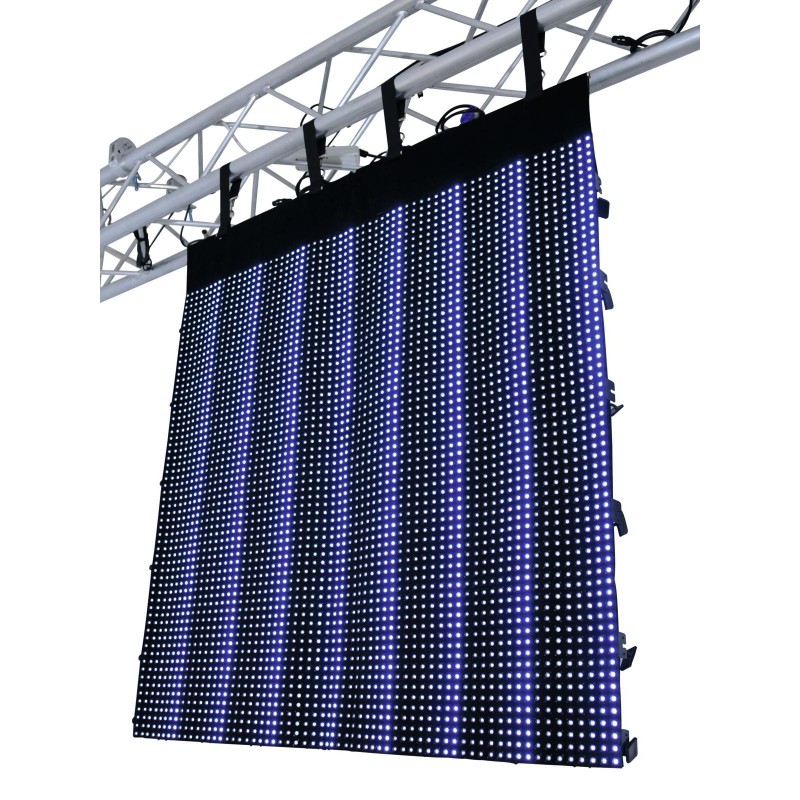

EUROLITE LSD-20 MK2 (H)2.56m x (W)1.28m

Codice: 80503260 codice Ean: 4026397459814 MARCA: EUROLITE

LED soft displays

Flexible displays with tricolor RGB LEDs (type SMD 5050) for bright and colorful projection of videos and graphics
Improved version with even brighter LEDs and new angled connectors
Modular display concept allows the build-up of large areas, ideal for outdoor use with large viewing distances
Bendable and foldable PVC material suitable for various shapes, e.g. columns, circles, angles
Fast and uncomplicated installation, indoor and outdoor (IP44)
Truss suspension via built-in belts
Water-repellent and flame-resistant
Low weight and small volume for convenient transport
Easy maintenance - LEDs can be replaced without difficulty
Controllable via optional network components and PC software
All-in-one control system T9 (80503301): network interface and software LED Show T9 - ideal system for mobile use with notebooks with 1-gigabit NIC
Control system LED studio: receiver interface (80503311), PCI sending card and software LED Studio (80503130)
Recommended media software: MADRIX
Switch-mode power supply for operation between 100 and 240 volts
Power output for passing on the power supply
Available in different sizes and pixel pitches
Custom sizes available upon request (in 0.32 m units)
LED: 8192 x SMD 5050 3in1 TCL RGB (homogenous color mix)

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	68.00 W
IP classification:	IP44
LED:	8192 x SMD 5050 3in1 TCL RGB (homogenous color mix)
Beam angle (1/2 peak):	110°
Screen:	Max. 64x124 px Pixel pitch 20 mm Pixeldensity 2500/m² Brightness 3600cd/m²
Lamp life:	100000 h
Dimension:	Width: 128 cm Height: 256 cm
Weight:	31.72 kg
Display port:	DVI/RJ45
Display mode:	synchronous to video source
Drive mode:	1/8 scan
Screen resolution:	max. 1280 x 1024 (LED Studio)
	max. 1024 x 896 (LED Show T9)
Frame rate:	60 Hz
Data refresh rate:	600 Hz
Colors:	16.7 million (R 256, G 256, B 256)
Operating temperature:	-10 to 45 °C
Humidity:	10 to 90 %
Legal specifications
Ecodesign regulation:	Yes
Special product:	Not designed for household room illumination
Purpose:	Show effect lighting
