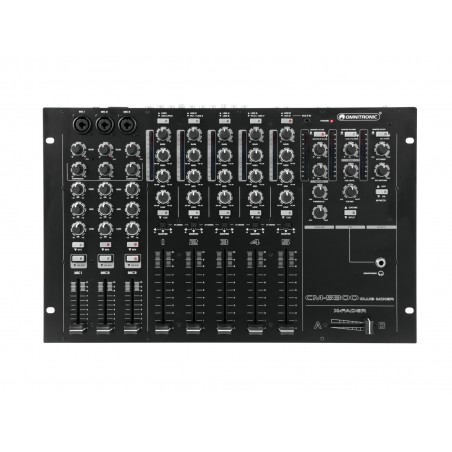

OMNITRONIC CM-5300 Club Mixer

Codice: 10006950        codice Ean: 4026397573039        MARCA:  OMNITRONIC

The CM-5300 is a high-grade stereo mixer with an extensive feature set for clubs and numerous mobile PA applications. The 3 microphone channels have a one-knob compressor, adjustable talkover function and a 3-band EQ. the 5 stereo channels come with gain controls, individual VU meters, 3-band kill EQs, 100mm dual-rail faders and assignable crossfader. Channel 1 can be used for FOH signals, channel 6 features a 3.5mm AUX input. The stereo and mono output sections have their own level meters, trimmers for adjusting the maximum output level and electronically balanced XLR connectors. In addition, a subwoofer output with built-in active crossover is provided. The mixer can be used as a table-top unit or installed in a rack.

Professional 5-channel club mixer

• High-grade stereo mixer for clubs and numerous mobile PA applications
• 5 stereo input channels with gain control, 3-band kill EQ (+12/ -26 dB) and 10-digit LED level meter
• Front panel aux input
• Rear stereo input FOH for stage mixers
• Smooth dual-rail channel input faders (60 mm/100 mm)
• 3 microphone input channels with front combo connector
• Gain control, peak LED, 3-band EQ and on air switch per microphone channel
• One-knob compressor per microphone channel
• 2-parameter adjustable auto talkover for automatic music level reduction when microphone is used
• Fully assignable smooth dual-rail crossfader (45 mm)
• Master section with two separately controllable stereo outputs, output 2 switchable to mono
• 10-digit stereo LED level meter, switchable between both master outputs
• Balanced XLR and unbalanced RCA main outputs
• Additional mono zone output (with switchable 80Hz HPF) which can be routed to the master bus or channel 5
• 10-digit LED level meter for the zone output
• Mono subwoofer output with integrated active crossover (frequency/level adjustable)
• All outputs with rear-side maximum level setting controls
• Adjustable effects send/return path, assignable to mic or master bus
• PFL section with PFL/master mix control and cue mix/split option
• Record output, independent of the master
• Rack installation, 7 U
• (19") 48.3 cm rack installation 7 U

Power supply:	115/230 V AC, 50/60 Hz
Power consumption:	25 W
Frequency range:	20 - 20000 Hz
S/N ratio:	>82 dB line
THD:	Line <0.05 % at 1 kHz
Power connection:	Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Control elements:	Cue mix split function, power switch, Crossfader, regular talk over, FX send/returne control
Status LED:	Power, chanal level meter, switchable master level meter, CUE, chanal source; peak, ON AIR, Routing
Connections:	Input: 3 x Microphone via 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: 6 x line via stereo RCA Input: 2 x line/phono via stereo RCA Input: 2 x AUX via 6,3-mm-jack (bal.) Input: 1 x AUX via 3.5 mm jack (stereo) mounting version Input: 1 x FX via 6.3 mm jack socket (stereo) mounting version Output: 4 x master via 3-pin XLR Output: 2 x master via stereo RCA Output: 1 x zones via 3-pin XLR Output: 1 x rec. via stereo RCA Output: 1 x Subwoofer via 3-pin XLR Output: 1 x FX via 6.3 mm jack socket (stereo) mounting version Output: 1 x headphones via 3.5 mm jack (stereo) mounting version
Chanals:	Input chanel: 2 x stereo with Line-AUX switch via RCA or jack plug, channel control via 100mm fader, 3-band tone control EQ, gain control, CUE switch, Crossfader selector switch, Input chanel: 2 x stereo with Line-Line/Phono switch via RCA, channel control via 100mm fader, 3-band tone control EQ, gain control, CUE switch, Crossfader selector switch, Input chanel: 1 x stereo with Line-line switch via RCA, channel control via 100mm fader, 3-band tone control EQ, gain control, CUE switch, Crossfader selector switch, Microphon chanal: 3 x mono via 3-pin XLR/6.35mm jack (F) combination socket (mounting version), channel control via 60mm fader, 3-band tone control EQ, gain control, adjustable single-knob compressor, ON AIR switch, FX routing switch Master output: 1 x stereo via XLR or RCA, channel control via Rotary knob, Level attenuator, Master output: 1 x mono + stereo via RCA or jack plug, channel control via Rotary knob, Level attenuator, Zone output: 1 x mono via XLR, channel control via Rotary knob, source selector, Level attenuator, low cut switch, Subwoofer output: 1 x mono via XLR, Level attenuator, hi-cut control, Headphones output: 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary knob, Cue mix split function,
Housing design:	(19") 48.3 cm rack installation 7 U
Dimension:	Width: 48.3 cm Depth: 10.6 cm Height: 32.8 cm
Weight:	6.00 kg

Audio - Audiomixer - Tabletop Mixer
Peso: 8.0
